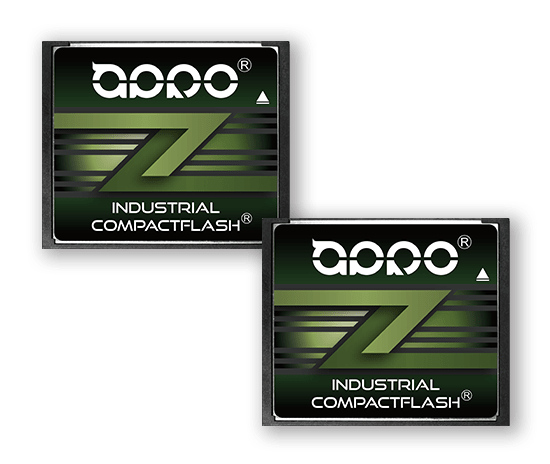

Series HERMIT-A
Capacity 16MB~4GB
Form-Factor CF Card Type I
Compatibility CFA 3.0 and ATA/ATAPI-6
Data transfer rate PIO 0~6, MWDMA 0~2, UDMA 0~4
Sequential read (Max.) 36.4 MB/sec
Sequential write (Max.) 26.5 MB/sec
Operating temp. (STD/IND or WIDE) S : 0˚C~+70˚C/
I : -40˚C~+85˚C
Power requirement +5V ± 10% / + 3.3V ± 10%
Wear-leveling Static
TBW Up to 210.9 TBW at 4GB
Erase counts 60,000
Weight (Max.) Plastic : 12g
Dimension (WxLxH,mm) 42.8 x 36.4 x 3.3
Conformal coating Optional
Warranty (Std./Ind.) 3/5 years or within 60,000 erasing counts
Series HERMIT-A
Capacity 16MB~4GB
Form-Factor CF Card Type I
Compatibility CFA 3.0 and ATA/ATAPI-6
Data transfer rate PIO 0~6, MWDMA 0~2, UDMA 0~4
Sequential read (Max.) 36.4 MB/sec
Sequential write (Max.) 26.5 MB/sec
Operating temp. (STD/IND or WIDE) S : 0˚C~+70˚C/
I : -40˚C~+85˚C
Power requirement +5V ± 10% / + 3.3V ± 10%
Wear-leveling Static
TBW Up to 210.9 TBW at 4GB
Erase counts 60,000
Weight (Max.) Plastic : 12g
Dimension (WxLxH,mm) 42.8 x 36.4 x 3.3
Conformal coating Optional
Warranty (Std./Ind.) 3/5 years or within 60,000 erasing counts
Series HERMIT-A
