| Flash Type | 3D-NAND aSLC |
|---|---|
| Flash Process | Kioxia BiCS5 aSLC mode |
| Series | PHANES-UA |

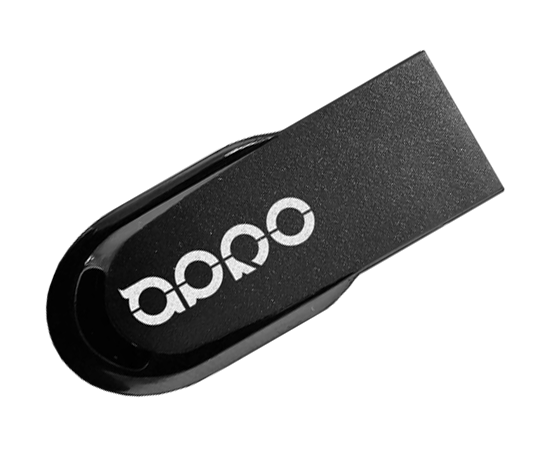

| Picture |  |
| Capacity | 1GB~16GB |
| Form-Factor | Pen drive |
| Compatibility | USB 3.2 Supper speed |
| Data transfer rate | Supper speed up to 5Gbit/second |
| Sequential read (Max.) | 248 MB/sec |
| Sequential write (Max.) | 114 MB/sec |
| Operating temp. (STD/IND or WIDE) |
S : 0˚C~+70˚C |
| OS supported | Windows series, MAC OS X O.S., Linux, VxWorks and DOS |
| Power requirement | 5V ± 10% via USB port |
| Wear-leveling | Static/Dynamic |
| TBW | TBC |
| Erase counts | 30,000 |
| Weight (Max.) | 1.6g |
| Dimension (WxLxH,mm) | 34.6 mm x 12.4 mm x 4.7 mm |
| Conformal coating | Optional |
| Warranty (Std./Ind.) | 2 years or within 30,000 erasing counts |
| Flash Type | 3D-NAND aSLC |
|---|---|
| Series | PHANES-UA |
| Picture | |
| SpecSheet |
|
| DataSheet |
|
| Dimension |
|
