| Interface | DDR4 | DDR4 | DDR4 | DDR4 |
|---|---|---|---|---|
| Form Factor | SO-DIMM | SO-DIMM w/ECC | U-DIMM | U-DIMM w/ECC |
| Picture |  |
|
 |
|
| Capacity | 2GB /4GB / 8GB / 16GB | 4GB / 8GB / 16GB | 4GB / 8GB / 16GB | 4GB / 8GB / 16GB |
| Grade | 0ºC~+70ºC/-40ºC~+85ºC | 0ºC~+70ºC/-40ºC~+85ºC | 0ºC~+70ºC/-40ºC~+85ºC | 0ºC~+70ºC/-40ºC~+85ºC |
| IC Data Rate | DDR4-2133 / DDR4-2400 / DDR4-2666 | DDR4-2133 / DDR4-2400 | DDR4-2133 / DDR4-2400 / DDR4-2666 | DDR4-2133 / DDR4-2400 / DDR4-2666 |
| Bandwidth | 64 bits | 72 bits | 64 bits | 72 bits |
| DIMM Data Rate | 2133MHz / 2400MHz / 2666MHz | 2133MHz / 2400MHz / 2666MHz | 2133MHz / 2400MHz / 2666MHz | 2133MHz / 2400MHz / 2666MHz |
| Pin Number | 260 Pins | 260 Pins | 288 Pins | 288 Pins |
| Height | 30 mm + 0.15 mm | 30 mm + 0.15 mm | 31~34 mm + 0.15 mm | 31~34 mm + 0.15 mm |
| Voltage | 1.2V | 1.2V | 1.2V | 1.2V |
| Warranty | 5 years | 5 years | 5 years | 5 years |
| Interface | DDR4 | DDR4 |
|---|---|---|
| Form Factor | SO-DIMM | SO-DIMM w/ECC |
| Picture | |
|
| Capacity | 2GB /4GB / 8GB / 16GB | 4GB / 8GB / 16GB |
| Grade | 0ºC~+70ºC/-40ºC~+85ºC | 0ºC~+70ºC/-40ºC~+85ºC |
| IC Data Rate | DDR4-2133 / DDR4-2400 / DDR4-2666 | DDR4-2133 / DDR4-2400 |
| Bandwidth | 64 bits | 72 bits |
| DIMM Data Rate | 2133MHz / 2400MHz / 2666MHz | 2133MHz / 2400MHz / 2666MHz |
| Pin Number | 260 Pins | 260 Pins |
| Height | 30 mm + 0.15 mm | 30 mm + 0.15 mm |
| Voltage | 1.2V | 1.2V |
| Warranty | 5 years | 5 years |

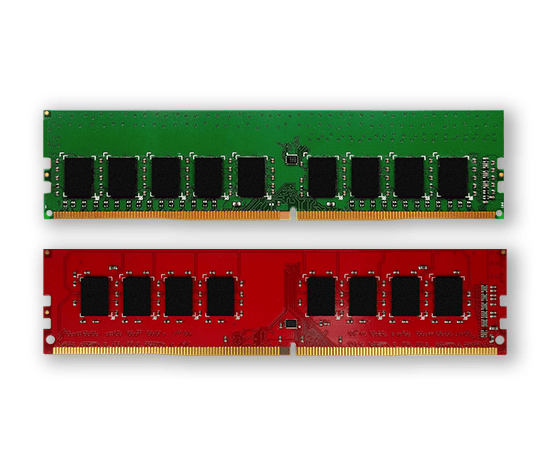

| Interface | DDR4 | DDR4 |
|---|---|---|
| Form Factor | U-DIMM | U-DIMM w/ECC |
| Picture | |
|
| Capacity | 4GB / 8GB / 16GB | 4GB / 8GB / 16GB |
| Grade | 0ºC~+70ºC/-40ºC~+85ºC | 0ºC~+70ºC/-40ºC~+85ºC |
| IC Data Rate | DDR4-2133 / DDR4-2400 / DDR4-2666 | DDR4-2133 / DDR4-2400 / DDR4-2666 |
| Bandwidth | 64 bits | 72 bits |
| DIMM Data Rate | 2133MHz / 2400MHz / 2666MHz | 2133MHz / 2400MHz / 2666MHz |
| Pin Number | 288 Pins | 288 Pins |
| Height | 31~34 mm + 0.15 mm | 31~34 mm + 0.15 mm |
| Voltage | 1.2V | 1.2V |
| Warranty | 5 years | 5 years |
