| Flash Type | 3D-NAND |
|---|---|
| Series | PHANES-S |

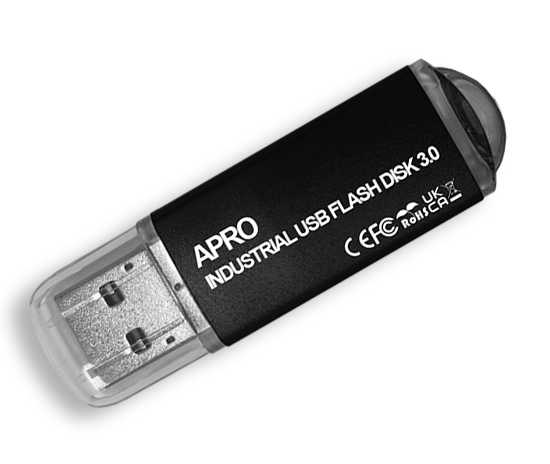

| Picture |  |
| Capacity | 16GB~256GB |
| Form-Factor | Pen drive |
| Compatibility | USB 3.2 Supper speed |
| Data transfer rate | Supper speed up to 5Gbit/second |
| Sequential read (Max.) | 210 MB/sec |
| Sequential write (Max.) | 100 MB/sec |
| Operating temp. (STD/IND or WIDE) |
S : 0˚C~+70˚C |
| OS supported | Windows series, MAC OS X O.S., Linux, VxWorks and DOS |
| Power requirement | 5V ± 10% via USB port |
| Wear-leveling | Static/Dynamic |
| TBW | TBC |
| Erase counts | 3,000 |
| Weight (Max.) | 10g |
| Dimension (WxLxH,mm) | 59.19 x 17.47 x 7.98. |
| Conformal coating | Optional |
| Warranty (Std./Ind.) | 2 years or within 3,000 erasing counts |
| Flash Type | 3D-NAND |
|---|---|
| Series | PHANES-S |
| Picture | |
| Capacity | 16GB~256GB |
| Form-Factor | Pen drive |
| Compatibility | USB 3.2 Supper speed |
| Data transfer rate | Supper speed up to 5Gbit/second |
| Sequential read (Max.) | 210 MB/sec |
| Sequential write (Max.) | 100 MB/sec | >
| Operating temp. (STD/IND or WIDE) |
S : 0˚C~+70˚C |
| OS supported | Windows series, MAC OS X O.S., Linux, VxWorks and DOS |
| Power requirement | 5V ± 10% via USB port |
| Wear-leveling | Static/Dynamic |
| TBW | TBC |
| Erase counts | 3,000 |
| Weight (Max.) | 10g |
| Dimension (WxLxH,mm) | 59.19 x 17.47 x 7.98. |
| Conformal coating | Optional |
| Warranty (Std./Ind.) | 2 years or within 3,000 erasing counts |
