| Interface | 2.5" SATA to CF Card Adapter | 2.5" SATA to CF Card Adapter | 2.5" SATA to CF Card Adapter |
|---|---|---|---|
| Model Name | AD-CF125SATA1003R | AD-CF12RSATA1003R | AD-CF123SATA1003R |
| Picture |  |
 |
 |
| SATA / ATA standard & SATA / CFast™ specification | Compliant with serial ATA 1.0a specification Compliant with ultra ATA /66 (UDMA-4) Integrated serial ATA link and PHY logic |
Compliant with serial ATA 1.0a specification Compliant with ultra ATA /66 (UDMA-4) Integrated serial ATA link and PHY logic |
Compliant with serial ATA 1.0a specification Compliant with ultra ATA /66 (UDMA-4) Integrated serial ATA link and PHY logic |

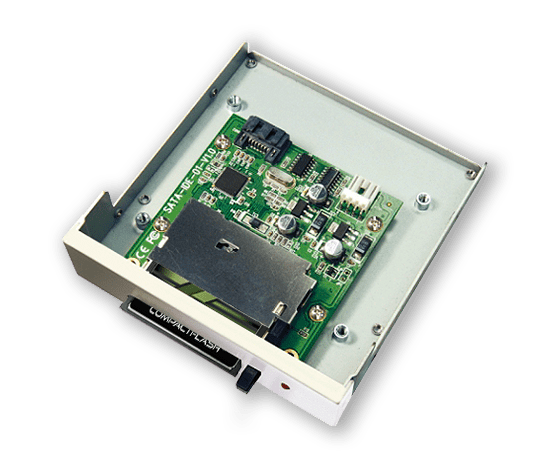

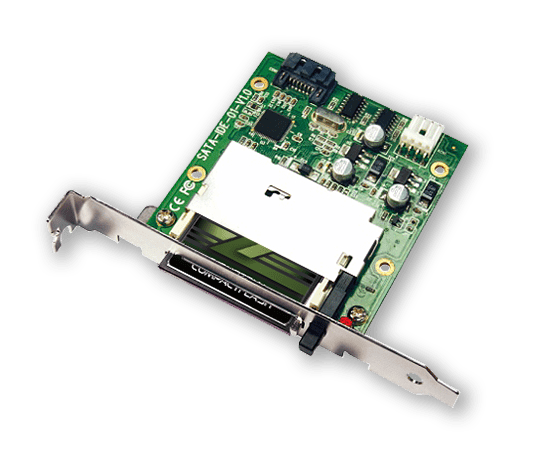

| Form-factor | 2.5" form-factor with 4 standard 2.5" HDD fixed holes | Optional with rear bracket | Optional with 3.5" floppy size casing |
| Host interface | SATA 7-pin female connector Serial ATA to parallel ATA device |
SATA 7-pin female connector Serial ATA to parallel ATA device |
SATA 7-pin female connector Serial ATA to parallel ATA device |
| CFast™ Socket | CompactFlash® type II socket with ejector | CompactFlash® type II socket with ejector | CompactFlash® type II socket with ejector |
| Power Connector | 4-pin floppy power connector | 4-pin floppy power connector | 4-pin floppy power connector |
| Support Card Types | CompactFlash® card type I/II and MicroDrive | CompactFlash® card type I/II and MicroDrive | CompactFlash® card type I/II and MicroDrive |
| Data Transfer Mode | Support PIO-4 mode, MWDMA-2 mode and up to UDMA-6 mode | Support PIO-4 mode, MWDMA-2 mode and up to UDMA-6 mode | Support PIO-4 mode, MWDMA-2 mode and up to UDMA-6 mode |
| Performance | Support SATA generation 1 with transfer rate 1.5Gb/sec | Support SATA generation 1 with transfer rate 1.5Gb/sec | Support SATA generation 1 with transfer rate 1.5Gb/sec |
| LED Indicator | Optional for special request, 1 access LED and 1 active LED | Optional for special request, 1 access LED and 1 active LED | Optional for special request, 1 access LED and 1 active LED |
| Bootable | Yes | Yes | Yes |
| Hot Swappable | No | No | No |
| Operation Voltage | +5V | +5V | +5V |
| Operating Temperature | 0°C~+70°C | 0°C~+70°C | 0°C~+70°C |
| Non-operating Temperature | -20°C~+80°C | -20°C~+80°C | -20°C~+80°C |
| Relative Humidity | Max 90% | Max 90% | Max 90% |
| Supported O.S. | Compatible with DOS, Windows / Linux and O.S. | Compatible with DOS, Windows / Linux and O.S. | Compatible with DOS, Windows / Linux and O.S. |
| Dimension (WxLxH,mm) | 70 x 79.7 x 10.7 | 70 x 79.7 x 10.7 | 101.6 x 109.6 x 25.4 |
| Weight | 30g | 35g | 250g |
| Warranty | 1 year | 1 year | 1 year |
| RoHS compliant | Yes | Yes | Yes |
