| Flash Type | SLC | MLC |
|---|---|---|
| Flash Process | Kioxia 24nm | Kioxia 15nm |
| Series | BON-III | BON-III |

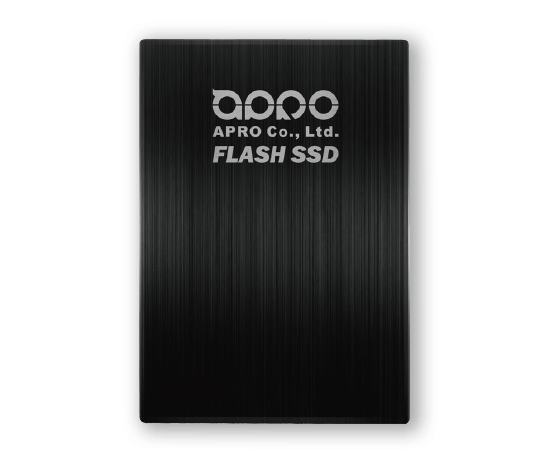

| Picture |  |
|
| Capacity | 8GB~256GB | 32GB~1TB |
| Form-Factor | Rugged Metal 2.5” 9mm height SATA SSD | Rugged Metal 2.5” 9mm height SATA SSD |
| Compatibility | SATA Revision 3.1 ATA-8 ACS2 command set |
SATA Revision 3.1 ATA-8 ACS2 command set |
| Data transfer rate | SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s | SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s |
| Sequential read (Max.) | 173.4 MB/sec | 561 MB/sec |
| Sequential write (Max.) | 165.8 MB/sec | 349 MB/sec |
| Operating temp. (STD/IND or WIDE) | S : 0˚C~+70˚C/ I : -40˚C~+85˚C |
S : 0˚C~+70˚C/ W : -40˚C~+85˚C |
| Power requirement | +5V ± 5% | +5V ± 5% |
| Wear-leveling | Global | Global |
| TBW | Up to 1,807.4 TBW at 256GB | Up to 1,800 TBW at 1TB |
| Erase counts | 60,000 | 3,000 |
| Weight (Max.) | 100g | 100g |
| Dimension (WxLxH,mm) | 70.00 x 100.00 x 9.20 | 70.00 x 100.00 x 9.20 |
| Conformal coating | Optional | Optional |
| Warranty (Std./Ind.) | 3/5 years or within 60,000 erasing counts | 2 years or within 3,000 erasing counts |
| Flash Type | SLC |
|---|---|
| Flash Process | Kioxia 24nm |
| Series | BON-III |
| Picture | |
| Capacity | 8GB~256GB |
| Form-Factor | Rugged Metal 2.5” 9mm height SATA SSD |
| Compatibility | SATA Revision 3.1 ATA-8 ACS2 command set |
| Data transfer rate | SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s |
| Sequential read (Max.) | 173.4 MB/sec |
| Sequential write (Max.) | 165.8 MB/sec |
| Operating temp. (STD/IND or WIDE) | S : 0˚C~+70˚C/ I : -40˚C~+85˚C |
| Power requirement | +5V ± 5% |
| Wear-leveling | Global |
| TBW | Up to 1,807.4 TBW at 256GB |
| Erase counts | 60,000 |
| Weight (Max.) | 100g |
| Dimension (WxLxH,mm) | 70.00 x 100.00 x 9.20 |
| Conformal coating | Optional |
| Warranty (Std./Ind.) | 3/5 years or within 60,000 erasing counts |
| Flash Type | MLC |
|---|---|
| Flash Process | Kioxia 15nm |
| Series | BON-III |
| Picture | |
| Capacity | 32GB~1TB |
| Form-Factor | Rugged Metal 2.5” 9mm height SATA SSD |
| Compatibility | SATA Revision 3.1 ATA-8 ACS2 command set |
| Data transfer rate | SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s |
| Sequential read (Max.) | 561 MB/sec |
| Sequential write (Max.) | 349 MB/sec |
| Operating temp. (STD/IND or WIDE) | S : 0˚C~+70˚C/ W : -40˚C~+85˚C |
| Power requirement | +5V ± 5% |
| Wear-leveling | Global |
| TBW | Up to 1,800 TBW at 1TB |
| Erase counts | 3,000 |
| Weight (Max.) | 100g |
| Dimension (WxLxH,mm) | 70.00 x 100.00 x 9.20 |
| Conformal coating | Optional |
| Warranty (Std./Ind.) | 2 years or within 3,000 erasing counts |
