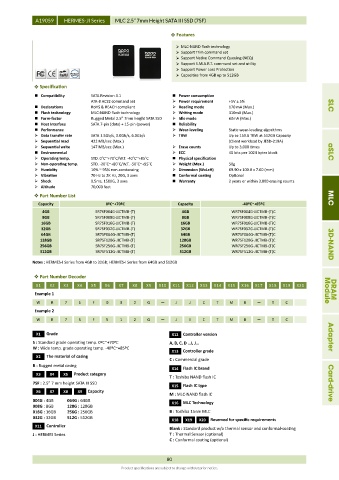

A19059     HERMES-JI Series  MLC 2.5” 7mm Height SATA III SSD (7SF)

                                                               Features

                                                                MLC-NAND flash technology
                                                                Support Trim command set
                                                                Support Native Command Queuing (NCQ)
                                                                Support S.M.A.R.T. command set and utility
                                                                Support Power Loss Protection
                                                                Capacities from 4GB up to 512GB
               Specification
               Compatibility    SATA Revision 3.1              Power consumption
                                 ATA-8 ACS2 command set         Power requirement  +5V ± 5%
               Declarations     RoHS & REACH compliant         Reading mode    170 mA (Max.)                      SLC
               Flash technology  MLC-NAND flash technology      Writing mode    310mA (Max.)
               Form-factor      Rugged Metal 2.5” 7mm height SATA SSD    Idle mode  60mA (Max.)
               Host Interface   SATA 7-pin (data) + 15-pin (power)    Reliability
               Performance                                     Wear-leveling   Static wear-leveling algorithms
               Data transfer rate  SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s    TBW       Up to 153.6 TBW at 512GB Capacity
               Sequential read  422 MB/sec (Max.)                               (Client workload by JESD-219A)
               Sequential write  147 MB/sec (Max.)             Erase counts    Up to 3,000 times
               Environmental                                   ECC             40 bits per 1024 bytes block       aSLC
               Operating temp.  STD. 0˚C~+70˚C/W.T. -40˚C~+85˚C    Physical specification
               Non-operating temp.  STD. -20˚C~+80˚C/W.T. -50˚C~+95˚C    Weight (Max.)  50g
               Humidity         10% ~ 95% non-condensing       Dimension (WxLxH)  69.90 x 100.0 x 7.00 (mm)
               Vibration        70 Hz to 2K Hz, 20G, 3 axes    Conformal coating  Optional
               Shock            0.5ms, 1500G, 3 axes           Warranty        2 years or within 3,000 erasing counts
               Altitude         70,000 feet
               Part Number List                                                                                    MLC
               Capacity               0ºC~+70ºC                 Capacity              -40ºC~+85ºC
                4GB                SR7SF004G-JJCTMB-(T)          4GB              WR7SF004G-JJCTMB-(T)C
                8GB                SR7SF008G-JJCTMB-(T)          8GB              WR7SF008G-JJCTMB-(T)C
               16GB                SR7SF016G-JJCTMB-(T)          16GB             WR7SF016G-JJCTMB-(T)C
               32GB                SR7SF032G-JJCTMB-(T)          32GB             WR7SF032G-JJCTMB-(T)C
               64GB                SR7SF064G-JICTMB-(T)          64GB             WR7SF064G-JICTMB-(T)C
               128GB               SR7SF128G-JICTMB-(T)         128GB             WR7SF128G-JICTMB-(T)C
               256GB               SR7SF256G-JICTMB-(T)         256GB             WR7SF256G-JICTMB-(T)C             3D-NAND
               512GB               SR7SF512G-JICTMB-(T)         512GB             WR7SF512G-JICTMB-(T)C

            Notes : HERMES-J Series from 4GB to 32GB; HERMES-I Series from 64GB and 512GB

               Part Number Decoder
              X1   X2  X3   X4   X5   X6   X7   X8  X9   X10  X11  X12  X13  X14  X15  X16  X17  X18  X19  X20
             Example 1                                                                                             Module  DRAM
              W    R    7    S    F   0    3    2    G         J    J   C    T    M    B         T   C
             Example 2
              W    R    7    S    F   5    1    2    G         J    I   C    T    M    B         T   C

              X1  Grade                                      X12  Controller version                                Adapter
             S : Standard grade operating temp. 0ºC~+70ºC    A, B, C, D …I, J…
             W : Wide temp. grade operating temp. -40ºC~+85ºC
                                                             X13  Controller grade
              X2  The material of casing
                                                             C : Commercial grade
             R : Rugged metal casing
                                                             X14  Flash IC brand
              X3   X4  X5  Product category
                                                             T : Toshiba NAND flash IC
             7SF : 2.5” 7 mm height SATA III SSD                                                                    Card-drive
                                                             X15  Flash IC type
              X6   X7  X8   X9  Capacity
                                                             M : MLC-NAND flash IC
             004G : 4GB  064G : 64GB                         X16  MLC Technology
             008G : 8GB  128G : 128GB
             016G : 16GB  256G : 256GB                       B : Toshiba 15nm MLC
             032G : 32GB  512G : 512GB                       X18  X19  X20  Reserved for specific requirements
             X11  Controller                                 Blank : Standard product w/o thermal sensor and conformal-coating
             J : HERMES Series                               T : Thermal Sensor (optional)
                                                             C : Conformal coating (optional)


                                                            80
                                            Product specifications are subject to change without prior notice.
