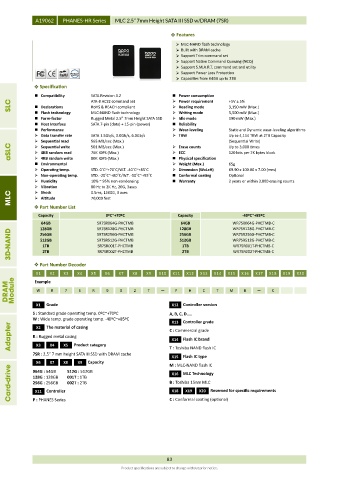

A19062 PHANES-HR Series MLC 2.5” 7mm Height SATA III SSD w/DRAM (7SR)

 Features
 MLC-NAND flash technology
 Built with DRAM cache
 Support Trim command set
 Support Native Command Queuing (NCQ)
 Support S.M.A.R.T. command set and utility
 Support Power Loss Protection
 Capacities from 64GB up to 2TB
 Specification
 Compatibility SATA Revision 3.2  Power consumption
SLC  Declarations ATA-8 ACS2 command set  Power requirement +5V ± 5%
RoHS & REACH compliant
Reading mode

3,150 mW (Max.)
 Flash technology MLC-NAND flash technology  Writing mode 5,500 mW (Max.)
 Form-factor Rugged Metal 2.5” 7mm Height SATA SSD  Idle mode 190 mW (Max.)
 Host Interface SATA 7-pin (data) + 15-pin (power)  Reliability
 Performance  Wear-leveling Static and Dynamic wear-leveling algorithms
 Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s  TBW Up to 4,114 TBW at 2TB Capacity
 Sequential read 565 MB/sec (Max.) (Sequential Write)
aSLC  Sequential write 501 MB/sec (Max.)  Erase counts Up to 3,000 times

ECC
4KB random read
76K IOPS (Max.)
120 bits per 2K bytes block


Physical specification

4KB random write
80K IOPS (Max.)
 Environmental  Weight (Max.) 65g
 Operating temp. STD. 0˚C~+70˚C/W.T. -40˚C~+85˚C  Dimension (WxLxH) 69.90 x 100.00 x 7.00 (mm)
 Non-operating temp. STD. -20˚C~+80˚C/W.T. -50˚C~+95˚C  Conformal coating Optional
 Humidity 10% ~ 95% non-condensing  Warranty 2 years or within 3,000 erasing counts
 Vibration 80 Hz to 2K Hz, 20G, 3axes
Shock

0.5ms, 1500G, 3 axes
MLC  Altitude 70,000 feet
 Part Number List
Capacity 0ºC~+70ºC Capacity -40ºC~+85ºC
64GB
64GB SR7SR064G-PHCTMB 128GB WR7SR064G-PHCTMB-C
128GB
SR7SR128G-PHCTMB
WR7SR128G-PHCTMB-C
3D-NAND 256GB SR7SR256G-PHCTMB 256GB WR7SR256G-PHCTMB-C
512GB
512GB
SR7SR512G-PHCTMB
WR7SR512G-PHCTMB-C
SR7SR001T-PHCTMB
1TB
WR7SR001T-PHCTMB-C
1TB
WR7SR002T-PHCTMB-C
SR7SR002T-PHCTMB
2TB
2TB
 Part Number Decoder
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
DRAM Module W R 7 S R 0 0 2 T P H C T M B C
Example
X1 Grade X12 Controller version
S : Standard grade operating temp. 0ºC~+70ºC A, B, C, D…..
W : Wide temp. grade operating temp. -40ºC~+85ºC X13 Controller grade
Adapter R : Rugged metal casing C : Commercial grade
The material of casing
X2
Flash IC brand
X14
Product category
X3
X5
X4
7SR : 2.5” 7 mm height SATA III SSD with DRAM cache T : Toshiba NAND flash IC
X15 Flash IC type
Capacity
X6 X7 X8 512G : 512GB M : MLC-NAND flash IC
X9
Card-drive 128G : 128GB 001T : 1TB B : Toshiba 15nm MLC Reserved for specific requirements
064G : 64GB
MLC Technology
X16
256G : 256GB
002T : 2TB
X20
X19
Controller
X18
X11
C : Conformal coating (optional)
P : PHANES Series
83
Product specifications are subject to change without prior notice.
