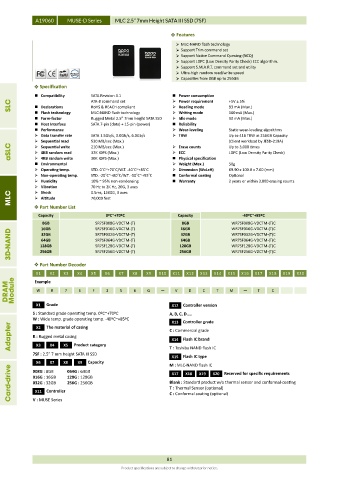

A19060 MUSE-D Series MLC 2.5” 7mm Height SATA III SSD (7SF)

 Features
 MLC-NAND flash technology
 Support Trim command set
 Support Native Command Queuing (NCQ)
 Support LDPC (Low Density Parity Check) ECC algorithm.
 Support S.M.A.R.T. command set and utility
 Ultra-high random read/write speed
 Capacities from 8GB up to 256GB
 Specification
 Compatibility SATA Revision 3.1  Power consumption
SLC  Declarations ATA-8 command set  Power requirement +5V ± 5%
RoHS & REACH compliant

Reading mode
93 mA (Max.)
 Flash technology MLC-NAND flash technology  Writing mode 160 mA (Max.)
 Form-factor Rugged Metal 2.5” 7mm height SATA SSD  Idle mode 90 mA (Max.)
 Host Interface SATA 7-pin (data) + 15-pin (power)  Reliability
 Performance  Wear-leveling Static wear-leveling algorithms
 Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s  TBW Up to 416 TBW at 256GB Capacity
 Sequential read 530 MB/sec (Max.) (Client workload by JESD-219A)
aSLC  Sequential write 210 MB/sec (Max.)  Erase counts Up to 3,000 times

ECC
LDPC (Low Density Parity Check)

32K IOPS (Max.)
4KB random read
30K IOPS (Max.)


4KB random write
Physical specification
 Environmental  Weight (Max.) 50g
 Operating temp. STD. 0˚C~+70˚C/W.T. -40˚C~+85˚C  Dimension (WxLxH) 69.90 x 100.0 x 7.00 (mm)
 Non-operating temp. STD. -20˚C~+80˚C/W.T. -50˚C~+95˚C  Conformal coating Optional
 Humidity 10% ~ 95% non-condensing  Warranty 2 years or within 3,000 erasing counts
 Vibration 70 Hz to 2K Hz, 20G, 3 axes
0.5ms, 1500G, 3 axes
Shock

MLC  Altitude 70,000 feet
 Part Number List
Capacity 0ºC~+70ºC Capacity -40ºC~+85ºC
8GB SR7SF008G-VDCTM-(T) 16GB WR7SF008G-VDCTM-(T)C
8GB
WR7SF016G-VDCTM-(T)C
16GB
SR7SF016G-VDCTM-(T)
3D-NAND 128GB SR7SF032G-VDCTM-(T) 128GB WR7SF032G-VDCTM-(T)C
32GB
32GB
SR7SF064G-VDCTM-(T)
64GB
WR7SF064G-VDCTM-(T)C
64GB
WR7SF128G-VDCTM-(T)C
SR7SF128G-VDCTM-(T)
WR7SF256G-VDCTM-(T)C
SR7SF256G-VDCTM-(T)
256GB
256GB
 Part Number Decoder
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example
DRAM Module W R 7 S F 2 5 6 G V D C T M T C
X1 Grade X12 Controller version
S : Standard grade operating temp. 0ºC~+70ºC A, B, C, D…..
W : Wide temp. grade operating temp. -40ºC~+85ºC X13 Controller grade
Adapter R : Rugged metal casing C : Commercial grade
X2
The material of casing
X14
Flash IC brand
X5
Product category
X3
X4
7SF : 2.5” 7 mm height SATA III SSD T : Toshiba NAND flash IC
X15 Flash IC type
Capacity
X9
X6 X7 X8 064G : 64GB M : MLC-NAND flash IC
Card-drive 016G : 16GB 128G : 128GB Blank : Standard product w/o thermal sensor and conformal-coating
008G : 8GB
X18
Reserved for specific requirements
X20
X17
X19
256G : 256GB
032G : 32GB
T : Thermal Sensor (optional)
Controller
X11
C : Conformal coating (optional)
V : MUSE Series
81
Product specifications are subject to change without prior notice.
