P. 83

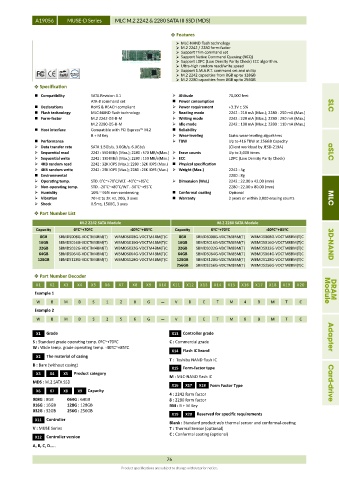

A19056 MUSE-D Series MLC M.2 2242 & 2280 SATA III SSD (MDS)

 Features
 MLC-NAND ﬂash technology
 M.2 2242 / 2280 form-factor
 Support Trim command set
 Support Native Command Queuing (NCQ)
 Support LDPC (Low Density Parity Check) ECC algorithm.
 Ultra-high random read/write speed
 Support S.M.A.R.T. command set and utility
 M.2 2242 capacities from 8GB up to 128GB
 M.2 2280 capacities from 8GB up to 256GB
 Speciﬁcation
 Compatibility SATA Revision 3.1  Altitude 70,000 feet
ATA-8 command set  Power consumption
 Declarations RoHS & REACH compliant  Power requirement +3.3V ± 5% SLC
 Flash technology MLC-NAND ﬂash technology  Reading mode 2242 : 210 mA (Max.); 2280 : 250 mA (Max.)
 Form-factor M.2 2242-D3-B-M  Writing mode 2242 : 220 mA (Max.); 2280 : 290 mA (Max.)
M.2 2280-D5-B-M  Idle mode 2242 : 100 mA (Max.); 2280 : 110 mA (Max.)
 Host interface Compatible with PCI Express™ M.2  Reliability
B + M Key  Wear-leveling Static wear-leveling algorithms
 Performance  TBW Up to 416 TBW at 256GB Capacity
 Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s (Client workload by JESD-219A)
 Sequential read 2242 : 550 MB/s (Max.); 2280 : 570 MB/s(Max.)  Erase counts Up to 3,000 times aSLC
 Sequential write 2242 : 130 MB/s (Max.); 2280 : 150 MB/s(Max.)  ECC LDPC (Low Density Parity Check)
 4KB random read 2242 : 32K IOPS (Max.); 2280 : 32K IOPS (Max.)c Physical speciﬁcation
 4KB random write 2242 : 29K IOPS (Max.); 2280 : 26K IOPS (Max.)  Weight (Max.) 2242 : 5g
 Environmental 2280 : 8g
 Operating temp. STD. 0˚C~+70˚C/W.T. -40˚C~+85˚C  Dimension (WxL) 2242 : 22.00 x 42.00 (mm)
 Non-operating temp. STD. -20˚C~+80˚C/W.T. -50˚C~+95˚C 2280 : 22.00 x 80.00 (mm)
 Humidity 10% ~ 95% non-condensing  Conformal coating Optional
 Vibration 70 Hz to 2K Hz, 20G, 3 axes  Warranty 2 years or within 3,000 erasing counts MLC
 Shock 0.5ms, 1500G, 3 axes
 Part Number List
M.2 2242 SATA Module M.2 2280 SATA Module
Capacity 0ºC~+70ºC -40ºC~+85ºC Capacity 0ºC~+70ºC -40ºC~+85ºC
8GB SBMDS008G-VDCTM4BM(T) WBMDS008G-VDCTM4BM(T)C 8GB SBMDS008G-VDCTM8BM(T) WBMDS008G-VDCTM8BM(T)C
16GB SBMDS016G-VDCTM4BM(T) WBMDS016G-VDCTM4BM(T)C 16GB SBMDS016G-VDCTM8BM(T) WBMDS016G-VDCTM8BM(T)C 3D-NAND
32GB SBMDS032G-VDCTM4BM(T) WBMDS032G-VDCTM4BM(T)C 32GB SBMDS032G-VDCTM8BM(T) WBMDS032G-VDCTM8BM(T)C
64GB SBMDS064G-VDCTM4BM(T) WBMDS064G-VDCTM4BM(T)C 64GB SBMDS064G-VDCTM8BM(T) WBMDS064G-VDCTM8BM(T)C
128GB SBMDS128G-VDCTM4BM(T) WBMDS128G-VDCTM4BM(T)C 128GB SBMDS128G-VDCTM8BM(T) WBMDS128G-VDCTM8BM(T)C
256GB SBMDS256G-VDCTM8BM(T) WBMDS256G-VDCTM8BM(T)C
 Part Number Decoder
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example 1 Module DRAM
W B M D S 1 2 8 G V D C T M 4 B M T C
Example 2
W B M D S 2 5 6 G V D C T M 8 B M T C

X1 Grade X13 Controller grade Adapter
S : Standard grade operating temp. 0ºC~+70ºC C : Commercial grade
W : Wide temp. grade operating temp. -40ºC~+85ºC
X14 Flash IC brand
X2 The material of casing
T : Toshiba NAND ﬂash IC
B : Bare (without casing)
X15 Form-factor type
X3 X4 X5 Product category
M : MLC-NAND ﬂash IC
MDS : M.2 SATA SSD Card-drive
X16 X17 X18 Form Factor Type
X6 X7 X8 X9 Capacity
4 : 2242 form factor
008G : 8GB 064G : 64GB 8 : 2280 form factor
016G : 16GB 128G : 128GB BM : B + M Key
032G : 32GB 256G : 256GB
X19 X20 Reserved for speciﬁc requirements
X11 Controller
Blank : Standard product w/o thermal sensor and conformal-coating
V : MUSE Series T : Thermal Sensor (optional)
C : Conformal coating (optional)
X12 Controller version
A, B, C, D…..

76
Product speciﬁcations are subject to change without prior notice.
