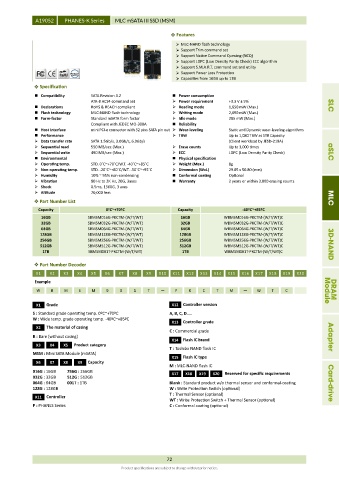

Page 79 - APRO_2020_Catalog

A19052 PHANES-K Series MLC mSATA III SSD (MSM)

 Features
 MLC-NAND flash technology
 Support Trim command set
 Support Native Command Queuing (NCQ)
 Support LDPC (Low Density Parity Check) ECC algorithm
 Support S.M.A.R.T. command set and utility
 Support Power Loss Protection
 Capacities from 16GB up to 1TB
 Specification
 Compatibility SATA Revision 3.2  Power consumption
ATA-8 ACS4 command set  Power requirement +3.3 V ± 5%
 Declarations RoHS & REACH compliant  Reading mode 1,650 mW (Max.) SLC
 Flash technology MLC-NAND flash technology  Writing mode 2,690 mW (Max.)
 Form-factor Standard mSATA form factor  Idle mode 285 mW (Max.)
Compliant with JEDEC MO-300A  Reliability
 Host Interface mini PCI-e connector with 52 pins SATA pin out  Wear-leveling Static and Dynamic wear-leveling algorithms
 Performance  TBW Up to 1,080 TBW at 1TB Capacity
 Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s (Client workload by JESD-219A)
 Sequential read 550 MB/sec (Max.)  Erase counts Up to 3,000 times
 Sequential write 490 MB/sec (Max.)  ECC LDPC (Low Density Parity Check) aSLC
 Environmental  Physical specification
 Operating temp. STD. 0˚C~+70˚C/W.T. -40˚C~+85˚C  Weight (Max.) 8g
 Non-operating temp. STD. -20˚C~+80˚C/W.T. -50˚C~+95˚C  Dimension (WxL) 29.85 x 50.80 (mm)
 Humidity 10% ~ 95% non-condensing  Conformal coating Optional
 Vibration 80 Hz to 2K Hz, 20G, 3axes  Warranty 2 years or within 3,000 erasing counts
 Shock 0.5ms, 1500G, 3 axes
 Altitude 70,000 feet
 Part Number List MLC
Capacity 0ºC~+70ºC Capacity -40ºC~+85ºC
16GB SBMSM016G-PKCTM-(W/T/WT) 16GB WBMSM016G-PKCTM-(W/T/WT)C
32GB SBMSM032G-PKCTM-(W/T/WT) 32GB WBMSM032G-PKCTM-(W/T/WT)C
64GB SBMSM064G-PKCTM-(W/T/WT) 64GB WBMSM064G-PKCTM-(W/T/WT)C
128GB SBMSM128G-PKCTM-(W/T/WT) 128GB WBMSM128G-PKCTM-(W/T/WT)C
256GB SBMSM256G-PKCTM-(W/T/WT) 256GB WBMSM256G-PKCTM-(W/T/WT)C
512GB SBMSM512G-PKCTM-(W/T/WT) 512GB WBMSM512G-PKCTM-(W/T/WT)C 3D-NAND
1TB SBMSM001T-PKCTM-(W/T/WT) 1TB WBMSM001T-PKCTM-(W/T/WT)C

 Part Number Decoder
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example
W B M S M 0 0 1 T P K C T M W T C Module DRAM

X1 Grade X12 Controller version
S : Standard grade operating temp. 0ºC~+70ºC A, B, C, D…..
W : Wide temp. grade operating temp. -40ºC~+85ºC
X13 Controller grade
X2 The material of casing
C : Commercial grade
B : Bare (without casing) Adapter
X14 Flash IC brand
X3 X4 X5 Product category
T : Toshiba NAND flash IC
MSM : Mini SATA Module (mSATA)
X15 Flash IC type
X6 X7 X8 X9 Capacity
M : MLC-NAND flash IC
016G : 16GB 256G : 256GB X17 X18 X19 X20 Reserved for specific requirements
032G : 32GB 512G : 512GB
064G : 64GB 001T : 1TB Blank : Standard product w/o thermal sensor and conformal-coating Card-drive
128G : 128GB W : Write Protection Switch (optional)
X11 Controller T : Thermal Sensor (optional)
WT : Write Protection Switch + Thermal Sensor (optional)
P : PHANES Series C : Conformal coating (optional)

72
Product specifications are subject to change without prior notice.
