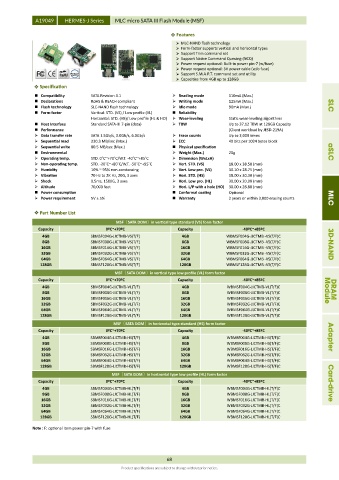

A19049 HERMES-J Series MLC micro SATA III Flash Module (MSF)

 Features
 MLC-NAND flash technology
 Form-factor supports vertical and horizontal types
 Support Trim command set
 Support Native Command Queuing (NCQ)
 Power request optional: Built-in power pin-7 (w/fuse)
 Power request optional: 5V power cable (w/o fuse)
 Support S.M.A.R.T. command set and utility
 Capacities from 4GB up to 128GB
 Specification
 Compatibility SATA Revision 3.1  Reading mode 110mA (Max.)
 Declarations RoHS & REACH compliant  Writing mode 125mA (Max.)
 Flash technology SLC-NAND flash technology  Idle mode 90mA (Max.) SLC
 Form-factor Vertical: STD. (VS) / Low profile (VL)  Reliability
Horizontal: STD. (HS)/ Low profile (HL & HO)  Wear-leveling Static wear-leveling algorithms
 Host Interface Standard SATA-III 7-pin (data)  TBW Up to 37.12 TBW at 128GB Capacity
 Performance (Client workload by JESD-219A)
 Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s  Erase counts Up to 3,000 times
 Sequential read 230.3 MB/sec (Max.)  ECC 40 bits per 1024 bytes block
 Sequential write 80.5 MB/sec (Max.)  Physical specification
 Environmental  Weight (Max.) 20g aSLC
 Operating temp. STD. 0˚C~+70˚C/W.T. -40˚C~+85˚C  Dimension (WxLxH)
 Non-operating temp. STD. -20˚C~+80˚C/W.T. -50˚C~+95˚C  Vert. STD. (VS) 18.00 x 38.50 (mm)
 Humidity 10% ~ 95% non-condensing  Vert. Low pro. (VL) 30.10 x 28.75 (mm)
 Vibration 70 Hz to 2K Hz, 20G, 3 axes  Hori. STD. (HS) 18.00 x 30.30 (mm)
 Shock 0.5ms, 1500G, 3 axes  Hori. Low pro. (HL) 30.00 x 20.08 (mm)
 Altitude 70,000 feet  Hori. L/P with a hole (HO) 30.00 x 28.80 (mm)
 Power consumption  Conformal coating Optional
 Power requirement 5V ± 5%  Warranty 2 years or within 3,000 erasing counts MLC

 Part Number List
MSF€SATA DOMin vertical type standard (VS) form factor
Capacity 0ºC~+70ºC Capacity -40ºC~+85ºC
4GB SBMSF004G-JJCTMB-VS(T/F) 4GB WBMSF004G-JJCTMB -VS(T/F)C
8GB SBMSF008G-JJCTMB-VS(T/F) 8GB WBMSF008G-JJCTMB -VS(T/F)C
16GB SBMSF016G-JJCTMB-VS(T/F) 16GB WBMSF016G-JJCTMB -VS(T/F)C 3D-NAND
32GB SBMSF032G-JJCTMB-VS(T/F) 32GB WBMSF032G-JJCTMB -VS(T/F)C
64GB SBMSF064G-JJCTMB-VS(T/F) 64GB WBMSF064G-JJCTMB -VS(T/F)C
128GB SBMSF128G-JJCTMB-VS(T/F) 128GB WBMSF128G-JJCTMB -VS(T/F)C
MSF€SATA DOMin vertical type low profile (VL) form factor
Capacity 0ºC~+70ºC Capacity -40ºC~+85ºC
4GB SBMSF004G-JJCTMB-VL(T/F) 4GB WBMSF004G-JJCTMB-VL(T/F)C
8GB SBMSF008G-JJCTMB-VL(T/F) 8GB WBMSF008G-JJCTMB-VL(T/F)C Module DRAM
16GB SBMSF016G-JJCTMB-VL(T/F) 16GB WBMSF016G-JJCTMB-VL(T/F)C
32GB SBMSF032G-JJCTMB-VL(T/F) 32GB WBMSF032G-JJCTMB-VL(T/F)C
64GB SBMSF064G-JJCTMB-VL(T/F) 64GB WBMSF064G-JJCTMB-VL(T/F)C
128GB SBMSF128G-JJCTMB-VL(T/F) 128GB WBMSF128G-JJCTMB-VL(T/F)C
MSF€SATA DOMin horizontal type standard (HS) form factor
Capacity 0ºC~+70ºC Capacity -40ºC~+85ºC
4GB SBMSF004G-JJCTMB-HS(T/F) 4GB WBMSF004G-JJCTMB-HS(T/F)C Adapter
8GB SBMSF008G-JJCTMB-HS(T/F) 8GB WBMSF008G-JJCTMB-HS(T/F)C
16GB SBMSF016G-JJCTMB-HS(T/F) 16GB WBMSF016G-JJCTMB-HS(T/F)C
32GB SBMSF032G-JJCTMB-HS(T/F) 32GB WBMSF032G-JJCTMB-HS(T/F)C
64GB SBMSF064G-JJCTMB-HS(T/F) 64GB WBMSF064G-JJCTMB-HS(T/F)C
128GB SBMSF128G-JJCTMB-HS(T/F) 128GB WBMSF128G-JJCTMB-HS(T/F)C
MSF€SATA DOMin horizontal type low profile (HL) form factor
Capacity 0ºC~+70ºC Capacity -40ºC~+85ºC Card-drive
4GB SBMSF004G-JJCTMB-HL(T/F) 4GB WBMSF004G-JJCTMB-HL(T/F)C
8GB SBMSF008G-JJCTMB-HL(T/F) 8GB WBMSF008G-JJCTMB-HL(T/F)C
16GB SBMSF016G-JJCTMB-HL(T/F) 16GB WBMSF016G-JJCTMB-HL(T/F)C
32GB SBMSF032G-JJCTMB-HL(T/F) 32GB WBMSF032G-JJCTMB-HL(T/F)C
64GB SBMSF064G-JJCTMB-HL(T/F) 64GB WBMSF064G-JJCTMB-HL(T/F)C
128GB SBMSF128G-JJCTMB-HL(T/F) 128GB WBMSF128G-JJCTMB-HL(T/F)C
Note : F: optional item power pin-7 with fuse

68
Product specifications are subject to change without prior notice.
