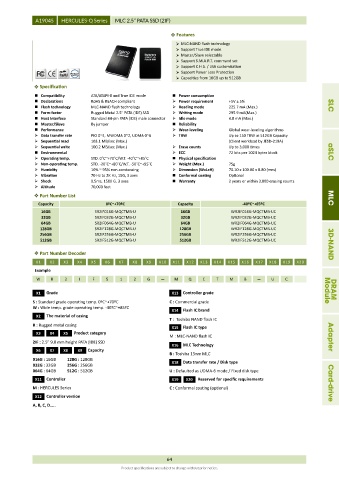

A19045    HERCULES-Q Series  MLC 2.5” PATA SSD (2IF)

                                                               Features
                                                                MLC-NAND flash technology
                                                                Support True IDE mode
                                                                Master/Slave selectable
                                                                Support S.M.A.R.T. command set
                                                                Support C.H.S. / LBA customization
                                                                Support Power Loss Protection
                                                                Capacities from 16GB up to 512GB
               Specification
               Compatibility    ATA/ATAPI-8 and True IDE mode    Power consumption
               Declarations     RoHS & REACH compliant         Power requirement  +5V ± 5%
               Flash technology  MLC-NAND flash technology      Reading mode    225.7 mA (Max.)                    SLC
               Form-factor      Rugged Metal 2.5" PATA (IDE) SSD    Writing mode  295.9 mA(Max.)
               Host Interface   Standard 44-pin PATA (IDE) male connector    Idle mode  4.8 mA (Max.)
               Master/Slave     By jumper                      Reliability
               Performance                                     Wear-leveling   Global wear-leveling algorithms
               Data transfer rate  PIO 0~4, MWDMA 0~2, UDMA 0~6    TBW         Up to 150 TBW at 512GB Capacity
               Sequential read  103.1 MB/sec (Max.)                             (Client workload by JESD-219A)
               Sequential write  100.2 MB/sec (Max.)           Erase counts    Up to 3,000 times
               Environmental                                   ECC             72 bits per 1024 bytes block       aSLC
               Operating temp.  STD. 0˚C~+70˚C/W.T. -40˚C~+85˚C    Physical specification
               Non-operating temp.  STD. -20˚C~+80˚C/W.T. -50˚C~+95˚C    Weight (Max.)  75g
               Humidity         10% ~ 95% non-condensing       Dimension (WxLxH)  70.10 x 100.00 x 8.80 (mm)
               Vibration        70 Hz to 2K Hz, 15G, 3 axes    Conformal coating  Optional
               Shock            0.5ms, 1500 G, 3 axes          Warranty        2 years or within 3,000 erasing counts
               Altitude         70,000 feet
               Part Number List                                                                                    MLC
               Capacity               0ºC~+70ºC                 Capacity              -40ºC~+85ºC
               16GB               SR2IF016G-MQCTMB-U            16GB              WR2IF016G-MQCTMB-UC
               32GB               SR2IF032G-MQCTMB-U            32GB              WR2IF032G-MQCTMB-UC
               64GB               SR2IF064G-MQCTMB-U            64GB              WR2IF064G-MQCTMB-UC
               128GB              SR2IF128G-MQCTMB-U            128GB             WR2IF128G-MQCTMB-UC
               256GB              SR2IF256G-MQCTMB-U            256GB             WR2IF256G-MQCTMB-UC
               512GB              SR2IF512G-MQCTMB-U            512GB             WR2IF512G-MQCTMB-UC               3D-NAND

               Part Number Decoder
              X1   X2  X3   X4   X5   X6   X7   X8  X9   X10  X11  X12  X13  X14  X15  X16  X17  X18  X19  X20
             Example
              W    R    2    I    F   5    1    2    G        M    Q    C    T    M    B        U    C

              X1  Grade                                      X13  Controller grade                                 Module  DRAM
             S : Standard grade operating temp. 0ºC~+70ºC    C : Commercial grade
             W : Wide temp. grade operating temp. -40ºC~+85ºC
                                                             X14  Flash IC brand
              X2  The material of casing
                                                             T :  Toshiba NAND flash IC
             R : Rugged metal casing                         X15  Flash IC type
              X3   X4  X5  Product category
                                                             M : MLC-NAND flash IC                                   Adapter
             2IF : 2.5” 9.0 mm height PATA (IDE) SSD
                                                             X16  MLC Technology
              X6   X7  X8   X9  Capacity
                                                             B : Toshiba 15nm MLC
             016G : 16GB  128G : 128GB                           Data transfer rate / Disk type
             032G : 32GB  256G : 256GB                       X18
             064G : 64GB  512G : 512GB                       U : Defaulted as UDMA-6 mode / Fixed disk type
             X11  Controller                                 X19  X20  Reserved for specific requirements
             M : HERCULES Series                             C : Conformal coating (optional)                       Card-drive
             X12  Controller version
             A, B, C, D…..










                                                            64
                                            Product specifications are subject to change without prior notice.
