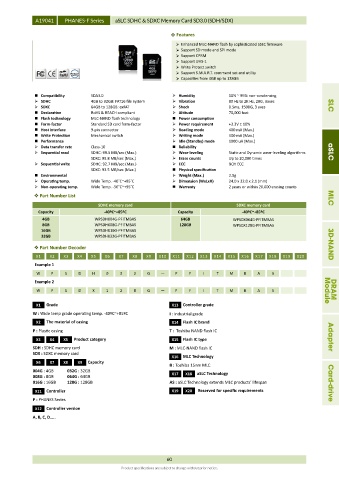

A19041 PHANES-F Series aSLC SDHC & SDXC Memory Card SD3.0 (SDH/SDX)

 Features
 Enhanced MLC-NAND flash by sophisticated aSLC firmware
 Support SD mode and SPI mode
 Support CPRM
 Support UHS-1
 Write Protect switch
 Support S.M.A.R.T. command set and utility
 Capacities from 4GB up to 128GB

 Compatibility SDA3.0  Humidity 10% ~ 95% non-condensing
 SDHC 4GB to 32GB: FAT16 file system  Vibration 80 Hz to 2K Hz, 20G, 3axes
 SDXC 64GB to 128GB: exFAT  Shock 0.5ms, 1500G, 3 axes SLC
 Declaration RoHS & REACH compliant  Altitude 70,000 feet
 Flash technology MLC-NAND flash technology  Power consumption
 Form-factor Standard SD card form-factor  Power requirement +3.3V ± 10%
 Host interface 9-pin connector  Reading mode 400 mA (Max.)
 Write Protection Mechanical switch  Writing mode 400 mA (Max.)
 Performance  Idle (Standby) mode 1000 uA (Max.)
 Data transfer rate Class-10  Reliability
 Sequential read SDHC: 99.5 MB/sec (Max.)  Wear-leveling Static and Dynamic wear-leveling algorithms aSLC
SDXC: 99.8 MB/sec (Max.)  Erase counts Up to 20,000 times
 Sequential write SDHC: 92.7 MB/sec (Max.)  ECC BCH ECC
SDXC: 93.5 MB/sec (Max.)  Physical specification
 Environmental  Weight (Max.) 2.5g
 Operating temp. Wide Temp. -40˚C~+85˚C  Dimension (WxLxH) 24.0 x 32.0 x 2.1 (mm)
 Non-operating temp. Wide Temp. -50˚C~+95˚C  Warranty 2 years or within 20,000 erasing counts
 Part Number List MLC
SDHC memory card SDXC memory card
Capacity -40ºC~+85ºC Capacity -40ºC~+85ºC
4GB WPSDH004G-PFITMBAS 64GB WPSDX064G-PFITMBAS
8GB WPSDH008G-PFITMBAS 128GB WPSDX128G-PFITMBAS
16GB WPSDH016G-PFITMBAS
32GB WPSDH032G-PFITMBAS

 Part Number Decoder 3D-NAND
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example 1
W P S D H 0 3 2 G P F I T M B A S
Example 2
W P S D X 1 2 8 G P F I T M B A S Module DRAM

X1 Grade X13 Controller grade
W : Wide temp grade operating temp. -40ºC~+85ºC I : Industrial grade
X2 The material of casing X14 Flash IC brand
P : Plastic casing T : Toshiba NAND flash IC
X3 X4 X5 Product category X15 Flash IC type Adapter
SDH : SDHC memory card M : MLC-NAND flash IC
SDX : SDXC memory card
X16 MLC Technology
X6 X7 X8 X9 Capacity
B : Toshiba 15nm MLC
004G : 4GB 032G : 32GB aSLC Technology
008G : 8GB 064G : 64GB X17 X18
016G : 16GB 128G : 128GB AS : aSLC Technology extends MLC products’ lifespan Card-drive
X11 Controller X19 X20 Reserved for specific requirements
P : PHANES Series
X12 Controller version
A, B, C, D…..

60
Product specifications are subject to change without prior notice.
