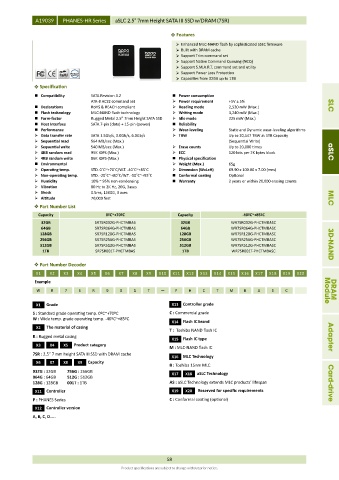

A19039 PHANES-HR Series aSLC 2.5” 7mm Height SATA III SSD w/DRAM (7SR)

 Features
 Enhanced MLC-NAND flash by sophisticated aSLC firmware
 Built with DRAM cache
 Support Trim command set
 Support Native Command Queuing (NCQ)
 Support S.M.A.R.T. command set and utility
 Support Power Loss Protection
 Capacities from 32GB up to 1TB
 Specification
 Compatibility SATA Revision 3.2  Power consumption
ATA-8 ACS2 command set  Power requirement +5V ± 5%
 Declarations RoHS & REACH compliant  Reading mode 2,520 mW (Max.) SLC
 Flash technology MLC-NAND flash technology  Writing mode 3,240 mW (Max.)
 Form-factor Rugged Metal 2.5” 7mm Height SATA SSD  Idle mode 225 mW (Max.)
 Host Interface SATA 7-pin (data) + 15-pin (power)  Reliability
 Performance  Wear-leveling Static and Dynamic wear-leveling algorithms
 Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s  TBW Up to 20,547 TBW at 1TB Capacity
 Sequential read 564 MB/sec (Max.) (Sequential Write)
 Sequential write 540 MB/sec (Max.)  Erase counts Up to 20,000 times
 4KB random read 95K IOPS (Max.)  ECC 120 bits per 2K bytes block aSLC
 4KB random write 86K IOPS (Max.)  Physical specification
 Environmental  Weight (Max.) 65g
 Operating temp. STD. 0˚C~+70˚C/W.T. -40˚C~+85˚C  Dimension (WxLxH) 69.90 x 100.00 x 7.00 (mm)
 Non-operating temp. STD. -20˚C~+80˚C/W.T. -50˚C~+95˚C  Conformal coating Optional
 Humidity 10% ~ 95% non-condensing  Warranty 2 years or within 20,000 erasing counts
 Vibration 80 Hz to 2K Hz, 20G, 3axes
 Shock 0.5ms, 1500G, 3 axes
 Altitude 70,000 feet MLC
 Part Number List
Capacity 0ºC~+70ºC Capacity -40ºC~+85ºC
32GB SR7SR032G-PHCTMBAS 32GB WR7SR032G-PHCTMBASC
64GB SR7SR064G-PHCTMBAS 64GB WR7SR064G-PHCTMBASC
128GB SR7SR128G-PHCTMBAS 128GB WR7SR128G-PHCTMBASC
256GB SR7SR256G-PHCTMBAS 256GB WR7SR256G-PHCTMBASC
512GB SR7SR512G-PHCTMBAS 512GB WR7SR512G-PHCTMBASC 3D-NAND
1TB SR7SR001T-PHCTMBAS 1TB WR7SR001T-PHCTMBASC

 Part Number Decoder
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example
W R 7 S R 0 0 1 T P H C T M B A S C Module DRAM

X1 Grade X13 Controller grade
S : Standard grade operating temp. 0ºC~+70ºC C : Commercial grade
W : Wide temp. grade operating temp. -40ºC~+85ºC
X14 Flash IC brand
X2 The material of casing
T : Toshiba NAND flash IC
R : Rugged metal casing Adapter
X15 Flash IC type
X3 X4 X5 Product category M : MLC-NAND flash IC
7SR : 2.5” 7 mm height SATA III SSD with DRAM cache
X16 MLC Technology
X6 X7 X8 X9 Capacity
B : Toshiba 15nm MLC
032G : 32GB 256G : 256GB X17 X18 aSLC Technology
064G : 64GB 512G : 512GB
128G : 128GB 001T : 1TB AS : aSLC Technology extends MLC products’ lifespan Card-drive
X11 Controller X19 X20 Reserved for specific requirements
P : PHANES Series C : Conformal coating (optional)
X12 Controller version
A, B, C, D…..

58
Product specifications are subject to change without prior notice.
