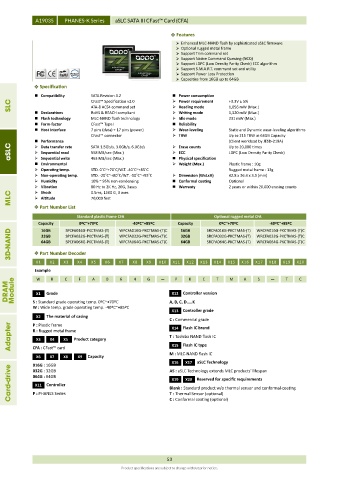

A19035 PHANES-K Series aSLC SATA III CFast™ Card (CFA)

 Features
 Enhanced MLC-NAND flash by sophisticated aSLC firmware
 Optional rugged metal frame
 Support Trim command set
 Support Native Command Queuing (NCQ)
 Support LDPC (Low Density Parity Check) ECC algorithm
 Support S.M.A.R.T. command set and utility
 Support Power Loss Protection
 Capacities from 16GB up to 64GB
 Specification
 Compatibility SATA Revision 3.2  Power consumption
SLC CFast™ Specification v2.0  Power requirement +3.3V ± 5%

ATA-8 ACS4 command set
1,056 mW (Max.)
Reading mode
 Declarations RoHS & REACH compliant  Writing mode 1,320 mW (Max.)
 Flash technology MLC-NAND flash technology  Idle mode 231 mW (Max.)
 Form-factor CFast™ Type I  Reliability
 Host Interface 7 pins (data) + 17 pins (power)  Wear-leveling Static and Dynamic wear-leveling algorithms
CFast™ connector  TBW Up to 215 TBW at 64GB Capacity
 Performance (Client workload by JESD-219A)
aSLC  Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s  Erase counts Up to 20,000 times
LDPC (Low Density Parity Check)
Sequential read
ECC

558 MB/sec (Max.)

463 MB/sec (Max.)
Physical specification

Sequential write

 Environmental  Weight (Max.) Plastic frame : 10g
 Operating temp. STD. 0˚C~+70˚C/W.T. -40˚C~+85˚C Rugged metal frame : 13g
 Non-operating temp. STD. -20˚C~+80˚C/W.T. -50˚C~+95˚C  Dimension (WxLxH) 42.8 x 36.4 x 3.5 (mm)
 Humidity 10% ~ 95% non-condensing  Conformal coating Optional
 Vibration 80 Hz to 2K Hz, 20G, 3axes  Warranty 2 years or within 20,000 erasing counts

Shock
0.5ms, 1500 G, 3 axes
MLC  Altitude 70,000 feet
 Part Number List
Standard plastic frame CFA Optional rugged metal CFA
0ºC~+70ºC
0ºC~+70ºC
-40ºC~+85ºC
-40ºC~+85ºC
Capacity SPCFA016G-PKCTMAS-(T) WPCFA016G-PKCTMAS-(T)C Capacity SRCFA016G-PKCTMAS-(T) WRCFA016G-PKCTMAS-(T)C
16GB
16GB
3D-NAND  Part Number Decoder WPCFA032G-PKCTMAS-(T)C 32GB SRCFA032G-PKCTMAS-(T) WRCFA032G-PKCTMAS-(T)C
32GB
SPCFA032G-PKCTMAS-(T)
SRCFA064G-PKCTMAS-(T)
64GB
64GB
WPCFA064G-PKCTMAS-(T)C
WRCFA064G-PKCTMAS-(T)C
SPCFA064G-PKCTMAS-(T)
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example R C F A 0 6 4 G P K C T M A S T C
W
DRAM Module X1 Grade X12 Controller version
S : Standard grade operating temp. 0ºC~+70ºC
W : Wide temp. grade operating temp. -40ºC~+85ºC A, B, C, D…..K
X13 Controller grade
X2 The material of casing
C : Commercial grade
P : Plastic frame
Adapter R : Rugged metal frame Product category T : Toshiba NAND flash IC
X14
Flash IC brand
X4
X5
X3
Flash IC type
X15
CFA : CFast™ card
X6 X7 X8 X9 Capacity M : MLC-NAND flash IC
X16 X17 aSLC Technology
016G : 16GB
Card-drive 064G : 64GB Blank : Standard product w/o thermal sensor and conformal-coating
AS : aSLC Technology extends MLC products’ lifespan
032G : 32GB
X20
Reserved for specific requirements
X19
Controller
X11
T : Thermal Sensor (optional)
P : PHANES Series
C : Conformal coating (optional)
