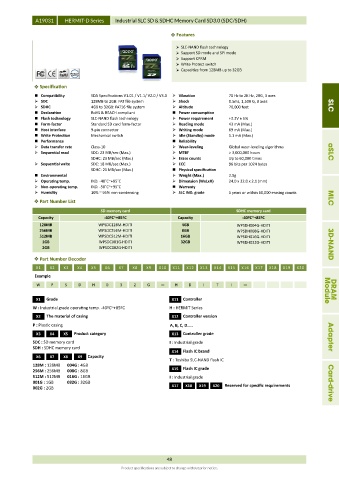

A19031 HERMIT-D Series Industrial SLC SD & SDHC Memory Card SD3.0 (SDC/SDH)

 Features

 SLC-NAND flash technology
 Support SD mode and SPI mode
 Support CPRM
 Write Protect switch
 Capacities from 128MB up to 32GB

 Specification
 Compatibility SDA Specifications V1.01 / V1.1/ V2.0 / V3.0  Vibration 70 Hz to 2K Hz, 20G, 3 axes
 SDC 128MB to 2GB: FAT file system  Shock 0.5ms, 1,500 G, 3 axes
 SDHC 4GB to 32GB: FAT16 file system  Altitude 70,000 feet SLC
 Declaration RoHS & REACH compliant  Power consumption
 Flash technology SLC-NAND flash technology  Power requirement +3.3V ± 5%
 Form-factor Standard SD card form-factor  Reading mode 43 mA (Max.)
 Host interface 9-pin connector  Writing mode 69 mA (Max.)
 Write Protection Mechanical switch  Idle (Standby) mode 1.1 mA (Max.)
 Performance  Reliability
 Data transfer rate Class-10  Wear-leveling Global wear-leveling algorithms
 Sequential read SDC: 23 MB/sec (Max.)  MTBF > 3,000,000 hours aSLC
SDHC: 23 MB/sec (Max.)  Erase counts Up to 60,000 times
 Sequential write SDC: 18 MB/sec (Max.)  ECC 96 bits per 1024 bytes
SDHC: 21 MB/sec (Max.)  Physical specification
 Environmental  Weight (Max.) 2.5g
 Operating temp. IND. -40˚C~+85˚C  Dimension (WxLxH) 24.0 x 32.0 x 2.1 (mm)
 Non-operating temp. IND. -50˚C~+95˚C  Warranty
 Humidity 10% ~ 95% non-condensing  SLC IND. grade 5 years or within 60,000 erasing counts
 Part Number List MLC
SD memory card SDHC memory card
Capacity -40ºC~+85ºC Capacity -40ºC~+85ºC
128MB WPSDC128M-HDITI 4GB WPSDH004G-HDITI
256MB WPSDC256M-HDITI 8GB WPSDH008G-HDITI
512MB WPSDC512M-HDITI 16GB WPSDH016G-HDITI
1GB WPSDC001G-HDITI 32GB WPSDH032G-HDITI 3D-NAND
2GB WPSDC002G-HDITI
 Part Number Decoder
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example
W P S D H 0 3 2 G H D I T I Module DRAM

X1 Grade X11 Controller
W : Industrial grade operating temp. -40ºC~+85ºC H : HERMIT Series
X2 The material of casing X12 Controller version
P : Plastic casing A, B, C, D…..
X3 X4 X5 Product category X13 Controller grade Adapter
SDC : SD memory card I : Industrial grade
SDH : SDHC memory card
X14 Flash IC brand
X6 X7 X8 X9 Capacity
T : Toshiba SLC-NAND flash IC
128M : 128MB 004G : 4GB
256M : 256MB 008G : 8GB X15 Flash IC grade
512M : 512MB 016G : 16GB I : Industrial grade
001G : 1GB 032G : 32GB Card-drive
002G : 2GB X17 X18 X19 X20 Reserved for specific requirements

48
Product specifications are subject to change without prior notice.
