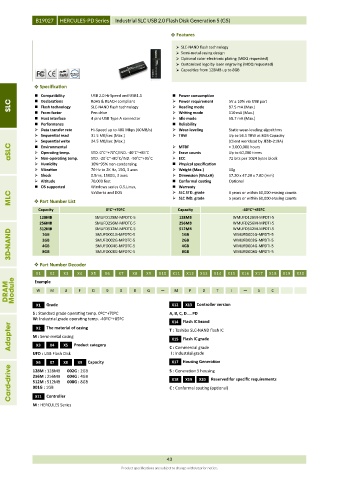

B19027 HERCULES-PD Series Industrial SLC USB 2.0 Flash Disk Generation 5 (G5)

 Features

 SLC-NAND flash technology
 Semi-metal casing design
 Optional color electronic plating (MOQ requested)
 Customized logo by laser engraving (MOQ requested)
 Capacities from 128MB up to 8GB

 Specification
 Compatibility USB 2.0 Hi-Speed and USB1.1  Power consumption
SLC  Declarations RoHS & REACH compliant  Power requirement 5V ± 10% via USB port

SLC-NAND flash technology
Reading mode

97.5 mA (Max.)
Flash technology
 From-factor Pen drive  Writing mode 110 mA (Max.)
 Host interface 4 pins USB Type A connector  Idle mode 58.7 mA (Max.)
 Performance  Reliability
 Data transfer rate Hi-Speed up to 480 Mbps (60MB/s)  Wear-leveling Static wear-leveling algorithms
 Sequential read 31.5 MB/sec (Max.)  TBW Up to 56.1 TBW at 8GB Capacity
 Sequential write 24.5 MB/sec (Max.) (Client workload by JESD-219A)
aSLC  Environmental STD. 0˚C~+70˚C/IND. -40˚C~+85˚C  MTBF > 3,000,000 hours
Up to 60,000 times

Erase counts
Operating temp.


ECC
72 bits per 1024 bytes block

Non-operating temp.
STD. -20˚C~+80˚C/IND. -50˚C~+95˚C
 Humidity 10%~95% non-condensing  Physical specification
 Vibration 70 Hz to 2K Hz, 15G, 3 axes  Weight (Max.) 10g
 Shock 0.5ms, 1500G, 3 axes  Dimension (WxLxH) 17.20 x 47.20 x 7.80 (mm)
 Altitude 70,000 feet  Conformal coating Optional
 OS supported Windows series O.S.Linux,  Warranty 3 years or within 60,000 erasing counts
VxWorks and DOS

SLC STD. grade
MLC  Part Number List  SLC IND. grade 5 years or within 60,000 erasing counts
Capacity 0ºC~+70ºC Capacity -40ºC~+85ºC
128MB SMUFD128M-MPDTC-5 128MB WMUFD128M-MPDTI-5
256MB SMUFD256M-MPDTC-5 256MB WMUFD256M-MPDTI-5
WMUFD512M-MPDTI-5
SMUFD512M-MPDTC-5
512MB
512MB
3D-NAND 1GB SMUFD001G-MPDTC-5 1GB WMUFD001G-MPDTI-5
WMUFD002G-MPDTI-5
2GB
2GB
SMUFD002G-MPDTC-5
4GB
4GB
WMUFD004G-MPDTI-5
SMUFD004G-MPDTC-5
8GB
WMUFD008G-MPDTI-5
SMUFD008G-MPDTC-5
8GB
 Part Number Decoder
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example
DRAM Module W M U F D 0 0 8 G M P D T I 5 C
X1 Grade X12 X13 Controller version
S : Standard grade operating temp. 0ºC~+70ºC A, B, C, D…..PD
W: Industrial grade operating temp. -40ºC~+85ºC X14 Flash IC brand
Adapter M : Semi-metal casing Product category T : Toshiba SLC-NAND flash IC
The material of casing
X2
Flash IC grade
X15
X4
X3
X5
I : Industrial grade
UFD : USB Flash Disk C : Commercial grade
Housing Generation
X17
X9
X6 X7 X8 002G : 2GB Capacity 5 : Generation 5 housing
Card-drive 256M : 256MB 004G : 4GB C : Conformal coating (optional)
128M : 128MB
X19
X20
X18
Reserved for specific requirements
008G : 8GB
512M : 512MB
001G : 1GB
Controller
X11
M : HERCULES Series
43
Product specifications are subject to change without prior notice.
