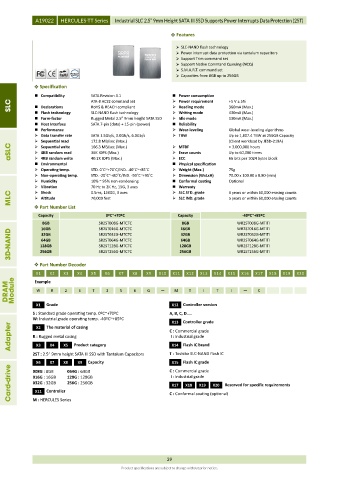

A19022 HERCULES-TT Series Industrial SLC 2.5” 9mm Height SATA III SSD Supports Power Interrupts Data Protection (2ST)

 Features

 SLC-NAND flash technology
 Power interrupt data protection via tantalum capacitors
 Support Trim command set
 Support Native Command Queuing (NCQ)
 S.M.A.R.T. command set
 Capacities from 8GB up to 256GB
 Specification
 Compatibility SATA Revision 3.1  Power consumption
SLC  Declarations ATA-8 ACS2 command set  Power requirement +5 V ± 5%

Reading mode
RoHS & REACH compliant
360mA (Max.)
 Flash technology SLC-NAND flash technology  Writing mode 430mA (Max.)
 Form-factor Rugged Metal 2.5” 9mm height SATA SSD  Idle mode 130mA (Max.)
 Host Interface SATA 7-pin (data) + 15-pin (power)  Reliability
 Performance  Wear-leveling Global wear-leveling algorithms
 Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s  TBW Up to 1,807.4 TBW at 256GB Capacity
 Sequential read 172.8 MB/sec (Max.) (Client workload by JESD-219A)
aSLC  Sequential write 166.3 MB/sec (Max.)  MTBF > 3,000,000 hours

Up to 60,000 times
Erase counts
36K IOPS (Max.)
4KB random read

ECC

4KB random write
40.2K IOPS (Max.)
66 bits per 1024 bytes block

 Environmental  Physical specification
 Operating temp. STD. 0˚C~+70˚C/IND. -40˚C~+85˚C  Weight (Max.) 75g
 Non-operating temp. STD. -20˚C~+80˚C/IND. -50˚C~+95˚C  Dimension (WxLxH) 70.00 x 100.00 x 8.80 (mm)
 Humidity 10% ~ 95% non-condensing  Conformal coating Optional
 Vibration 70 Hz to 2K Hz, 15G, 3 axes  Warranty 3 years or within 60,000 erasing counts
Shock
SLC STD. grade
0.5ms, 1500G, 3 axes


MLC  Altitude 70,000 feet  SLC IND. grade 5 years or within 60,000 erasing counts
 Part Number List
Capacity 0ºC~+70ºC Capacity -40ºC~+85ºC
8GB
8GB SR2ST008G-MTCTC 16GB WR2ST008G-MTITI
WR2ST016G-MTITI
16GB
SR2ST016G-MTCTC
3D-NAND 128GB SR2ST032G-MTCTC 128GB WR2ST032G-MTITI
32GB
32GB
64GB
WR2ST064G-MTITI
SR2ST064G-MTCTC
64GB
SR2ST128G-MTCTC
WR2ST128G-MTITI
256GB
WR2ST256G-MTITI
SR2ST256G-MTCTC
256GB
 Part Number Decoder
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
DRAM Module W R 2 S T 2 5 6 G M T I T I C
Example
X1 Grade X12 Controller version
S : Standard grade operating temp. 0ºC~+70ºC A, B, C, D…..
W: Industrial grade operating temp. -40ºC~+85ºC X13 Controller grade
Adapter R : Rugged metal casing C : Commercial grade
X2
The material of casing
I : Industrial grade
Flash IC brand
X5
Product category
X3
X4
X14
2ST : 2.5” 9mm height SATA III SSD with Tantalum Capacitors T : Toshiba SLC-NAND flash IC
Capacity
Flash IC grade
X15
X6 X7 X8 064G : 64GB C : Commercial grade
X9
Card-drive 016G : 16GB 128G : 128GB I : Industrial grade X20 Reserved for specific requirements
008G : 8GB
032G : 32GB
256G : 256GB
X17
X19
X18
Controller
X11
C : Conformal coating (optional)
M : HERCULES Series
39
Product specifications are subject to change without prior notice.
