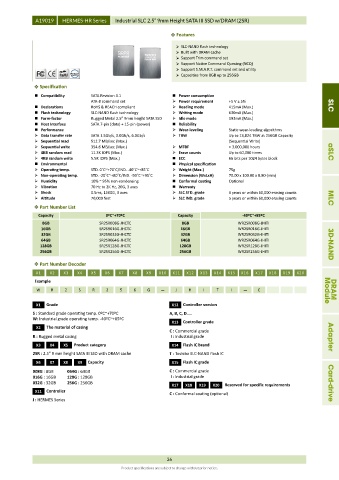

A19019    HERMES-HR Series  Industrial SLC 2.5” 9mm Height SATA III SSD w/DRAM (2SR)

                                                               Features

                                                                SLC-NAND flash technology
                                                                Built with DRAM cache
                                                                Support Trim command set
                                                                Support Native Command Queuing (NCQ)
                                                                Support S.M.A.R.T. command set and utility
                                                                Capacities from 8GB up to 256GB
               Specification
               Compatibility    SATA Revision 3.1              Power consumption
                                 ATA-8 command set              Power requirement  +5 V ± 5%
               Declarations     RoHS & REACH compliant         Reading mode    415mA (Max.)                       SLC
               Flash technology  SLC-NAND flash technology      Writing mode    630mA (Max.)
               Form-factor      Rugged Metal 2.5” 9mm height SATA SSD    Idle mode  193mA (Max.)
               Host Interface   SATA 7-pin (data) + 15-pin (power)    Reliability
               Performance                                     Wear-leveling   Static wear-leveling algorithms
               Data transfer rate  SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s    TBW       Up to 13,824 TBW at 256GB Capacity
               Sequential read  512.7 MB/sec (Max.)                             (Sequential Write)
               Sequential write  354.6 MB/sec (Max.)           MTBF            > 3,000,000 hours
               4KB random read   11.3K IOPS (Max.)             Erase counts    Up to 60,000 times                 aSLC
               4KB random write  5.5K IOPS (Max.)              ECC             66 bits per 1024 bytes block
               Environmental                                   Physical specification
               Operating temp.  STD. 0˚C~+70˚C/IND. -40˚C~+85˚C    Weight (Max.)  75g
               Non-operating temp.  STD. -20˚C~+80˚C/IND. -50˚C~+95˚C    Dimension (WxLxH)  70.00 x 100.00 x 8.80 (mm)
               Humidity         10% ~ 95% non-condensing       Conformal coating  Optional
               Vibration        70 Hz to 2K Hz, 20G, 3 axes    Warranty
               Shock            0.5ms, 1500G, 3 axes           SLC STD. grade  3 years or within 60,000 erasing counts
               Altitude         70,000 feet                    SLC IND. grade  5 years or within 60,000 erasing counts  MLC
               Part Number List
               Capacity               0ºC~+70ºC                 Capacity              -40ºC~+85ºC
                8GB                 SR2SR008G-JHCTC              8GB                 WR2SR008G-JHITI
               16GB                 SR2SR016G-JHCTC              16GB                WR2SR016G-JHITI
               32GB                 SR2SR032G-JHCTC              32GB                WR2SR032G-JHITI
               64GB                 SR2SR064G-JHCTC              64GB                WR2SR064G-JHITI
               128GB                SR2SR128G-JHCTC             128GB                WR2SR128G-JHITI                3D-NAND
               256GB                SR2SR256G-JHCTC             256GB                WR2SR256G-JHITI

               Part Number Decoder
              X1   X2  X3   X4   X5   X6   X7   X8  X9   X10  X11  X12  X13  X14  X15  X16  X17  X18  X19  X20
             Example
              W    R    2    S   R    2    5    6    G         J   H    I    T    I         C                      Module  DRAM

              X1  Grade                                      X12  Controller version
             S : Standard grade operating temp. 0ºC~+70ºC    A, B, C, D…..
             W: Industrial grade operating temp. -40ºC~+85ºC
                                                             X13  Controller grade
              X2  The material of casing
                                                             C : Commercial grade
             R : Rugged metal casing                          I : Industrial grade                                  Adapter
              X3   X4  X5  Product category                  X14  Flash IC brand
             2SR : 2.5” 9 mm height SATA III SSD with DRAM cache  T : Toshiba SLC-NAND flash IC
              X6   X7  X8   X9  Capacity                     X15  Flash IC grade
             008G : 8GB  064G : 64GB                         C : Commercial grade
             016G : 16GB  128G : 128GB                        I : Industrial grade
             032G : 32GB  256G : 256GB                       X17  X18  X19  X20  Reserved for specific requirements  Card-drive
             X11  Controller                                 C : Conformal coating (optional)
             J : HERMES Series











                                                            36
                                            Product specifications are subject to change without prior notice.
