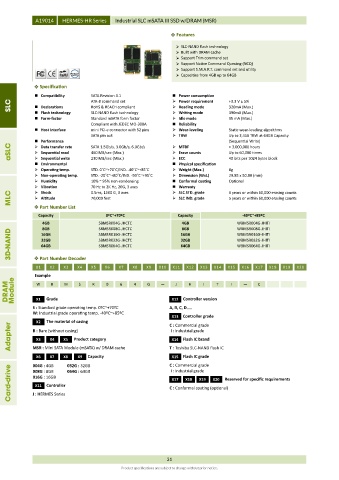

A19014 HERMES-HR Series Industrial SLC mSATA III SSD w/DRAM (MSR)

 Features

 SLC-NAND flash technology
 Built with DRAM cache
 Support Trim command set
 Support Native Command Queuing (NCQ)
 Support S.M.A.R.T. command set and utility
 Capacities from 4GB up to 64GB
 Specification
 Compatibility SATA Revision 3.1  Power consumption
SLC  Declarations ATA-8 command set  Power requirement +3.3 V ± 5%
RoHS & REACH compliant
320mA (Max.)

Reading mode
 Flash technology SLC-NAND flash technology  Writing mode 390mA (Max.)
 Form-factor Standard mSATA form factor  Idle mode 95 mA (Max.)
Compliant with JEDEC MO-300A  Reliability
 Host Interface mini PCI-e connector with 52 pins  Wear-leveling Static wear-leveling algorithms
SATA pin out  TBW Up to 3,456 TBW at 64GB Capacity
 Performance (Sequential Write)
aSLC  Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s  MTBF > 3,000,000 hours
Sequential read

460 MB/sec (Max.)
Erase counts

Up to 60,000 times
230 MB/sec (Max.)
ECC

Sequential write
40 bits per 1024 bytes block

 Environmental  Physical specification
 Operating temp. STD. 0˚C~+70˚C/IND. -40˚C~+85˚C  Weight (Max.) 8g
 Non-operating temp. STD. -20˚C~+80˚C/IND. -50˚C~+95˚C  Dimension (WxL) 29.85 x 50.80 (mm)
 Humidity 10% ~ 95% non-condensing  Conformal coating Optional
 Vibration 70 Hz to 2K Hz, 20G, 3 axes  Warranty 3 years or within 60,000 erasing counts
SLC STD. grade

0.5ms, 1500 G, 3 axes
Shock

MLC  Altitude 70,000 feet  SLC IND. grade 5 years or within 60,000 erasing counts
 Part Number List
Capacity 0ºC~+70ºC Capacity -40ºC~+85ºC
4GB SBMSR004G-JHCTC 4GB WBMSR004G-JHITI
SBMSR008G-JHCTC
WBMSR008G-JHITI
8GB
8GB
3D-NAND 16GB SBMSR016G-JHCTC 16GB WBMSR016G-JHITI
SBMSR032G-JHCTC
WBMSR032G-JHITI
32GB
32GB
WBMSR064G-JHITI
SBMSR064G-JHCTC
64GB
64GB

X4
X3
X1 Part Number Decoder X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
X2
Example
DRAM Module W Grade M S R 0 6 4 G J Controller version T I C
H
I
B
X1
X12
S : Standard grade operating temp. 0ºC~+70ºC A, B, C, D…..
W: Industrial grade operating temp. -40ºC~+85ºC
X13 Controller grade
X2 The material of casing C : Commercial grade
Adapter B : Bare (without casing) I : Industrial grade
Product category
Flash IC brand
X4
X5
X3
X14
MSR : Mini SATA Module (mSATA) w/ DRAM cache
Flash IC grade
Capacity
X6 X7 X8 032G : 32GB T : Toshiba SLC-NAND flash IC
X15
X9
C : Commercial grade
004G : 4GB
Card-drive 008G : 8GB 064G : 64GB I : Industrial grade X20 Reserved for specific requirements
016G : 16GB
X19
X17
X18
Controller
X11
C : Conformal coating (optional)
J : HERMES Series
