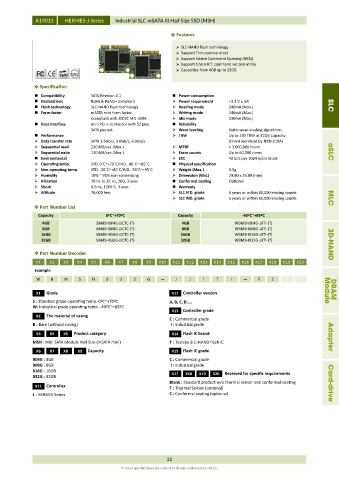

Page 39 - APRO_2020_Catalog

A19015 HERMES-J Series Industrial SLC mSATA III Half Size SSD (MSH)

 Features

 SLC-NAND flash technology
 Support Trim command set
 Support Native Command Queuing (NCQ)
 Support S.M.A.R.T. command set and utility
 Capacities from 4GB up to 32GB

 Specification
 Compatibility SATA Revision 3.1  Power consumption
 Declarations RoHS & REACH compliant  Power requirement +3.3 V ± 5%
 Flash technology SLC-NAND flash technology  Reading mode 240mA (Max.) SLC
 Form-factor mSATA mini form factor  Writing mode 240mA (Max.)
Compliant with JEDEC MO-300B  Idle mode 130mA (Max.)
 Host Interface mini PCI-e connector with 52 pins  Reliability
SATA pin out  Wear-leveling Static wear-leveling algorithms
 Performance  TBW Up to 192 TBW at 32GB Capacity
 Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s (Client workload by JESD-219A)
 Sequential read 220 MB/sec (Max.)  MTBF > 3,000,000 hours
 Sequential write 120 MB/sec (Max.)  Erase counts Up to 60,000 times aSLC
 Environmental  ECC 40 bits per 1024 bytes block
 Operating temp. STD. 0˚C~+70˚C/IND. -40˚C~+85˚C  Physical specification
 Non-operating temp. STD. -20˚C~+80˚C/IND. -50˚C~+95˚C  Weight (Max.) 3.5g
 Humidity 10% ~ 95% non-condensing  Dimension (WxL) 29.80 x 26.80 (mm)
 Vibration 70 Hz to 2K Hz, 20G, 3 axes  Conformal coating Optional
 Shock 0.5ms, 1500 G, 3 axes  Warranty
 Altitude 70,000 feet  SLC STD. grade 3 years or within 60,000 erasing counts
 SLC IND. grade 5 years or within 60,000 erasing counts MLC
 Part Number List
Capacity 0ºC~+70ºC Capacity -40ºC~+85ºC
4GB SBMSH004G-JJCTC-(T) 4GB WBMSH004G-JJITI-(T)
8GB SBMSH008G-JJCTC-(T) 8GB WBMSH008G-JJITI-(T)
16GB SBMSH016G-JJCTC-(T) 16GB WBMSH016G-JJITI-(T)
32GB SBMSH032G-JJCTC-(T) 32GB WBMSH032G-JJITI-(T) 3D-NAND

 Part Number Decoder
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example
W B M S H 0 3 2 G J J I T I T C

X1 Grade X12 Controller version Module DRAM
S : Standard grade operating temp. 0ºC~+70ºC A, B, C, D…..
W: Industrial grade operating temp. -40ºC~+85ºC
X13 Controller grade
X2 The material of casing
C : Commercial grade
B : Bare (without casing) I : Industrial grade
X3 X4 X5 Product category X14 Flash IC brand Adapter
MSH : Mini SATA Module Half Size (mSATA mini) T : Toshiba SLC-NAND flash IC
X6 X7 X8 X9 Capacity X15 Flash IC grade
004G : 4GB C : Commercial grade
008G : 8GB I : Industrial grade
016G : 16GB X17 X18 X19 X20 Reserved for specific requirements
032G : 32GB
Blank : Standard product w/o thermal sensor and conformal-coating Card-drive
X11 Controller T : Thermal Sensor (optional)
J : HERMES Series C : Conformal coating (optional)
