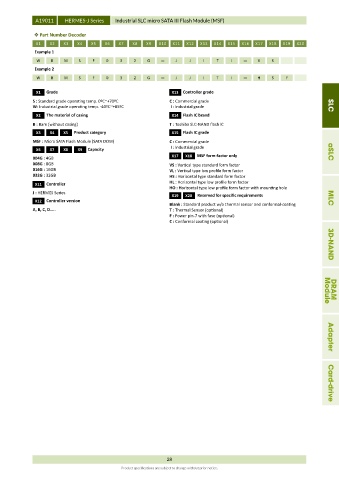

A19011 HERMES-J Series Industrial SLC micro SATA III Flash Module (MSF)

 Part Number Decoder
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example 1
W B M S F 0 3 2 G J J I T I V S
Example 2
W B M S F 0 3 2 G J J I T I H S F

X1 Grade X13 Controller grade
S : Standard grade operating temp. 0ºC~+70ºC C : Commercial grade
W: Industrial grade operating temp. -40ºC~+85ºC I : Industrial grade SLC
X2 The material of casing X14 Flash IC brand
B : Bare (without casing) T : Toshiba SLC-NAND flash IC
X3 X4 X5 Product category X15 Flash IC grade
MSF : Micro SATA Flash Module (SATA DOM) C : Commercial grade
X6 X7 X8 X9 Capacity I : Industrial grade aSLC
004G : 4GB X17 X18 MSF form-factor only
008G : 8GB VS : Vertical type standard form factor
016G : 16GB VL : Vertical type low profile form factor
032G : 32GB HS : Horizontal type standard form factor
X11 Controller HL : Horizontal type low profile form factor
HO : Horizontal type low profile form factor with mounting hole
J : HERMES Series
X19 X20 Reserved for specific requirements
X12 Controller version MLC
Blank : Standard product w/o thermal sensor and conformal-coating
A, B, C, D….. T : Thermal Sensor (optional)
F : Power pin-7 with fuse (optional)
C : Conformal coating (optional) Module DRAM
