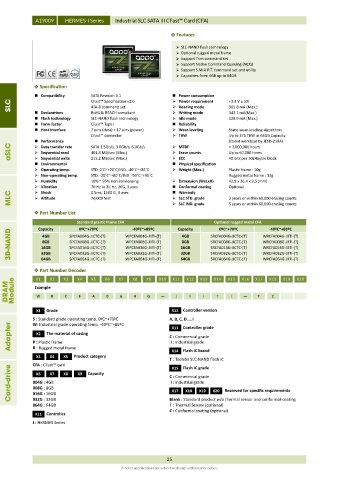

A19009 HERMES-I Series Industrial SLC SATA III CFast™ Card (CFA)

 Features

 SLC-NAND flash technology
 Optional rugged metal frame
 Support Trim command set
 Support Native Command Queuing (NCQ)
 Support S.M.A.R.T. command set and utility
 Capacities from 4GB up to 64GB
 Specification
 Compatibility SATA Revision 3.1  Power consumption
SLC CFast™ Specification v2.0  Power requirement +3.3 V ± 5%
Reading mode
305.8 mA (Max.)
ATA-8 command set

 Declarations RoHS & REACH compliant  Writing mode 342.1 mA(Max.)
 Flash technology SLC-NAND flash technology  Idle mode 128.9 mA (Max.)
 Form-factor CFast™ Type I  Reliability
 Host Interface 7 pins (data) + 17 pins (power)  Wear-leveling Static wear-leveling algorithms
CFast™ connector  TBW Up to 375 TBW at 64GB Capacity
 Performance (Client workload by JESD-219A)
aSLC  Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s  MTBF > 3,000,000 hours

Sequential read
401.9 MB/sec (Max.)

Up to 60,000 times
Erase counts
ECC
40 bits per 1024bytes block

Sequential write
215.2 MB/sec (Max.)

 Environmental  Physical specification
 Operating temp. STD. 0˚C~+70˚C/IND. -40˚C~+85˚C  Weight (Max.) Plastic frame : 10g
 Non-operating temp. STD. -20˚C~+80˚C/IND. -50˚C~+95˚C Rugged metal frame : 13g
 Humidity 10% ~ 95% non-condensing  Dimension (WxLxH) 42.8 x 36.4 x 3.5 (mm)
 Vibration 70 Hz to 2K Hz, 20G, 3 axes  Conformal coating Optional
Shock

0.5ms, 1500 G, 3 axes
Warranty

MLC  Altitude 70,000 feet  SLC STD. grade 3 years or within 60,000 erasing counts

SLC IND. grade
5 years or within 60,000 erasing counts
 Part Number List
Standard plastic frame CFA -40ºC~+85ºC Capacity Optional rugged metal CFA -40ºC~+85ºC
0ºC~+70ºC
0ºC~+70ºC
Capacity
3D-NAND 16GB SPCFA004G-JICTC-(T) WPCFA004G-JIITI-(T) 16GB SRCFA004G-JICTC-(T) WRCFA004G-JIITI-(T)
4GB
4GB
8GB
WPCFA008G-JIITI-(T)
8GB
SRCFA008G-JICTC-(T)
WRCFA008G-JIITI-(T)
SPCFA008G-JICTC-(T)
WPCFA016G-JIITI-(T)
SRCFA016G-JICTC-(T)
SPCFA016G-JICTC-(T)
WRCFA016G-JIITI-(T)
32GB
SPCFA032G-JICTC-(T)
SRCFA032G-JICTC-(T)
WRCFA032G-JIITI-(T)
32GB
WPCFA032G-JIITI-(T)
SPCFA064G-JICTC-(T)
64GB
 Part Number Decoder X5 X6 X7 WPCFA064G-JIITI-(T) X10 X11 64GB X13 SRCFA064G-JICTC-(T) X17 WRCFA064G-JIITI-(T) X20
X19
X1
X18
X16
X15
X12
X14
X4
X9
X8
X2
X3
DRAM Module Example R C F A 0 6 4 G J I I T I T C
W
X1 Grade X12 Controller version
S : Standard grade operating temp. 0ºC~+70ºC A, B, C, D…..I
W: Industrial grade operating temp. -40ºC~+85ºC
Adapter P : Plastic frame C : Commercial grade
Controller grade
X13
The material of casing
X2
I : Industrial grade
R : Rugged metal frame
X3 X4 X5 Product category X14 Flash IC brand
T : Toshiba SLC-NAND flash IC
CFA : CFast™ card Capacity X15 Flash IC grade
Card-drive 004G : 4GB X8 X9 C : Commercial grade X20 Reserved for specific requirements
X6
X7
I : Industrial grade
008G : 8GB
X18
X17
X19
016G : 16GB
032G : 32GB
064G : 64GB Blank : Standard product w/o thermal sensor and conformal-coating
T : Thermal Sensor (optional)
C : Conformal coating (optional)
X11 Controller
J : HERMES Series
25
