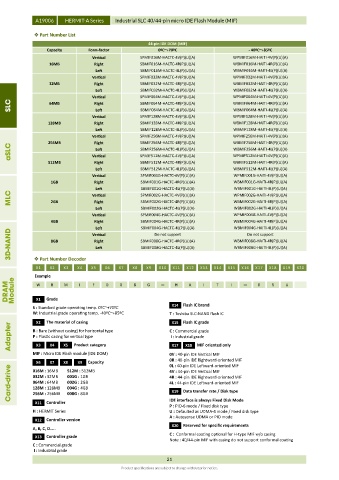

A19006 HERMIT-A Series Industrial SLC 40/44-pin micro IDE Flash Module (MIF)

 Part Number List
44-pin IDE DOM (MIF)
Capacity Form-factor 0ºC~+70ºC - 40ºC~+85ºC
Vertical SPMIF016M-HACTC-4V(P)(U)(A) WPMIF016M-HAITI-4V(P)(U)(A)
16MB Right SBMIF016M-HACTC-4R(P)(U)(A) WBMIF016M-HAITI-4R(P)(U)(A)
Left SBMIF016M-HACTC-4L(P)(U)(A) WBMIF016M-HAITI-4L(P)(U)(A)
Vertical SPMIF032M-HACTC-4V(P)(U)(A) WPMIF032M-HAITI-4V(P)(U)(A)
32MB Right SBMIF032M-HACTC-4R(P)(U)(A) WBMIF032M-HAITI-4R(P)(U)(A)
Left SBMIF032M-HACTC-4L(P)(U)(A) WBMIF032M-HAITI-4L(P)(U)(A)
Vertical SPMIF064M-HACTC-4V(P)(U)(A) WPMIF064M-HAITI-4V(P)(U)(A)
SLC 64MB Right SBMIF064M-HACTC-4R(P)(U)(A) WBMIF064M-HAITI-4R(P)(U)(A)
SBMIF064M-HACTC-4L(P)(U)(A)
WBMIF064M-HAITI-4L(P)(U)(A)
Left
Vertical SPMIF128M-HACTC-4V(P)(U)(A) WPMIF128M-HAITI-4V(P)(U)(A)
128MB Right SBMIF128M-HACTC-4R(P)(U)(A) WBMIF128M-HAITI-4R(P)(U)(A)
Left SBMIF128M-HACTC-4L(P)(U)(A) WBMIF128M-HAITI-4L(P)(U)(A)
Vertical SPMIF256M-HACTC-4V(P)(U)(A) WPMIF256M-HAITI-4V(P)(U)(A)
256MB Right SBMIF256M-HACTC-4R(P)(U)(A) WBMIF256M-HAITI-4R(P)(U)(A)
aSLC Vertical SPMIF512M-HACTC-4V(P)(U)(A) WPMIF512M-HAITI-4V(P)(U)(A)
Left
WBMIF256M-HAITI-4L(P)(U)(A)
SBMIF256M-HACTC-4L(P)(U)(A)
512MB Right SBMIF512M-HACTC-4R(P)(U)(A) WBMIF512M-HAITI-4R(P)(U)(A)
Left SBMIF512M-HACTC-4L(P)(U)(A) WBMIF512M-HAITI-4L(P)(U)(A)
Vertical SPMIF001G-HACTC-4V(P)(U)(A) WPMIF001G-HAITI-4V(P)(U)(A)
1GB Right SBMIF001G-HACTC-4R(P)(U)(A) WBMIF001G-HAITI-4R(P)(U)(A)
Left SBMIF001G-HACTC-4L(P)(U)(A) WBMIF001G-HAITI-4L(P)(U)(A)
MLC 2GB Vertical SPMIF002G-HACTC-4V(P)(U)(A) WPMIF002G-HAITI-4V(P)(U)(A)
SBMIF002G-HACTC-4R(P)(U)(A)
WBMIF002G-HAITI-4R(P)(U)(A)
Right
Left SBMIF002G-HACTC-4L(P)(U)(A) WBMIF002G-HAITI-4L(P)(U)(A)
Vertical SPMIF004G-HACTC-4V(P)(U)(A) WPMIF004G-HAITI-4V(P)(U)(A)
4GB Right SBMIF004G-HACTC-4R(P)(U)(A) WBMIF004G-HAITI-4R(P)(U)(A)
Left SBMIF004G-HACTC-4L(P)(U)(A) WBMIF004G-HAITI-4L(P)(U)(A)
3D-NAND 8GB Right SBMIF008G-HACTC-4R(P)(U)(A) WBMIF008G-HAITI-4R(P)(U)(A)
Do not support
Vertical
Do not support
WBMIF008G-HAITI-4L(P)(U)(A)
SBMIF008G-HACTC-4L(P)(U)(A)
Left

X4
X1 Part Number Decoder X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
X3
X2
Example
DRAM Module W Grade M I F 0 0 8 G H A I T I 0 R U
B
X1
S : Standard grade operating temp. 0ºC~+70ºC X14 Flash IC brand
W: Industrial grade operating temp. -40ºC~+85ºC T : Toshiba SLC-NAND flash IC
X2 The material of casing X15 Flash IC grade
Adapter B : Bare (without casing) for horizontal type C : Commercial grade
I : Industrial grade
P : Plastic casing for vertical type
Product category
MIF oriented only
X4
X5
X3
X18
X17
MIF : Micro IDE Flash module (IDE DOM) 0V : 40-pin IDE Vertical MIF
Capacity
X9
X6 X7 X8 512M : 512MB 0R : 40-pin IDE Rightward-oriented MIF
0L : 40-pin IDE Leftward-oriented MIF
Card-drive 032M : 32MB 001G : 1GB 4R : 44-pin IDE Rightward-oriented MIF
016M : 16MB
4V : 44-pin IDE Vertical MIF
002G : 2GB
064M : 64MB
4L : 44-pin IDE Leftward-oriented MIF
004G : 4GB
128M : 128MB
X19
Data transfer rate / Disk type
256M : 256MB
X11 Controller 008G : 8GB IDE interface is always Fixed Disk Mode
P : PIO-6 mode / Fixed disk type
H : HERMIT Series U : Defaulted as UDMA-4 mode / Fixed disk type
A : Autosense UDMA or PIO mode
X12 Controller version
X20 Reserved for specific requirements
A, B, C, D…..
X13 Controller grade C : Conformal coating optional for H-type MIF w/o casing
Note : 40/44-pin MIF with casing do not support conformal coating
C : Commercial grade
I : Industrial grade
21
Product specifications are subject to change without prior notice.
