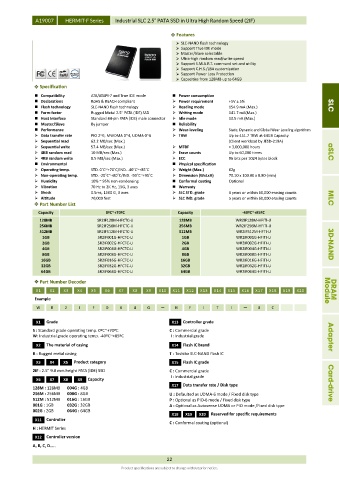

A19007 HERMIT-F Series Industrial SLC 2.5” PATA SSD in Ultra High Random Speed (2IF)

 Features
 SLC-NAND flash technology
 Support True IDE mode
 Master/Slave selectable
 Ultra-high random read/write speed
 Support S.M.A.R.T. command set and utility
 Support C.H.S./LBA customization
 Support Power Loss Protection
 Capacities from 128MB up to 64GB
 Specification
 Compatibility ATA/ATAPI-7 and True IDE mode  Power consumption
 Declarations RoHS & REACH compliant  Power requirement +5V ± 5%
 Flash technology SLC-NAND flash technology  Reading mode 154.9 mA (Max.) SLC
 Form-factor Rugged Metal 2.5" PATA (IDE) SSD  Writing mode 141.7 mA(Max.)
 Host Interface Standard 44-pin PATA (IDE) male connector  Idle mode 10.5 mA (Max.)
 Master/Slave By jumper  Reliability
 Performance  Wear-leveling Static, Dynamic and Global Wear Leveling algorithms
 Data transfer rate PIO 2~6, MWDMA 0~4, UDMA 0~6  TBW Up to 451.7 TBW at 64GB Capacity
 Sequential read 62.2 MB/sec (Max.) (Client workload by JESD-219A)
 Sequential write 57.4 MB/sec (Max.)  MTBF > 3,000,000 hours
 4KB random read 10 MB/sec (Max.)  Erase counts Up to 60,000 times aSLC
 4KB random write 8.5 MB/sec (Max.)  ECC 96 bits per 1024 bytes block
 Environmental  Physical specification
 Operating temp. STD. 0˚C~+70˚C/IND. -40˚C~+85˚C  Weight (Max.) 62g
 Non-operating temp. STD. -20˚C~+80˚C/IND. -50˚C~+95˚C  Dimension (WxLxH) 70.10 x 100.00 x 8.80 (mm)
 Humidity 10% ~ 95% non-condensing  Conformal coating Optional
 Vibration 70 Hz to 2K Hz, 15G, 3 axes  Warranty
 Shock 0.5ms, 1500 G, 3 axes  SLC STD. grade 3 years or within 60,000 erasing counts
 Altitude 70,000 feet  SLC IND. grade 5 years or within 60,000 erasing counts MLC
 Part Number List
Capacity 0ºC~+70ºC Capacity -40ºC~+85ºC
128MB SR2IF128M-HFCTC-U 128MB WR2IF128M-HFITI-U
256MB SR2IF256M-HFCTC-U 256MB WR2IF256M-HFITI-U
512MB SR2IF512M-HFCTC-U 512MB WR2IF512M-HFTI-U
1GB SR2IF001G-HFCTC-U 1GB WR2IF001G-HFITI-U
2GB SR2IF002G-HFCTC-U 2GB WR2IF002G-HFITI-U 3D-NAND
4GB SR2IF004G-HFCTC-U 4GB WR2IF004G-HFITI-U
8GB SR2IF008G-HFCTC-U 8GB WR2IF008G-HFITI-U
16GB SR2IF016G-HFCTC-U 16GB WR2IF016G-HFITI-U
32GB SR2IF032G-HFCTC-U 32GB WR2IF032G-HFITI-U
64GB SR2IF064G-HFCTC-U 64GB WR2IF064G-HFITI-U
 Part Number Decoder
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20 Module DRAM
Example
W R 2 I F 0 6 4 G H F I T I U C

X1 Grade X13 Controller grade
S : Standard grade operating temp. 0ºC~+70ºC C : Commercial grade
W: Industrial grade operating temp. -40ºC~+85ºC I : Industrial grade Adapter
X2 The material of casing X14 Flash IC brand
R : Rugged metal casing T : Toshiba SLC-NAND flash IC
X3 X4 X5 Product category X15 Flash IC grade
2IF : 2.5” 9.0 mm height PATA (IDE) SSD C : Commercial grade
I : Industrial grade
X6 X7 X8 X9 Capacity
X17 Data transfer rate / Disk type Card-drive
128M : 128MB 004G : 4GB
256M : 256MB 008G : 8GB U : Defaulted as UDMA-6 mode / Fixed disk type
512M : 512MB 016G : 16GB P : Optional as PIO-6 mode / Fixed disk type
001G : 1GB 032G : 32GB A : Optional as Autosense UDMA or PIO mode /Fixed disk type
002G : 2GB 064G : 64GB
X18 X19 X20 Reserved for specific requirements
X11 Controller
C : Conformal coating (optional)
H : HERMIT Series
X12 Controller version
A, B, C, D…..

22
Product specifications are subject to change without prior notice.
