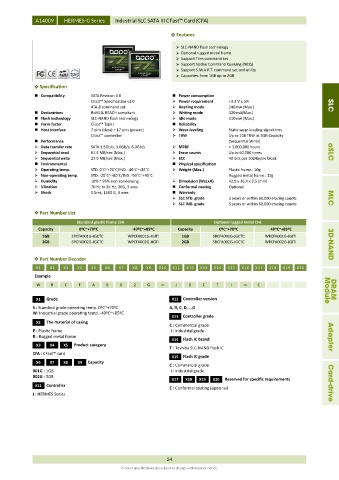

A14009 HERMES-G Series Industrial SLC SATA III CFast™ Card (CFA)

 Features

 SLC-NAND flash technology
 Optional rugged metal frame
 Support Trim command set
 Support Native Command Queuing (NCQ)
 Support S.M.A.R.T. command set and utility
 Capacities from 1GB up to 2GB
 Specification
 Compatibility SATA Revision 3.0  Power consumption
CFast™ Specification v2.0  Power requirement +3.3 V ± 5%
ATA-8 command set  Reading mode 240 mA (Max.) SLC
 Declarations RoHS & REACH compliant  Writing mode 320 mA(Max.)
 Flash technology SLC-NAND flash technology  Idle mode 110 mA (Max.)
 Form-factor CFast™ Type I  Reliability
 Host Interface 7 pins (data) + 17 pins (power)  Wear-leveling Static wear-leveling algorithms
CFast™ connector  TBW Up to 108 TBW at 2GB Capacity
 Performance (Sequential Write)
 Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s  MTBF > 3,000,000 hours
 Sequential read 61.4 MB/sec (Max.)  Erase counts Up to 60,000 times aSLC
 Sequential write 27.9 MB/sec (Max.)  ECC 40 bits per 1024bytes block
 Environmental  Physical specification
 Operating temp. STD. 0˚C~+70˚C/IND. -40˚C~+85˚C  Weight (Max.) Plastic frame : 10g
 Non-operating temp. STD. -20˚C~+80˚C/IND. -50˚C~+95˚C Rugged metal frame : 13g
 Humidity 10% ~ 95% non-condensing  Dimension (WxLxH) 42.8 x 36.4 x 3.5 (mm)
 Vibration 70 Hz to 2K Hz, 20G, 3 axes  Conformal coating Optional
 Shock 0.5ms, 1500 G, 3 axes  Warranty
 SLC STD. grade 3 years or within 60,000 erasing counts MLC
 SLC IND. grade 5 years or within 60,000 erasing counts
 Part Number List
Standard plastic frame CFA Optional rugged metal CFA
Capacity 0ºC~+70ºC -40ºC~+85ºC Capacity 0ºC~+70ºC -40ºC~+85ºC
1GB SPCFA001G-JGCTC WPCFA001G-JGITI 1GB SRCFA001G-JGCTC WRCFA001G-JGITI
2GB SPCFA002G-JGCTC WPCFA002G-JIGTI 2GB SRCFA002G-JGCTC WRCFA002G-JGITI 3D-NAND

 Part Number Decoder
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example
W R C F A 0 0 2 G J G C T I C Module DRAM

X1 Grade X12 Controller version
S : Standard grade operating temp. 0ºC~+70ºC A, B, C, D…..G
W: Industrial grade operating temp. -40ºC~+85ºC
X13 Controller grade
X2 The material of casing
C : Commercial grade
P : Plastic frame I : Industrial grade
R : Rugged metal frame Adapter
X14 Flash IC brand
X3 X4 X5 Product category
T : Toshiba SLC-NAND flash IC
CFA : CFast™ card
X15 Flash IC grade
X6 X7 X8 X9 Capacity
C : Commercial grade
001G : 1GB I : Industrial grade
002G : 2GB
X17 X18 X19 X20 Reserved for specific requirements
X11 Controller C : Conformal coating (optional) Card-drive
J : HERMES Series

24
Product specifications are subject to change without prior notice.
