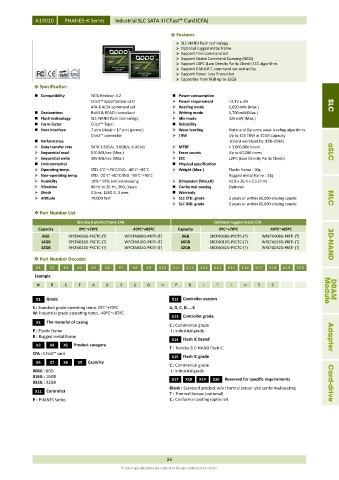

A19010 PHANES-K Series Industrial SLC SATA III CFast™ Card (CFA)

 Features
 SLC-NAND flash technology
 Optional rugged metal frame
 Support Trim command set
 Support Native Command Queuing (NCQ)
 Support LDPC (Low Density Parity Check) ECC algorithm
 Support S.M.A.R.T. command set and utility
 Support Power Loss Protection
 Capacities from 8GB up to 32GB
 Specification
 Compatibility SATA Revision 3.2  Power consumption
CFast™ Specification v2.0  Power requirement +3.3V ± 5%
ATA-8 ACS4 command set  Reading mode 1,650 mW (Max.) SLC
 Declarations RoHS & REACH compliant  Writing mode 1,700 mW(Max.)
 Flash technology SLC-NAND flash technology  Idle mode 325 mW (Max.)
 Form-factor CFast™ Type I  Reliability
 Host Interface 7 pins (data) + 17 pins (power)  Wear-leveling Static and Dynamic wear-leveling algorithms
CFast™ connector  TBW Up to 325 TBW at 32GB Capacity
 Performance (Client workload by JESD-219A)
 Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s  MTBF > 3,000,000 hours
 Sequential read 510 MB/sec (Max.)  Erase counts Up to 60,000 times aSLC
 Sequential write 305 MB/sec (Max.)  ECC LDPC (Low Density Parity Check)
 Environmental  Physical specification
 Operating temp. STD. 0˚C~+70˚C/IND. -40˚C~+85˚C  Weight (Max.) Plastic frame : 10g
 Non-operating temp. STD. -20˚C~+80˚C/IND. -50˚C~+95˚C Rugged metal frame : 13g
 Humidity 10% ~ 95% non-condensing  Dimension (WxLxH) 42.8 x 36.4 x 3.5 (mm)
 Vibration 80 Hz to 2K Hz, 20G, 3axes  Conformal coating Optional
 Shock 0.5ms, 1500 G, 3 axes  Warranty
 Altitude 70,000 feet  SLC STD. grade 3 years or within 60,000 erasing counts MLC
 SLC IND. grade 5 years or within 60,000 erasing counts
 Part Number List
Standard plastic frame CFA Optional rugged metal CFA
Capacity 0ºC~+70ºC -40ºC~+85ºC Capacity 0ºC~+70ºC -40ºC~+85ºC
8GB SPCFA008G-PKCTC-(T) WPCFA008G-PKITI-(T) 8GB SRCFA008G-PKCTC-(T) WRCFA008G-PKITI-(T)
16GB SPCFA016G-PKCTC-(T) WPCFA016G-PKITI-(T) 16GB SRCFA016G-PKCTC-(T) WRCFA016G-PKITI-(T) 3D-NAND
32GB SPCFA032G-PKCTC-(T) WPCFA032G-PKITI-(T) 32GB SRCFA032G-PKCTC-(T) WRCFA032G-PKITI-(T)
 Part Number Decoder
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example
W R C F A 0 3 2 G P K I T I T C Module DRAM

X1 Grade X12 Controller version
S : Standard grade operating temp. 0ºC~+70ºC A, B, C, D…..K
W: Industrial grade operating temp. -40ºC~+85ºC
X13 Controller grade
X2 The material of casing
C : Commercial grade
P : Plastic frame I : Industrial grade
R : Rugged metal frame Adapter
X14 Flash IC brand
X3 X4 X5 Product category
T : Toshiba SLC-NAND flash IC
CFA : CFast™ card
X15 Flash IC grade
X6 X7 X8 X9 Capacity
C : Commercial grade
008G : 8GB I : Industrial grade
016G : 16GB X17 X18 X19 X20 Reserved for specific requirements
032G : 32GB Card-drive
Blank : Standard product w/o thermal sensor and conformal-coating
X11 Controller T : Thermal Sensor (optional)
P : PHANES Series C : Conformal coating (optional)

26
Product specifications are subject to change without prior notice.
