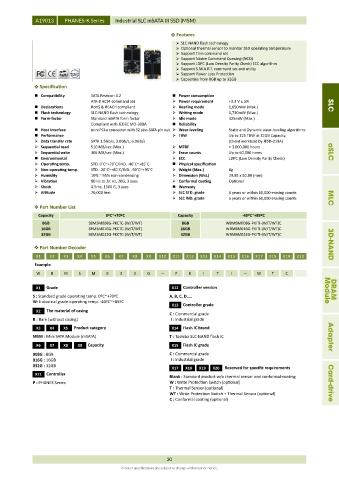

A19013 PHANES-K Series Industrial SLC mSATA III SSD (MSM)

 Features
 SLC-NAND flash technology
 Optional thermal sensor to monitor SSD operating temperature
 Support Trim command set
 Support Native Command Queuing (NCQ)
 Support LDPC (Low Density Parity Check) ECC algorithm
 Support S.M.A.R.T. command set and utility
 Support Power Loss Protection
 Capacities from 8GB up to 32GB
 Specification
 Compatibility SATA Revision 3.2  Power consumption
ATA-8 ACS4 command set  Power requirement +3.3 V ± 5%
 Declarations RoHS & REACH compliant  Reading mode 1,650mW (Max.) SLC
 Flash technology SLC-NAND flash technology  Writing mode 1,730mW (Max.)
 Form-factor Standard mSATA form factor  Idle mode 325mW (Max.)
Compliant with JEDEC MO-300A  Reliability
 Host Interface mini PCI-e connector with 52 pins SATA pin out  Wear-leveling Static and Dynamic wear-leveling algorithms
 Performance  TBW Up to 325 TBW at 32GB Capacity.
 Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s (Client workload by JESD-219A)
 Sequential read 510 MB/sec (Max.)  MTBF > 3,000,000 hours
 Sequential write 305 MB/sec (Max.)  Erase counts Up to 60,000 times aSLC
 Environmental  ECC LDPC (Low Density Parity Check)
 Operating temp. STD. 0˚C~+70˚C/IND. -40˚C~+85˚C  Physical specification
 Non-operating temp. STD. -20˚C~+80˚C/IND. -50˚C~+95˚C  Weight (Max.) 8g
 Humidity 10% ~ 95% non-condensing  Dimension (WxL) 29.85 x 50.80 (mm)
 Vibration 80 Hz to 2K Hz, 20G, 3 axes  Conformal coating Optional
 Shock 0.5ms, 1500 G, 3 axes  Warranty
 Altitude 70,000 feet  SLC STD. grade 3 years or within 60,000 erasing counts
 SLC IND. grade 5 years or within 60,000 erasing counts MLC
 Part Number List
Capacity 0ºC~+70ºC Capacity -40ºC~+85ºC
8GB SBMSM008G-PKCTC-(W/T/WT) 8GB WBMSM008G-PKITI-(W/T/WT)C
16GB SBMSM016G-PKCTC-(W/T/WT) 16GB WBMSM016G-PKITI-(W/T/WT)C
32GB SBMSM032G-PKCTC-(W/T/WT) 32GB WBMSM032G-PKITI-(W/T/WT)C

 Part Number Decoder 3D-NAND
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example
W B M S M 0 3 2 G P K I T I W T C

X1 Grade X12 Controller version Module DRAM
S : Standard grade operating temp. 0ºC~+70ºC A, B, C, D…..
W: Industrial grade operating temp. -40ºC~+85ºC
X13 Controller grade
X2 The material of casing
C : Commercial grade
B : Bare (without casing) I : Industrial grade
X3 X4 X5 Product category X14 Flash IC brand
MSM : Mini SATA Module (mSATA) T : Toshiba SLC-NAND flash IC Adapter
X6 X7 X8 X9 Capacity X15 Flash IC grade
008G : 8GB C : Commercial grade
016G : 16GB I : Industrial grade
032G : 32GB X17 X18 X19 X20 Reserved for specific requirements
X11 Controller Blank : Standard product w/o thermal sensor and conformal-coating
P : PHANES Series W : Write Protection Switch (optional) Card-drive
T : Thermal Sensor (optional)
WT : Write Protection Switch + Thermal Sensor (optional)
C : Conformal coating (optional)

30
Product specifications are subject to change without prior notice.
