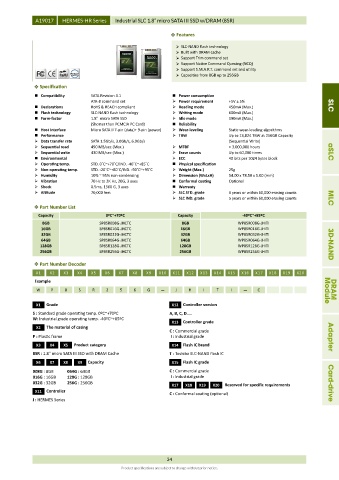

A19017 HERMES-HR Series Industrial SLC 1.8” micro SATA III SSD w/DRAM (8SR)

 Features

 SLC-NAND flash technology
 Built with DRAM cache
 Support Trim command set
 Support Native Command Queuing (NCQ)
 Support S.M.A.R.T. command set and utility
 Capacities from 8GB up to 256GB
 Specification
 Compatibility SATA Revision 3.1  Power consumption
ATA-8 command set  Power requirement +5V ± 5%
 Declarations RoHS & REACH compliant  Reading mode 450mA (Max.) SLC
 Flash technology SLC-NAND flash technology  Writing mode 600mA (Max.)
 Form-factor 1.8" micro SATA SSD  Idle mode 190mA (Max.)
(Shorter than PCMCIA PC Card)  Reliability
 Host Interface Micro SATA II 7-pin (data)+ 9-pin (power)  Wear-leveling Static wear-leveling algorithms
 Performance  TBW Up to 13,824 TBW at 256GB Capacity
 Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s (Sequential Write)
 Sequential read 490 MB/sec (Max.)  MTBF > 3,000,000 hours
 Sequential write 430 MB/sec (Max.)  Erase counts Up to 60,000 times aSLC
 Environmental  ECC 40 bits per 1024 bytes block
 Operating temp. STD. 0˚C~+70˚C/IND. -40˚C~+85˚C  Physical specification
 Non-operating temp. STD. -20˚C~+80˚C/IND. -50˚C~+95˚C  Weight (Max.) 25g
 Humidity 10% ~ 95% non-condensing  Dimension (WxLxH) 54.00 x 78.50 x 5.00 (mm)
 Vibration 70 Hz to 2K Hz, 20G, 3 axes  Conformal coating Optional
 Shock 0.5ms, 1500 G, 3 axes  Warranty
 Altitude 70,000 feet  SLC STD. grade 3 years or within 60,000 erasing counts
 SLC IND. grade 5 years or within 60,000 erasing counts MLC
 Part Number List
Capacity 0ºC~+70ºC Capacity -40ºC~+85ºC
8GB SP8SR008G-JHCTC 8GB WP8SR008G-JHITI
16GB SP8SR016G-JHCTC 16GB WP8SR016G-JHITI
32GB SP8SR032G-JHCTC 32GB WP8SR032G-JHITI
64GB SP8SR064G-JHCTC 64GB WP8SR064G-JHITI
128GB SP8SR128G-JHCTC 128GB WP8SR128G-JHITI 3D-NAND
256GB SP8SR256G-JHCTC 256GB WP8SR256G-JHITI

 Part Number Decoder
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example
W P 8 S R 2 5 6 G J H I T I C Module DRAM

X1 Grade X12 Controller version
S : Standard grade operating temp. 0ºC~+70ºC A, B, C, D…..
W: Industrial grade operating temp. -40ºC~+85ºC
X13 Controller grade
X2 The material of casing
C : Commercial grade
P : Plastic frame I : Industrial grade Adapter
X3 X4 X5 Product category X14 Flash IC brand
8SR : 1.8" micro SATA III SSD with DRAM Cache T : Toshiba SLC-NAND flash IC
X6 X7 X8 X9 Capacity X15 Flash IC grade
008G : 8GB 064G : 64GB C : Commercial grade
016G : 16GB 128G : 128GB I : Industrial grade
032G : 32GB 256G : 256GB X17 X18 X19 X20 Reserved for specific requirements Card-drive
X11 Controller C : Conformal coating (optional)
J : HERMES Series

34
Product specifications are subject to change without prior notice.
