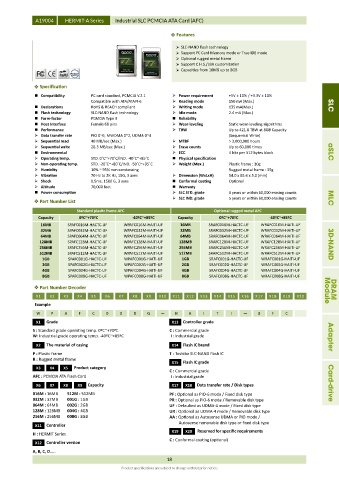

A19004 HERMIT-A Series Industrial SLC PCMCIA ATA Card (AFC)

 Features

 SLC-NAND flash technology
 Support PC Card Memory mode or True IDE mode
 Optional rugged metal frame
 Support C.H.S./LBA customization
 Capacities from 16MB up to 8GB

 Specification
 Compatibility PC card standard, PCMCIA V.2.1  Power requirement +5V ± 10% / +3.3V ± 10%
Compatible with ATA/ATAPI-6  Reading mode 150 mA (Max.)
 Declarations RoHS & REACH compliant  Writing mode 135 mA(Max.) SLC
 Flash technology SLC-NAND flash technology  Idle mode 2.4 mA (Max.)
 Form-factor PCMCIA Type II  Reliability
 Host Interface Female 68 pins  Wear-leveling Static wear-leveling algorithms
 Performance  TBW Up to 421.8 TBW at 8GB Capacity
 Data transfer rate PIO 0~6, MWDMA 0~2, UDMA 0~4 (Sequential Write)
 Sequential read 40 MB/sec (Max.)  MTBF > 3,000,000 hours
 Sequential write 28.3 MB/sec (Max.)  Erase counts Up to 60,000 times
 Environmental  ECC 4 bits per 512 bytes block aSLC
 Operating temp. STD. 0˚C~+70˚C/IND. -40˚C~+85˚C  Physical specification
 Non-operating temp. STD. -20˚C~+80˚C/IND. -50˚C~+95˚C  Weight (Max.) Plastic frame : 30g
 Humidity 10% ~ 95% non-condensing Rugged metal frame : 35g
 Vibration 70 Hz to 2K Hz, 15G, 3 axes  Dimension (WxLxH) 54.0 x 85.6 x 5.0 (mm)
 Shock 0.5ms, 1500 G, 3 axes  Conformal coating Optional
 Altitude 70,000 feet  Warranty
 Power consumption  SLC STD. grade 3 years or within 60,000 erasing counts
 SLC IND. grade 5 years or within 60,000 erasing counts MLC
 Part Number List
Standard plastic frame AFC Optional rugged metal AFC
Capacity 0ºC~+70ºC -40ºC~+85ºC Capacity 0ºC~+70ºC -40ºC~+85ºC
16MB SPAFC016M-HACTC-UF WPAFC016M-HAITI-UF 16MB SRAFC016M-HACTC-UF WRAFC016M-HAITI-UF
32MB SPAFC032M-HACTC-UF WPAFC032M-HAITI-UF 32MB SRAFC032M-HACTC-UF WRAFC032M-HAITI-UF
64MB SPAFC064M-HACTC-UF WPAFC064M-HAITI-UF 64MB SRAFC064M-HACTC-UF WRAFC064M-HAITI-UF
128MB SPAFC128M-HACTC-UF WPAFC128M-HAITI-UF 128MB SRAFC128M-HACTC-UF WRAFC128M-HAITI-UF 3D-NAND
256MB SPAFC256M-HACTC-UF WPAFC256M-HAITI-UF 256MB SRAFC256M-HACTC-UF WRAFC256M-HAITI-UF
512MB SPAFC512M-HACTC-UF WPAFC512M-HAITI-UF 512MB SRAFC512M-HACTC-UF WRAFC512M-HAITI-UF
1GB SPAFC001G-HACTC-UF WPAFC001G-HAITI-UF 1GB SRAFC001G-HACTC-UF WRAFC001G-HAITI-UF
2GB SPAFC002G-HACTC-UF WPAFC002G-HAITI-UF 2GB SRAFC002G-HACTC-UF WRAFC002G-HAITI-UF
4GB SPAFC004G-HACTC-UF WPAFC004G-HAITI-UF 4GB SRAFC004G-HACTC-UF WRAFC004G-HAITI-UF
8GB SPAFC008G-HACTC-UF WPAFC008G-HAITI-UF 8GB SRAFC008G-HACTC-UF WRAFC008G-HAITI-UF
 Part Number Decoder Module DRAM
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example
W P A F C 0 0 8 G H A I T I U F C
X1 Grade X13 Controller grade
S : Standard grade operating temp. 0ºC~+70ºC C : Commercial grade
W: Industrial grade operating temp. -40ºC~+85ºC I : Industrial grade Adapter
X2 The material of casing X14 Flash IC brand
P : Plastic frame T : Toshiba SLC-NAND flash IC
R : Rugged metal frame
X15 Flash IC grade
X3 X4 X5 Product category
C : Commercial grade
AFC : PCMCIA ATA Flash Card I : Industrial grade
X6 X7 X8 X9 Capacity X17 X18 Data transfer rate / Disk types Card-drive
016M : 16MB 512M : 512MB PF : Optional as PIO-6 mode / Fixed disk type
032M : 32MB 001G : 1GB PR : Optional as PIO-6 mode / Removable disk type
064M : 64MB 002G : 2GB UF : Defaulted as UDMA-4 mode / Fixed disk type
128M : 128MB 004G : 4GB UR : Optional as UDMA-4 mode / Removable disk type
256M : 256MB 008G : 8GB AA : Optional as Autosense UDMA or PIO mode /
X11 Controller Autosense removable disk type or fixed disk type
X19 X20 Reserved for specific requirements
H : HERMIT Series
C : Conformal coating (optional)
X12 Controller version
A, B, C, D…..
18
Product specifications are subject to change without prior notice.
