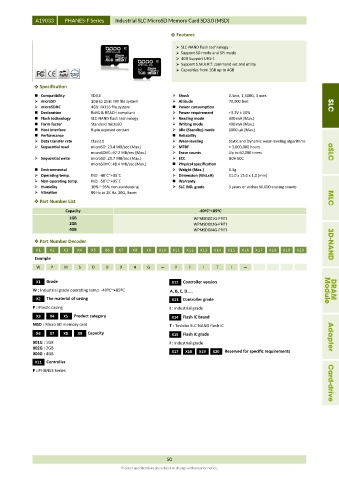

Page 57 - APRO_2020_Catalog

A19033 PHANES-F Series Industrial SLC MicroSD Memory Card SD3.0 (MSD)

 Features

 SLC-NAND flash technology
 Support SD mode and SPI mode
 4GB Support UHS-1
 Support S.M.A.R.T. command set and utility
 Capacities from 1GB up to 4GB

 Specification
 Compatibility SD3.0  Shock 0.5ms, 1,500G, 3 axes
 microSD 1GB to 2GB: FAT file system  Altitude 70,000 feet
 microSDHC 4GB: FAT16 file system  Power consumption SLC
 Declaration RoHS & REACH compliant  Power requirement +3.3V ± 10%
 Flash technology SLC-NAND flash technology  Reading mode 400 mA (Max.)
 Form-factor Standard microSD  Writing mode 400 mA (Max.)
 Host interface 8-pin exposed contact  Idle (Standby) mode 1000 uA (Max.)
 Performance  Reliability
 Data transfer rate Class10  Wear-leveling Static and Dynamic wear-leveling algorithms
 Sequential read microSD: 23.4 MB/sec (Max.)  MTBF > 3,000,000 hours
microSDHC: 67.2 MB/sec (Max.)  Erase counts Up to 60,000 times aSLC
 Sequential write microSD: 20.7 MB/sec (Max.)  ECC BCH ECC
microSDHC: 48.4 MB/sec (Max.)  Physical specification
 Environmental  Weight (Max.) 0.3g
 Operating temp. IND. -40˚C~+85˚C  Dimension (WxLxH) 11.0 x 15.0 x 1.0 (mm)
 Non-operating temp. IND. -50˚C~+95˚C  Warranty
 Humidity 10% ~ 95% non-condensing  SLC IND. grade 5 years or within 60,000 erasing counts
 Vibration 80 Hz to 2K Hz, 20G, 3axes
 Part Number List MLC
Capacity -40ºC~+85ºC
1GB WPMSD001G-PFITI
2GB WPMSD002G-PFITI
4GB WPMSD004G-PFITI
 Part Number Decoder 3D-NAND
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example
W P M S D 0 0 4 G P F I T I

X1 Grade X12 Controller version
W : Industrial grade operating temp. -40ºC~+85ºC A, B, C, D….. Module DRAM
X2 The material of casing X13 Controller grade
P : Plastic casing I : Industrial grade
X3 X4 X5 Product category X14 Flash IC brand
MSD : Micro SD memory card T : Toshiba SLC-NAND flash IC
X6 X7 X8 X9 Capacity X15 Flash IC grade Adapter
001G : 1GB I : Industrial grade
002G : 2GB
004G : 4GB X17 X18 X19 X20 Reserved for specific requirements
X11 Controller
P : PHANES Series Card-drive

50
Product specifications are subject to change without prior notice.
