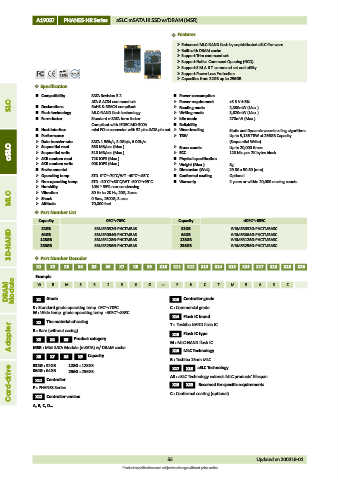

A19037 PHANES-HR Series aSLC mSATA III SSD w/DRAM (MSR)

 Features
 Enhanced MLC-NAND flash by sophisticated aSLC firmware
 Built with DRAM cache
 Support Trim command set
 Support Native Command Queuing (NCQ)
 Support S.M.A.R.T. command set and utility
 Support Power Loss Protection
 Capacities from 32GB up to 256GB
 Specification
 Compatibility SATA Revision 3.2  Power consumption
SLC  Declarations ATA-8 ACS4 command set  Power requirement +3.3 V ± 5%
RoHS & REACH compliant
Reading mode
2,380mW (Max.)

 Flash technology MLC-NAND flash technology  Writing mode 3,620mW (Max.)
 Form-factor Standard mSATA form factor  Idle mode 270mW (Max.)
Compliant with JEDEC MO-300A  Reliability
 Host Interface mini PCI-e connector with 52 pins SATA pin out  Wear-leveling Static and Dynamic wear-leveling algorithms
 Performance  TBW Up to 5,136 TBW at 256GB Capacity
 Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s (Sequential Write)
aSLC  Sequential read 550 MB/sec (Max.)  Erase counts Up to 20,000 times
ECC

120 bits per 2K bytes block
Sequential write
510 MB/sec (Max.)

72K IOPS (Max.)
Physical specification

4KB random read

 4KB random write 90K IOPS (Max.)  Weight (Max.) 8g
 Environmental  Dimension (WxL) 29.80 x 50.80 (mm)
 Operating temp. STD. 0˚C~+70˚C/W.T. -40˚C~+85˚C  Conformal coating Optional
 Non-operating temp STD. -20˚C~+80˚C/W.T. -50˚C~+95˚C  Warranty 2 years or within 20,000 erasing counts
 Humidity 10% ~ 95% non-condensing
Vibration

80 Hz to 2K Hz, 20G, 3axes
MLC  Shock 0.5ms, 1500G, 3 axes
Altitude
70,000 feet

 Part Number List
0ºC~+70ºC
-40ºC~+85ºC
Capacity SBMSR032G-PHCTMBAS Capacity WBMSR032G-PHCTMBASC
32GB
32GB
3D-NAND 128GB SBMSR064G-PHCTMBAS 128GB WBMSR064G-PHCTMBASC
64GB
64GB
SBMSR128G-PHCTMBAS
WBMSR128G-PHCTMBASC
SBMSR256G-PHCTMBAS
256GB
256GB
WBMSR256G-PHCTMBASC

X2
X4
X1 Part Number Decoder X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
X3
Example
DRAM Module W Grade M S R 2 5 6 G P Controller grade T M B A S C
H
C
B
X13
X1
S : Standard grade operating temp. 0ºC~+70ºC C : Commercial grade
W : Wide temp. grade operating temp. -40ºC~+85ºC
X14 Flash IC brand
X2 The material of casing T : Toshiba NAND flash IC
Adapter B : Bare (without casing) M : MLC-NAND flash IC
Flash IC type
X15
Product category
X4
X3
X5
MSR : Mini SATA Module (mSATA) w/ DRAM cache
X6 X7 X8 X9 Capacity X16 MLC Technology
B : Toshiba 15nm MLC
032G : 32GB
128G : 128GB
Card-drive 064G : 64GB 256G : 256GB AS : aSLC Technology extends MLC products’ lifespan
aSLC Technology
X18
X17
Controller
X11
Reserved for specific requirements
X19
X20
P : PHANES Series
C : Conformal coating (optional)
Controller version
X12
A, B, C, D…..
55 Updated on 200318-01
Product specifications are subject to change without prior notice.
