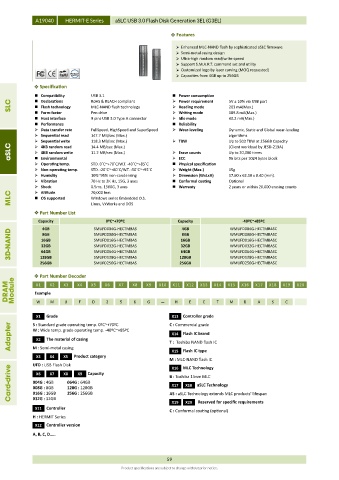

A19040 HERMIT-E Series aSLC USB 3.0 Flash Disk Generation 3EL (G3EL)

 Features

 Enhanced MLC-NAND flash by sophisticated aSLC firmware
 Semi-metal casing design
 Ultra-high random read/write speed
 Support S.M.A.R.T. command set and utility
 Customized logo by laser carving (MOQ requested)
 Capacities from 4GB up to 256GB
 Specification
 Compatibility USB 3.1  Power consumption
SLC  Declarations RoHS & REACH compliant  Power requirement 5V ± 10% via USB port
MLC-NAND flash technology
203 mA(Max.)


Reading mode
Flash technology
 Form-factor Pen drive  Writing mode 189.8 mA(Max.)
 Host interface 9 pins USB 3.0 Type A connector  Idle mode 40.2 mA(Max.)
 Performance  Reliability
 Data transfer rate FullSpeed, HighSpeed and SuperSpeed  Wear-leveling Dynamic, Static and Global wear-leveling
 Sequential read 147.7 MB/sec (Max.) algorithms
 Sequential write 118.3 MB/sec (Max.)  TBW Up to 503 TBW at 256GB Capacity
aSLC  4KB random read 14.4 MB/sec (Max.)  Erase counts (Client workload by JESD-219A)
Up to 20,000 times
11.2 MB/sec (Max.)

4KB random write
96 bits per 1024 bytes block
ECC
Environmental


 Operating temp. STD. 0˚C~+70˚C/W.T. -40˚C~+85˚C  Physical specification
 Non-operating temp. STD. -20˚C~+80˚C/W.T. -50˚C~+95˚C  Weight (Max.) 15g
 Humidity 10%~95% non-condensing  Dimension (WxLxH) 17.60 x 62.10 x 8.40 (mm).
 Vibration 70 Hz to 2K Hz, 15G, 3 axes  Conformal coating Optional
 Shock 0.5ms, 1500G, 3 axes  Warranty 2 years or within 20,000 erasing counts
Altitude

70,000 feet
MLC  OS supported Windows series Embedded O.S.
Linux, VxWorks and DOS
 Part Number List
-40ºC~+85ºC
0ºC~+70ºC
Capacity SMUFD004G-HECTMBAS Capacity WMUFD004G-HECTMBASC
4GB
4GB
3D-NAND 16GB SMUFD008G-HECTMBAS 16GB WMUFD008G-HECTMBASC
8GB
8GB
WMUFD016G-HECTMBASC
SMUFD016G-HECTMBAS
32GB
SMUFD032G-HECTMBAS
32GB
WMUFD032G-HECTMBASC
WMUFD064G-HECTMBASC
64GB
SMUFD064G-HECTMBAS
64GB
128GB
SMUFD256G-HECTMBAS
256GB SMUFD128G-HECTMBAS 128GB WMUFD128G-HECTMBASC
WMUFD256G-HECTMBASC
256GB
 Part Number Decoder
DRAM Module Example X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
X1
H
A
B
C
S
C
E
M
T
2
D
6
5
U
M
F
W
G
Controller grade
X13
X1 Grade C : Commercial grade
S : Standard grade operating temp. 0ºC~+70ºC
Adapter W : Wide temp. grade operating temp. -40ºC~+85ºC T : Toshiba NAND flash IC
X14
Flash IC brand
The material of casing
X2
M : Semi-metal casing
X3 X4 X5 Product category X15 Flash IC type
M : MLC-NAND flash IC
UFD : USB Flash Disk Capacity X16 MLC Technology
Card-drive 004G : 4GB X8 064G : 64GB B : Toshiba 15nm MLC
X7
X9
X6
aSLC Technology
X17
X18
128G : 128GB
008G : 8GB
016G : 16GB
256G : 256GB
AS : aSLC Technology extends MLC products’ lifespan
032G : 32GB
X20
X19
Reserved for specific requirements
X11 Controller C : Conformal coating (optional)
H : HERMIT Series
X12 Controller version
A, B, C, D…..
59
Product specifications are subject to change without prior notice.
