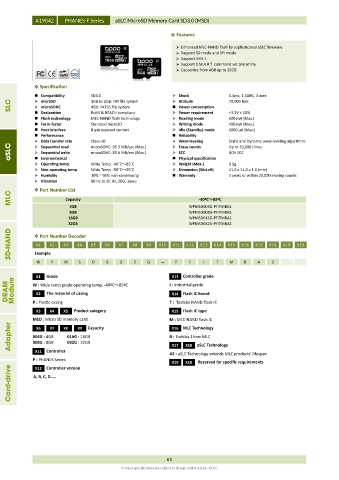

Page 68 - APRO_2020_Catalog

A19042 PHANES-F Series aSLC MicroSD Memory Card SD3.0 (MSD)

 Features

 Enhanced MLC-NAND flash by sophisticated aSLC firmware
 Support SD mode and SPI mode
 Support UHS-1
 Support S.M.A.R.T. command set and utility
 Capacities from 4GB up to 32GB

 Specification
 Compatibility SD3.0  Shock 0.5ms, 1,500G, 3 axes
SLC  microSD 1GB to 2GB: FAT file system  Altitude 70,000 feet
4GB: FAT16 file system

microSDHC

Power consumption
 Declaration RoHS & REACH compliant  Power requirement +3.3V ± 10%
 Flash technology MLC-NAND flash technology  Reading mode 400 mA (Max.)
 Form-factor Standard microSD  Writing mode 400 mA (Max.)
 Host interface 8-pin exposed contact  Idle (Standby) mode 1000 uA (Max.)
 Performance  Reliability
 Data transfer rate Class-10  Wear-leveling Static and Dynamic wear-leveling algorithms
aSLC  Sequential read microSDHC: 95.3 MB/sec (Max.)  Erase counts Up to 20,000 times
Sequential write

ECC
BCH ECC

microSDHC: 83.6 MB/sec (Max.)

Physical specification

Environmental
 Operating temp. Wide Temp. -40˚C~+85˚C  Weight (Max.) 0.3g
 Non-operating temp. Wide Temp. -50˚C~+95˚C  Dimension (WxLxH) 11.0 x 15.0 x 1.0 (mm)
 Humidity 10% ~ 95% non-condensing  Warranty 2 years or within 20,000 erasing counts
 Vibration 80 Hz to 2K Hz, 20G, 3axes
 Part Number List
MLC Capacity -40ºC~+85ºC
4GB
WPMSD008G-PFITMBAS
8GB WPMSD004G-PFITMBAS
16GB WPMSD016G-PFITMBAS
32GB WPMSD032G-PFITMBAS
3D-NAND  Part Number Decoder X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
X4
X1
X2
X3
Example
W P M S D 0 3 2 G P F I T M B A S
X1 Grade X13 Controller grade
DRAM Module W : Wide temp grade operating temp. -40ºC~+85ºC I : Industrial grade
The material of casing
X2
X14
Flash IC brand
P : Plastic casing
Flash IC type
X3 X4 X5 Product category T : Toshiba NAND flash IC
X15
MSD : Micro SD memory card Capacity M : MLC-NAND flash IC
Adapter 004G : 4GB X8 016G : 16GB B : Toshiba 15nm MLC
MLC Technology
X6
X7
X16
X9
008G : 8GB
032G : 32GB
aSLC Technology
X18
X17
Controller
X11
AS : aSLC Technology extends MLC products’ lifespan
P : PHANES Series
X19 X20 Reserved for specific requirements
Card-drive A, B, C, D…..
Controller version
X12

61
Product specifications are subject to change without prior notice.
