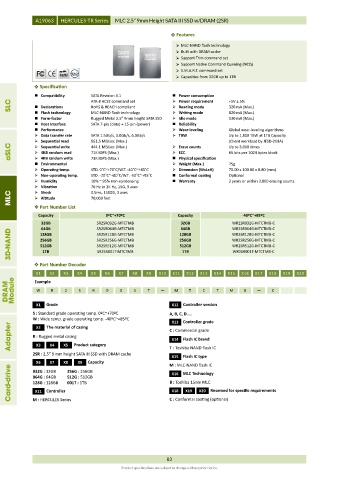

Page 90 - APRO_2019_Catalog

A19063 HERCULES-TR Series MLC 2.5” 9mm Height SATA III SSD w/DRAM (2SR)

 Features
 MLC-NAND flash technology
 Built with DRAM cache
 Support Trim command set
 Support Native Command Queuing (NCQ)
 S.M.A.R.T. command set
 Capacities from 32GB up to 1TB
 Specification
 Compatibility SATA Revision 3.1  Power consumption
SLC  Declarations ATA-8 ACS2 command set  Power requirement +5V ± 5%

RoHS & REACH compliant
Reading mode
320 mA (Max.)
 Flash technology MLC-NAND flash technology  Writing mode 820 mA (Max.)
 Form-factor Rugged Metal 2.5” 9mm height SATA SSD  Idle mode 130 mA (Max.)
 Host Interface SATA 7-pin (data) + 15-pin (power)  Reliability
 Performance  Wear-leveling Global wear-leveling algorithms
 Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s  TBW Up to 1,800 TBW at 1TB Capacity
 Sequential read 561.5 MB/sec (Max.) (Client workload by JESD-219A)
aSLC  Sequential write 444.1 MB/sec (Max.)  Erase counts Up to 3,000 times
66 bits per 1024 bytes block
71K IOPS (Max.)
4KB random read

ECC

Physical specification
4KB random write

73K IOPS (Max.)

 Environmental  Weight (Max.) 75g
 Operating temp. STD. 0˚C~+70˚C/W.T. -40˚C~+85˚C  Dimension (WxLxH) 70.00 x 100.00 x 8.80 (mm)
 Non-operating temp. STD. -20˚C~+80˚C/W.T. -50˚C~+95˚C  Conformal coating Optional
 Humidity 10% ~ 95% non-condensing  Warranty 2 years or within 3,000 erasing counts
 Vibration 70 Hz to 2K Hz, 15G, 3 axes
Shock
0.5ms, 1500G, 3 axes

MLC  Altitude 70,000 feet
 Part Number List
Capacity 0ºC~+70ºC Capacity -40ºC~+85ºC
32GB SR2SR032G-MTCTMB 32GB WR2SR032G-MTCTMB-C
64GB
WR2SR064G-MTCTMB-C
SR2SR064G-MTCTMB
64GB
3D-NAND 128GB SR2SR128G-MTCTMB 128GB WR2SR128G-MTCTMB-C
SR2SR256G-MTCTMB
WR2SR256G-MTCTMB-C
256GB
256GB
SR2SR512G-MTCTMB
512GB
WR2SR512G-MTCTMB-C
512GB
SR2SR001T-MTCTMB
WR2SR001T-MTCTMB-C
1TB
1TB
 Part Number Decoder
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
DRAM Module W R 2 S R 0 0 1 T M T C T M B C
Example
X1 Grade X12 Controller version
S : Standard grade operating temp. 0ºC~+70ºC A, B, C, D…..
W : Wide temp. grade operating temp. -40ºC~+85ºC X13 Controller grade
Adapter R : Rugged metal casing C : Commercial grade
X2
The material of casing
X14
Flash IC brand
X5
Product category
X3
X4
2SR : 2.5” 9 mm height SATA III SSD with DRAM cache T : Toshiba NAND flash IC
X15 Flash IC type
Capacity
X6 X7 X8 256G : 256GB M : MLC-NAND flash IC
X9
Card-drive 064G : 64GB 512G : 512GB B : Toshiba 15nm MLC Reserved for specific requirements
032G : 32GB
MLC Technology
X16
001T : 1TB
128G : 128GB
X20
X19
X18
Controller
X11
C : Conformal coating (optional)
M : HERCULES Series
83
Product specifications are subject to change without prior notice.
