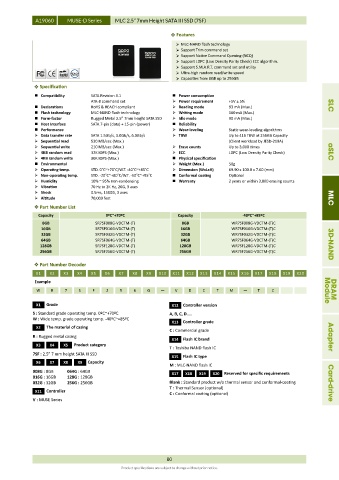

A19060      MUSE-D Series   MLC 2.5” 7mm Height SATA III SSD (7SF)

                                                               Features
                                                                MLC-NAND flash technology
                                                                Support Trim command set
                                                                Support Native Command Queuing (NCQ)
                                                                Support LDPC (Low Density Parity Check) ECC algorithm.
                                                                Support S.M.A.R.T. command set and utility
                                                                Ultra-high random read/write speed
                                                                Capacities from 8GB up to 256GB
               Specification
               Compatibility    SATA Revision 3.1              Power consumption
                                 ATA-8 command set              Power requirement  +5V ± 5%
               Declarations     RoHS & REACH compliant         Reading mode    93 mA (Max.)                       SLC
               Flash technology  MLC-NAND flash technology      Writing mode    160 mA (Max.)
               Form-factor      Rugged Metal 2.5” 7mm height SATA SSD    Idle mode  90 mA (Max.)
               Host Interface   SATA 7-pin (data) + 15-pin (power)    Reliability
               Performance                                     Wear-leveling   Static wear-leveling algorithms
               Data transfer rate  SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s    TBW       Up to 416 TBW at 256GB Capacity
               Sequential read  530 MB/sec (Max.)                               (Client workload by JESD-219A)
               Sequential write  210 MB/sec (Max.)             Erase counts    Up to 3,000 times
               4KB random read   32K IOPS (Max.)               ECC             LDPC (Low Density Parity Check)    aSLC
               4KB random write  30K IOPS (Max.)               Physical specification
               Environmental                                   Weight (Max.)   50g
               Operating temp.  STD. 0˚C~+70˚C/W.T. -40˚C~+85˚C    Dimension (WxLxH)  69.90 x 100.0 x 7.00 (mm)
               Non-operating temp.  STD. -20˚C~+80˚C/W.T. -50˚C~+95˚C    Conformal coating  Optional
               Humidity         10% ~ 95% non-condensing       Warranty        2 years or within 3,000 erasing counts
               Vibration        70 Hz to 2K Hz, 20G, 3 axes
               Shock            0.5ms, 1500G, 3 axes
               Altitude         70,000 feet                                                                        MLC
               Part Number List
               Capacity               0ºC~+70ºC                 Capacity              -40ºC~+85ºC
                8GB                SR7SF008G-VDCTM-(T)           8GB              WR7SF008G-VDCTM-(T)C
               16GB                SR7SF016G-VDCTM-(T)           16GB             WR7SF016G-VDCTM-(T)C
               32GB                SR7SF032G-VDCTM-(T)           32GB             WR7SF032G-VDCTM-(T)C
               64GB                SR7SF064G-VDCTM-(T)           64GB             WR7SF064G-VDCTM-(T)C
               128GB               SR7SF128G-VDCTM-(T)          128GB             WR7SF128G-VDCTM-(T)C              3D-NAND
               256GB               SR7SF256G-VDCTM-(T)          256GB             WR7SF256G-VDCTM-(T)C

               Part Number Decoder
              X1   X2  X3   X4   X5   X6   X7   X8  X9   X10  X11  X12  X13  X14  X15  X16  X17  X18  X19  X20
             Example
              W    R    7    S    F   2    5    6    G         V   D    C    T    M         T   C                  Module  DRAM

              X1  Grade                                      X12  Controller version
             S : Standard grade operating temp. 0ºC~+70ºC    A, B, C, D…..
             W : Wide temp. grade operating temp. -40ºC~+85ºC
                                                             X13  Controller grade
              X2  The material of casing
                                                             C : Commercial grade
             R : Rugged metal casing                                                                                Adapter
                                                             X14  Flash IC brand
              X3   X4  X5  Product category
                                                             T : Toshiba NAND flash IC
             7SF : 2.5” 7 mm height SATA III SSD
                                                             X15  Flash IC type
              X6   X7  X8   X9  Capacity
                                                             M : MLC-NAND flash IC
             008G : 8GB  064G : 64GB                         X17  X18  X19  X20  Reserved for specific requirements
             016G : 16GB  128G : 128GB
             032G : 32GB  256G : 256GB                       Blank : Standard product w/o thermal sensor and conformal-coating   Card-drive
                                                             T : Thermal Sensor (optional)
             X11  Controller                                 C : Conformal coating (optional)
             V : MUSE Series











                                                            80
                                            Product specifications are subject to change without prior notice.
