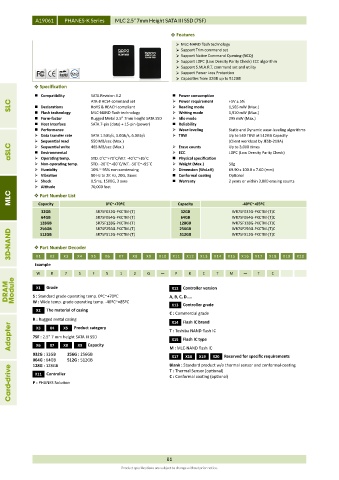

A19061 PHANES-K Series MLC 2.5” 7mm Height SATA III SSD (7SF)

 Features
 MLC-NAND flash technology
 Support Trim command set
 Support Native Command Queuing (NCQ)
 Support LDPC (Low Density Parity Check) ECC algorithm
 Support S.M.A.R.T. command set and utility
 Support Power Loss Protection
 Capacities from 32GB up to 512GB
 Specification
 Compatibility SATA Revision 3.2  Power consumption
SLC  Declarations ATA-8 ACS4 command set  Power requirement +5V ± 5%
RoHS & REACH compliant
Reading mode

1,565 mW (Max.)
 Flash technology MLC-NAND flash technology  Writing mode 1,910 mW (Max.)
 Form-factor Rugged Metal 2.5” 7mm height SATA SSD  Idle mode 295 mW (Max.)
 Host Interface SATA 7-pin (data) + 15-pin (power)  Reliability
 Performance  Wear-leveling Static and Dynamic wear-leveling algorithms
 Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s  TBW Up to 540 TBW at 512GB Capacity
 Sequential read 550 MB/sec (Max.) (Client workload by JESD-219A)
aSLC  Sequential write 465 MB/sec (Max.)  Erase counts Up to 3,000 times
Environmental


ECC
LDPC (Low Density Parity Check)
Physical specification
STD. 0˚C~+70˚C/W.T. -40˚C~+85˚C
Operating temp.


 Non-operating temp. STD. -20˚C~+80˚C/W.T. -50˚C~+95˚C  Weight (Max.) 50g
 Humidity 10% ~ 95% non-condensing  Dimension (WxLxH) 69.90 x 100.0 x 7.00 (mm)
 Vibration 80 Hz to 2K Hz, 20G, 3axes  Conformal coating Optional
 Shock 0.5ms, 1500G, 3 axes  Warranty 2 years or within 3,000 erasing counts
 Altitude 70,000 feet
MLC  Capacity 0ºC~+70ºC Capacity -40ºC~+85ºC
Part Number List
32GB SR7SF032G-PKCTM-(T) 32GB WR7SF032G-PKCTM-(T)C
64GB SR7SF064G-PKCTM-(T) 64GB WR7SF064G-PKCTM-(T)C
128GB SR7SF128G-PKCTM-(T) 128GB WR7SF128G-PKCTM-(T)C
SR7SF256G-PKCTM-(T)
256GB
WR7SF256G-PKCTM-(T)C
256GB
3D-NAND  Part Number Decoder SR7SF512G-PKCTM-(T) 512GB WR7SF512G-PKCTM-(T)C
512GB
X1
Example X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
W R 7 S F 5 1 2 G P K C T M T C
DRAM Module S : Standard grade operating temp. 0ºC~+70ºC A, B, C, D…..
Grade
X1
Controller version
X12
W : Wide temp. grade operating temp. -40ºC~+85ºC
X13 Controller grade
X2 The material of casing
C : Commercial grade
R : Rugged metal casing X14 Flash IC brand
Adapter 7SF : 2.5” 7 mm height SATA III SSD T : Toshiba NAND flash IC
Product category
X5
X3
X4
Flash IC type
X15
Capacity
X9
X8
X7
X6
032G : 32GB 256G : 256GB M : MLC-NAND flash IC X20 Reserved for specific requirements
X17
X18
X19
064G : 64GB 512G : 512GB Blank : Standard product w/o thermal sensor and conformal-coating
128G : 128GB
Card-drive P : PHANES Solution C : Conformal coating (optional)
T : Thermal Sensor (optional)
Controller
X11

81
Product specifications are subject to change without prior notice.
