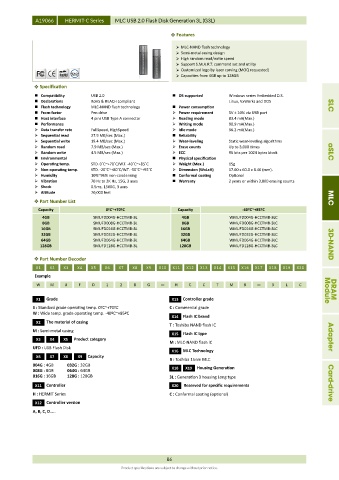

A19066     HERMIT-C Series  MLC USB 2.0 Flash Disk Generation 3L (G3L)

                                                               Features

                                                                MLC-NAND flash technology
                                                                Semi-metal casing design
                                                                High random read/write speed
                                                                Support S.M.A.R.T. command set and utility
                                                                Customized logo by laser carving (MOQ requested)
                                                                Capacities from 4GB up to 128GB
               Specification
               Compatibility    USB 2.0                        OS supported    Windows series Embedded O.S.
               Declarations     RoHS & REACH compliant                          Linux, VxWorks and DOS
               Flash technology  MLC-NAND flash technology      Power consumption                                  SLC
               From-factor      Pen drive                      Power requirement  5V ± 10% via USB port
               Host interface   4 pins USB Type A connector    Reading mode    83.4 mA(Max.)
               Performance                                     Writing mode    90.9 mA(Max.)
               Data transfer rate  FullSpeed, HighSpeed        Idle mode       36.2 mA(Max.)
               Sequential read  27.9 MB/sec (Max.)             Reliability
               Sequential write  19.4 MB/sec (Max.)            Wear-leveling   Static wear-leveling algorithms
               Random read      7.9 MB/sec (Max.)              Erase counts    Up to 3,000 times
               Random write     4.5 MB/sec (Max.)              ECC             96 bits per 1024 bytes block       aSLC
               Environmental                                   Physical specification
               Operating temp.  STD. 0˚C~+70˚C/W.T. -40˚C~+85˚C    Weight (Max.)  15g
               Non-operating temp.  STD. -20˚C~+80˚C/W.T. -50˚C~+95˚C    Dimension (WxLxH)  17.60 x 60.0 x 8.40 (mm).
               Humidity         10%~95% non-condensing         Conformal coating  Optional
               Vibration        70 Hz to 2K Hz, 15G, 3 axes    Warranty        2 years or within 3,000 erasing counts
               Shock            0.5ms, 1500G, 3 axes
               Altitude         70,000 feet
               Part Number List                                                                                    MLC
               Capacity               0ºC~+70ºC                 Capacity              -40ºC~+85ºC
                4GB               SMUFD004G-HCCTMB-3L            4GB              WMUFD004G-HCCTMB-3LC
                8GB               SMUFD008G-HCCTMB-3L            8GB              WMUFD008G-HCCTMB-3LC
               16GB               SMUFD016G-HCCTMB-3L            16GB             WMUFD016G-HCCTMB-3LC
               32GB               SMUFD032G-HCCTMB-3L            32GB             WMUFD032G-HCCTMB-3LC
               64GB               SMUFD064G-HCCTMB-3L            64GB             WMUFD064G-HCCTMB-3LC
               128GB              SMUFD128G-HCCTMB-3L           128GB             WMUFD128G-HCCTMB-3LC              3D-NAND

               Part Number Decoder
              X1   X2  X3   X4   X5   X6   X7   X8  X9   X10  X11  X12  X13  X14  X15  X16  X17  X18  X19  X20
             Example
              W    M    U    F   D    1    2    8    G        H    C    C    T    M    B         3   L    C        Module  DRAM

              X1  Grade                                      X13  Controller grade
             S : Standard grade operating temp. 0ºC~+70ºC    C : Commercial grade
             W : Wide temp. grade operating temp. -40ºC~+85ºC
                                                             X14  Flash IC brand
              X2  The material of casing
                                                             T : Toshiba NAND flash IC
             M : Semi-metal casing
                                                             X15  Flash IC type
              X3   X4  X5  Product category                                                                         Adapter
                                                             M : MLC-NAND flash IC
             UFD : USB Flash Disk
                                                             X16  MLC Technology
              X6   X7  X8   X9  Capacity
                                                             B : Toshiba 15nm MLC
             004G : 4GB  032G : 32GB                                  Housing Generation
             008G : 8GB    064G : 64GB                       X18  X19
             016G : 16GB  128G : 128GB                       3L : Generation 3 housing Long type
             X11  Controller                                 X20  Reserved for specific requirements                 Card-drive
             H : HERMIT Series                               C : Conformal coating (optional)
             X12  Controller version
             A, B, C, D…..








                                                            86
