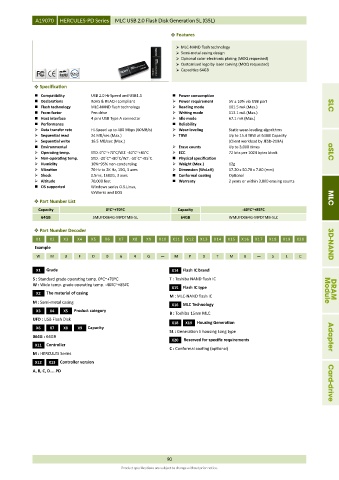

A19070 HERCULES-PD Series MLC USB 2.0 Flash Disk Generation 5L (G5L)

 Features

 MLC-NAND flash technology
 Semi-metal casing design
 Optional color electronic plating (MOQ requested)
 Customized logo by laser carving (MOQ requested)
 Capacities 64GB

 Specification
 Compatibility USB 2.0 Hi-Speed and USB1.1  Power consumption
 Declarations RoHS & REACH compliant  Power requirement 5V ± 10% via USB port
 Flash technology MLC-NAND flash technology  Reading mode 101.5 mA (Max.) SLC
 From-factor Pen drive  Writing mode 113.1 mA (Max.)
 Host interface 4 pins USB Type A connector  Idle mode 67.1 mA (Max.)
 Performance  Reliability
 Data transfer rate Hi-Speed up to 480 Mbps (60MB/s)  Wear-leveling Static wear-leveling algorithms
 Sequential read 24 MB/sec (Max.)  TBW Up to 15.4 TBW at 64GB Capacity
 Sequential write 16.5 MB/sec (Max.) (Client workload by JESD-219A)
 Environmental  Erase counts Up to 3,000 times
 Operating temp. STD. 0˚C~+70˚C/W.T. -40˚C~+85˚C  ECC 72 bits per 1024 bytes block aSLC
 Non-operating temp. STD. -20˚C~+80˚C/W.T. -50˚C~+95˚C  Physical specification
 Humidity 10%~95% non-condensing  Weight (Max.) 12g
 Vibration 70 Hz to 2K Hz, 15G, 3 axes  Dimension (WxLxH) 17.20 x 50.70 x 7.80 (mm)
 Shock 0.5ms, 1500G, 3 axes  Conformal coating Optional
 Altitude 70,000 feet  Warranty 2 years or within 3,000 erasing counts
 OS supported Windows series O.S.Linux,
VxWorks and DOS
 Part Number List MLC
Capacity 0ºC~+70ºC Capacity -40ºC~+85ºC
64GB SMUFD064G-MPDTMB-5L 64GB WMUFD064G-MPDTMB-5LC

 Part Number Decoder
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example 3D-NAND
W M U F D 0 6 4 G M P D T M B 5 L C

X1 Grade X14 Flash IC brand
S : Standard grade operating temp. 0ºC~+70ºC T : Toshiba NAND flash IC
W : Wide temp. grade operating temp. -40ºC~+85ºC
X15 Flash IC type
X2 The material of casing Module DRAM
M : MLC-NAND flash IC
M : Semi-metal casing
X16 MLC Technology
X3 X4 X5 Product category B : Toshiba 15nm MLC
UFD : USB Flash Disk
X18 X19 Housing Generation
X6 X7 X8 X9 Capacity
5L : Generation 5 housing Long type
064G : 64GB Adapter
X20 Reserved for specific requirements
X11 Controller
C : Conformal coating (optional)
M : HERCULES Series
X12 X13 Controller version
A, B, C, D…..PD Card-drive

90
Product specifications are subject to change without prior notice.
