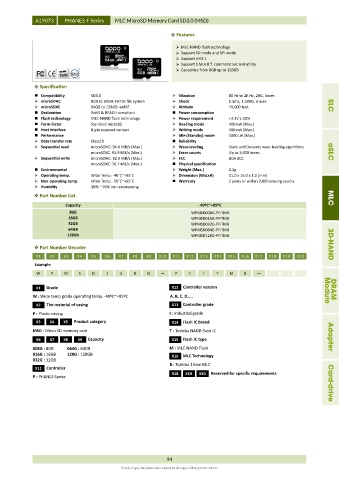

A19073 PHANES-F Series MLC MicroSD Memory Card SD3.0 (MSD)

 Features

 MLC-NAND flash technology
 Support SD mode and SPI mode
 Support UHS-1
 Support S.M.A.R.T. command set and utility
 Capacities from 8GB up to 128GB

 Specification
 Compatibility SD3.0  Vibration 80 Hz to 2K Hz, 20G, 3axes
 microSDHC 8GB to 32GB: FAT16 file system  Shock 0.5ms, 1,500G, 3 axes
 microSDXC 64GB to 128GB: exFAT  Altitude 70,000 feet SLC
 Declaration RoHS & REACH compliant  Power consumption
 Flash technology MLC-NAND flash technology  Power requirement +3.3V ± 10%
 Form-factor Standard microSD  Reading mode 400 mA (Max.)
 Host interface 8-pin exposed contact  Writing mode 400 mA (Max.)
 Performance  Idle (Standby) mode 1000 uA (Max.)
 Data transfer rate Class10  Reliability
 Sequential read microSDHC: 94.6 MB/s (Max.)  Wear-leveling Static and Dynamic wear-leveling algorithms
microSDXC: 95.9 MB/s (Max.)  Erase counts Up to 3,000 times aSLC
 Sequential write microSDHC: 32.9 MB/s (Max.)  ECC BCH ECC
microSDXC: 76.7 MB/s (Max.)  Physical specification
 Environmental  Weight (Max.) 0.3g
 Operating temp. Wide Temp. -40˚C~+85˚C  Dimension (WxLxH) 11.0 x 15.0 x 1.0 (mm)
 Non-operating temp. Wide Temp. -50˚C~+95˚C  Warranty 2 years or within 3,000 erasing counts
 Humidity 10% ~ 95% non-condensing
 Part Number List MLC
Capacity -40ºC~+85ºC
8GB WPMSD008G-PFITMB
16GB WPMSD016G-PFITMB
32GB WPMSD032G-PFITMB
64GB WPMSD064G-PFITMB
128GB WPMSD128G-PFITMB

 Part Number Decoder 3D-NAND
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example
W P M S D 1 2 8 G P F I T M B

X1 Grade X12 Controller version Module DRAM
W : Wide temp grade operating temp. -40ºC~+85ºC A, B, C, D…..
X2 The material of casing X13 Controller grade
P : Plastic casing I : Industrial grade
X3 X4 X5 Product category X14 Flash IC brand
MSD : Micro SD memory card T : Toshiba NAND flash IC
X6 X7 X8 X9 Capacity X15 Flash IC type Adapter
008G : 8GB 064G : 64GB M : MLC-NAND Flash
016G : 16GB 128G : 128GB X16 MLC Technology
032G : 32GB
B : Toshiba 15nm MLC
X11 Controller
X18 X19 X20 Reserved for specific requirements
P : PHANES Series Card-drive

94
Product specifications are subject to change without prior notice.
