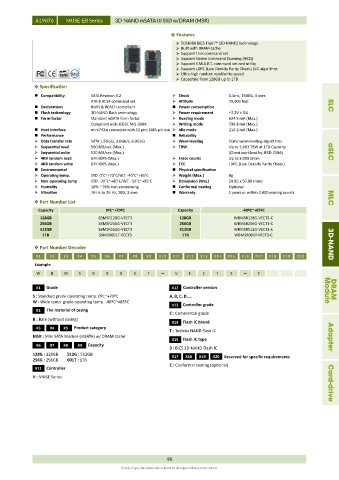

A19076 MUSE-ER Series 3D-NAND mSATA III SSD w/DRAM (MSR)

 Features
 TOSHIBA BiCS Flash™ (3D-NAND) technology
 Built with DRAM cache
 Support Trim command set
 Support Native Command Queuing (NCQ)
 Support S.M.A.R.T. command set and utility
 Support LDPC (Low Density Parity Check) ECC algorithm.
 Ultra-high random read/write speed
 Capacities from 128GB up to 1TB
 Specification
 Compatibility SATA Revision 3.2  Shock 0.5ms, 1500G, 3 axes
ATA-8 ACS4 command set  Altitude 70,000 feet
 Declarations RoHS & REACH compliant  Power consumption SLC
 Flash technology 3D-NAND flash technology  Power requirement +3.3V ± 5%
 Form-factor Standard mSATA form factor  Reading mode 624.5 mA (Max.)
Compliant with JEDEC MO-300A  Writing mode 799.8 mA (Max.)
 Host Interface mini PCI-e connector with 52 pins SATA pin out  Idle mode 214.2 mA (Max.)
 Performance  Reliability
 Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s  Wear-leveling Static wear-leveling algorithms
 Sequential read 560 MB/sec (Max.)  TBW Up to 2,663 TBW at 1TB Capacity
 Sequential write 520 MB/sec (Max.) (Client workload by JESD-219A) aSLC
 4KB random read 67K IOPS (Max.)  Erase counts Up to 3,000 times
 4KB random write 67K IOPS (Max.)  ECC LDPC (Low Density Parity Check)
 Environmental  Physical specification
 Operating temp. STD. 0˚C~+70˚C/W.T. -40˚C~+85˚C  Weight (Max.) 8g
 Non-operating temp STD. -20˚C~+80˚C/W.T. -50˚C~+95˚C  Dimension (WxL) 29.85 x 50.80 (mm)
 Humidity 10% ~ 95% non-condensing  Conformal coating Optional
 Vibration 70 Hz to 2K Hz, 20G, 3 axes  Warranty 2 years or within 3,000 erasing counts
 Part Number List MLC
Capacity 0ºC~+70ºC Capacity -40ºC~+85ºC
128GB SBMSR128G-VECT3 128GB WBMSR128G-VECT3-C
256GB SBMSR256G-VECT3 256GB WBMSR256G-VECT3-C
512GB SBMSR512G-VECT3 512GB WBMSR512G-VECT3-C
1TB SBMSR001T-VECT3 1TB WBMSR001T-VECT3-C

 Part Number Decoder 3D-NAND
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example
W B M S R 0 0 1 T V E C T 3 C

X1 Grade X12 Controller version Module DRAM
S : Standard grade operating temp. 0ºC~+70ºC A, B, C, D…..
W : Wide temp. grade operating temp. -40ºC~+85ºC
X13 Controller grade
X2 The material of casing
C : Commercial grade
B : Bare (without casing)
X14 Flash IC brand
X3 X4 X5 Product category
T : Toshiba NAND flash IC
MSR : Mini SATA Module (mSATA) w/ DRAM cache Adapter
X15 Flash IC type
X6 X7 X8 X9 Capacity
3 : BiCS 3D-NAND Flash IC
128G : 128GB 512G : 512GB X17 X18 X19 X20 Reserved for specific requirements
256G : 256GB 001T : 1TB
C : Conformal coating (optional)
X11 Controller
V : MUSE Series Card-drive

98
Product specifications are subject to change without prior notice.
