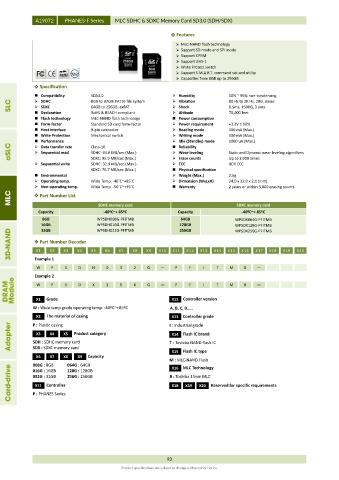

Page 100 - APRO_2019_Catalog

A19072 PHANES-F Series MLC SDHC & SDXC Memory Card SD3.0 (SDH/SDX)

 Features
 MLC-NAND flash technology
 Support SD mode and SPI mode
 Support CPRM
 Support UHS-1
 Write Protect switch
 Support S.M.A.R.T. command set and utility
 Capacities from 8GB up to 256GB
 Specification
 Compatibility SDA3.0  Humidity 10% ~ 95% non-condensing
SLC  SDHC 8GB to 32GB: FAT16 file system  Vibration 80 Hz to 2K Hz, 20G, 3axes
SDXC
Shock

0.5ms, 1500G, 3 axes

64GB to 256GB: exFAT
 Declaration RoHS & REACH compliant  Altitude 70,000 feet
 Flash technology MLC-NAND flash technology  Power consumption
 Form-factor Standard SD card form-factor  Power requirement +3.3V ± 10%
 Host interface 9-pin connector  Reading mode 400 mA (Max.)
 Write Protection Mechanical switch  Writing mode 400 mA (Max.)
 Performance  Idle (Standby) mode 1000 uA (Max.)
aSLC  Data transfer rate Class-10  Reliability Static and Dynamic wear-leveling algorithms
Sequential read

SDHC: 94.6 MB/sec (Max.)
Wear-leveling

Erase counts
SDXC: 95.9 MB/sec (Max.)

Up to 3,000 times
 Sequential write SDHC: 32.9 MB/sec (Max.)  ECC BCH ECC
SDXC: 76.7 MB/sec (Max.)  Physical specification
 Environmental  Weight (Max.) 2.5g
 Operating temp. Wide Temp. -40˚C~+85˚C  Dimension (WxLxH) 24.0 x 32.0 x 2.1 (mm)
 Non-operating temp. Wide Temp. -50˚C~+95˚C  Warranty 2 years or within 3,000 erasing counts
MLC  Part Number List SDHC memory card SDXC memory card
Capacity -40ºC~+ 85ºC Capacity -40ºC~+ 85ºC
8GB WPSDH008G-PFITMB 64GB WPSDX064G-PFITMB
16GB WPSDH016G-PFITMB 128GB WPSDX128G-PFITMB
256GB
WPSDH032G-PFITMB
32GB
3D-NAND  Part Number Decoder X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
WPSDX256G-PFITMB
X4
X1
X2
X3
Example 1
W P S D H 0 3 2 G P F I T M B
Example 2
DRAM Module W Grade S D X 2 5 6 G P Controller version T M B
P
F
I
X1
X12
W : Wide temp grade operating temp. -40ºC~+85ºC A, B, C, D…..
Controller grade
X2 The material of casing I : Industrial grade
X13
Adapter SDH : SDHC memory card T : Toshiba NAND flash IC
P : Plastic casing
Product category
Flash IC brand
X5
X4
X14
X3
SDX : SDXC memory card
X6 X7 X8 X9 Capacity X15 Flash IC type
M : MLC-NAND Flash
064G : 64GB
008G : 8GB
Card-drive 032G : 32GB 256G : 256GB B : Toshiba 15nm MLC Reserved for specific requirements
MLC Technology
X16
128G : 128GB
016G : 16GB
Controller
X20
X18
X11
X19
P : PHANES Series
93
Product specifications are subject to change without prior notice.
