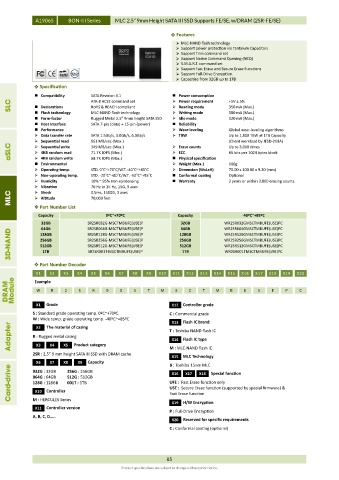

A19065 BON-III Series MLC 2.5” 9mm Height SATA III SSD Supports FE/SE, w/DRAM (2SR-FE/SE)

 Features
 MLC-NAND flash technology
 Support power protection via Tantalum Capacitors
 Support Trim command set
 Support Native Command Queuing (NCQ)
 S.M.A.R.T. command set
 Support Fast Erase and Secure Erase Functions
 Support Full-Drive Encryption.
 Capacities from 32GB up to 1TB
 Specification
 Compatibility SATA Revision 3.1  Power consumption
SLC  Declarations ATA-8 ACS2 command set  Power requirement +5V ± 5%
350 mA (Max.)
Reading mode
RoHS & REACH compliant

 Flash technology MLC-NAND flash technology  Writing mode 580 mA (Max.)
 Form-factor Rugged Metal 2.5” 9mm height SATA SSD  Idle mode 120 mA (Max.)
 Host Interface SATA 7-pin (data) + 15-pin (power)  Reliability
 Performance  Wear-leveling Global wear-leveling algorithms
 Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s  TBW Up to 1,800 TBW at 1TB Capacity
 Sequential read 561 MB/sec (Max.) (Client workload by JESD-219A)
aSLC  Sequential write 349 MB/sec (Max.)  Erase counts Up to 3,000 times
71.7K IOPS (Max.)
4KB random read
ECC

66 bits per 1024 bytes block


Physical specification
68.7K IOPS (Max.)
4KB random write

 Environmental  Weight (Max.) 100g
 Operating temp. STD. 0˚C~+70˚C/W.T. -40˚C~+85˚C  Dimension (WxLxH) 70.00 x 100.00 x 9.20 (mm)
 Non-operating temp. STD. -20˚C~+80˚C/W.T. -50˚C~+95˚C  Conformal coating Optional
 Humidity 10% ~ 95% non-condensing  Warranty 2 years or within 3,000 erasing counts
 Vibration 70 Hz to 2K Hz, 15G, 3 axes

0.5ms, 1500G, 3 axes
Shock
MLC  Altitude 70,000 feet
 Part Number List
Capacity 0ºC~+70ºC Capacity -40ºC~+85ºC
32GB SR2SR032G-MSCTMBUFE(USE)P 32GB WR2SR032GMSCTMBUFE(USE)PC
SR2SR064G-MSCTMBUFE(USE)P
64GB
WR2SR064GMSCTMBUFE(USE)PC
64GB
3D-NAND 128GB SR2SR128G-MSCTMBUFE(USE)P 128GB WR2SR128GMSCTMBUFE(USE)PC
SR2SR256G-MSCTMBUFE(USE)P
WR2SR256GMSCTMBUFE(USE)PC
256GB
256GB
SR2SR512G-MSCTMBUFE(USE)P
WR2SR512GMSCTMBUFE(USE)PC
512GB
512GB
1TB
WR2SR001TMSCTMBUFE(USE)PC
1TB
SR2SR001T-MSCTMBUFE(USE)P
 Part Number Decoder
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example
DRAM Module W R 2 S R 0 0 1 T M S C T M B U S E P C
X1 Grade X12 Controller grade
S : Standard grade operating temp. 0ºC~+70ºC C : Commercial grade
W : Wide temp. grade operating temp. -40ºC~+85ºC X13 Flash IC brand
Adapter R : Rugged metal casing T : Toshiba NAND flash IC
X2
The material of casing
Flash IC type
X14
X5
Product category
X3
X4
2SR : 2.5” 9 mm height SATA III SSD with DRAM cache M : MLC-NAND flash IC
X15 MLC Technology
Capacity
X9
X6 X7 X8 256G : 256GB B : Toshiba 15nm MLC
Card-drive 064G : 64GB 512G : 512GB UFE : Fast Erase function only
032G : 32GB
X18
X16
Special function
X17
128G : 128GB
001T : 1TB
USE : Secure Erase function (supported by special firmware) &
Controller
X10
Fast Erase function
M : HERCULES Series
X19 H/W Encryption
X11 Controller version
P : Full-Drive Encryption
A, B, C, D…..
X20 Reserved for specific requirements
C : Conformal coating (optional)
85
Product specifications are subject to change without prior notice.
