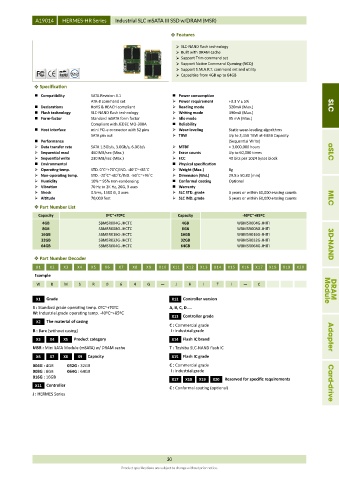

A19014 HERMES-HR Series Industrial SLC mSATA III SSD w/DRAM (MSR)

 Features

 SLC-NAND flash technology
 Built with DRAM cache
 Support Trim command set
 Support Native Command Queuing (NCQ)
 Support S.M.A.R.T. command set and utility
 Capacities from 4GB up to 64GB
 Specification
 Compatibility SATA Revision 3.1  Power consumption
ATA-8 command set  Power requirement +3.3 V ± 5%
 Declarations RoHS & REACH compliant  Reading mode 320mA (Max.) SLC
 Flash technology SLC-NAND flash technology  Writing mode 390mA (Max.)
 Form-factor Standard mSATA form factor  Idle mode 95 mA (Max.)
Compliant with JEDEC MO-300A  Reliability
 Host Interface mini PCI-e connector with 52 pins  Wear-leveling Static wear-leveling algorithms
SATA pin out  TBW Up to 3,456 TBW at 64GB Capacity
 Performance (Sequential Write)
 Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s  MTBF > 3,000,000 hours
 Sequential read 460 MB/sec (Max.)  Erase counts Up to 60,000 times aSLC
 Sequential write 230 MB/sec (Max.)  ECC 40 bits per 1024 bytes block
 Environmental  Physical specification
 Operating temp. STD. 0˚C~+70˚C/IND. -40˚C~+85˚C  Weight (Max.) 8g
 Non-operating temp. STD. -20˚C~+80˚C/IND. -50˚C~+95˚C  Dimension (WxL) 29.8 x 50.80 (mm)
 Humidity 10% ~ 95% non-condensing  Conformal coating Optional
 Vibration 70 Hz to 2K Hz, 20G, 3 axes  Warranty
 Shock 0.5ms, 1500 G, 3 axes  SLC STD. grade 3 years or within 60,000 erasing counts
 Altitude 70,000 feet  SLC IND. grade 5 years or within 60,000 erasing counts MLC
 Part Number List
Capacity 0ºC~+70ºC Capacity -40ºC~+85ºC
4GB SBMSR004G-JHCTC 4GB WBMSR004G-JHITI
8GB SBMSR008G-JHCTC 8GB WBMSR008G-JHITI
16GB SBMSR016G-JHCTC 16GB WBMSR016G-JHITI
32GB SBMSR032G-JHCTC 32GB WBMSR032G-JHITI
64GB SBMSR064G-JHCTC 64GB WBMSR064G-JHITI 3D-NAND

 Part Number Decoder
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example
W B M S R 0 6 4 G J H I T I C Module DRAM

X1 Grade X12 Controller version
S : Standard grade operating temp. 0ºC~+70ºC A, B, C, D…..
W: Industrial grade operating temp. -40ºC~+85ºC
X13 Controller grade
X2 The material of casing
C : Commercial grade
B : Bare (without casing) I : Industrial grade
X3 X4 X5 Product category X14 Flash IC brand Adapter
MSR : Mini SATA Module (mSATA) w/ DRAM cache T : Toshiba SLC-NAND flash IC
X6 X7 X8 X9 Capacity X15 Flash IC grade
004G : 4GB 032G : 32GB C : Commercial grade
008G : 8GB 064G : 64GB I : Industrial grade
016G : 16GB X17 X18 X19 X20 Reserved for specific requirements
X11 Controller C : Conformal coating (optional) Card-drive
J : HERMES Series

30
Product specifications are subject to change without prior notice.
