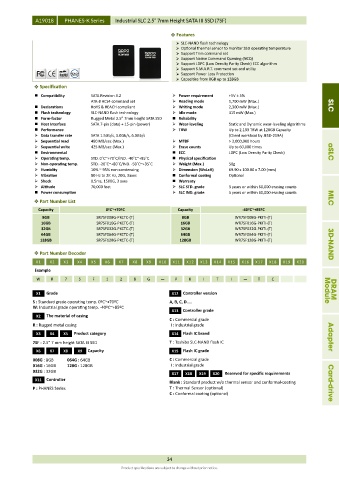

A19018 PHANES-K Series Industrial SLC 2.5” 7mm Height SATA III SSD (7SF)

 Features
 SLC-NAND flash technology
 Optional thermal sensor to monitor SSD operating temperature
 Support Trim command set
 Support Native Command Queuing (NCQ)
 Support LDPC (Low Density Parity Check) ECC algorithm
 Support S.M.A.R.T. command set and utility
 Support Power Loss Protection
 Capacities from 8GB up to 128GB
 Specification
 Compatibility SATA Revision 3.2  Power requirement +5V ± 5%
ATA-8 ACS4 command set  Reading mode 1,700 mW (Max.)
 Declarations RoHS & REACH compliant  Writing mode 2,300 mW (Max.) SLC
 Flash technology SLC-NAND flash technology  Idle mode 315 mW (Max.)
 Form-factor Rugged Metal 2.5” 7mm height SATA SSD  Reliability
 Host Interface SATA 7-pin (data) + 15-pin (power)  Wear-leveling Static and Dynamic wear-leveling algorithms
 Performance  TBW Up to 2,133 TBW at 128GB Capacity
 Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s (Client workload by JESD-219A)
 Sequential read 480 MB/sec (Max.)  MTBF > 3,000,000 hours
 Sequential write 425 MB/sec (Max.)  Erase counts Up to 60,000 times
 Environmental  ECC LDPC (Low Density Parity Check) aSLC
 Operating temp. STD. 0˚C~+70˚C/IND. -40˚C~+85˚C  Physical specification
 Non-operating temp. STD. -20˚C~+80˚C/IND. -50˚C~+95˚C  Weight (Max.) 50g
 Humidity 10% ~ 95% non-condensing  Dimension (WxLxH) 69.90 x 100.00 x 7.00 (mm)
 Vibration 80 Hz to 2K Hz, 20G, 3axes  Conformal coating Optional
 Shock 0.5ms, 1500G, 3 axes  Warranty
 Altitude 70,000 feet  SLC STD. grade 3 years or within 60,000 erasing counts
 Power consumption  SLC IND. grade 5 years or within 60,000 erasing counts
 Part Number List MLC
Capacity 0ºC~+70ºC Capacity -40ºC~+85ºC
8GB SR7SF008G-PKCTC-(T) 8GB WR7SF008G-PKITI-(T)
16GB SR7SF016G-PKCTC-(T) 16GB WR7SF016G-PKITI-(T)
32GB SR7SF032G-PKCTC-(T) 32GB WR7SF032G-PKITI-(T)
64GB SR7SF064G-PKCTC-(T) 64GB WR7SF064G-PKITI-(T)
128GB SR7SF128G-PKCTC-(T) 128GB WR7SF128G-PKITI-(T) 3D-NAND

 Part Number Decoder
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example
W R 7 S F 1 2 8 G P K I T I T C

X1 Grade X12 Controller version Module DRAM
S : Standard grade operating temp. 0ºC~+70ºC A, B, C, D…..
W: Industrial grade operating temp. -40ºC~+85ºC
X13 Controller grade
X2 The material of casing
C : Commercial grade
R : Rugged metal casing I : Industrial grade
X3 X4 X5 Product category X14 Flash IC brand Adapter
7SF : 2.5” 7 mm height SATA III SSD T : Toshiba SLC-NAND flash IC
X6 X7 X8 X9 Capacity X15 Flash IC grade
008G : 8GB 064G : 64GB C : Commercial grade
016G : 16GB 128G : 128GB I : Industrial grade
032G : 32GB X17 X18 X19 X20 Reserved for specific requirements
X11 Controller Blank : Standard product w/o thermal sensor and conformal-coating Card-drive
P : PHANES Series T : Thermal Sensor (optional)
C : Conformal coating (optional)

34
Product specifications are subject to change without prior notice.
