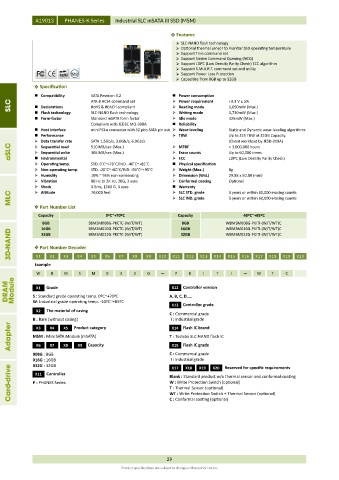

A19013 PHANES-K Series Industrial SLC mSATA III SSD (MSM)

 Features
 SLC-NAND flash technology
 Optional thermal sensor to monitor SSD operating temperature
 Support Trim command set
 Support Native Command Queuing (NCQ)
 Support LDPC (Low Density Parity Check) ECC algorithm
 Support S.M.A.R.T. command set and utility
 Support Power Loss Protection
 Capacities from 8GB up to 32GB
 Specification
 Compatibility SATA Revision 3.2  Power consumption
SLC  Declarations ATA-8 ACS4 command set  Power requirement +3.3 V ± 5%
Reading mode
RoHS & REACH compliant
1,650mW (Max.)

 Flash technology SLC-NAND flash technology  Writing mode 1,730mW (Max.)
 Form-factor Standard mSATA form factor  Idle mode 325mW (Max.)
Compliant with JEDEC MO-300A  Reliability
 Host Interface mini PCI-e connector with 52 pins SATA pin out  Wear-leveling Static and Dynamic wear-leveling algorithms
 Performance  TBW Up to 325 TBW at 32GB Capacity.
 Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s (Client workload by JESD-219A)
aSLC  Sequential read 510 MB/sec (Max.)  MTBF > 3,000,000 hours
Sequential write
305 MB/sec (Max.)
Erase counts


Up to 60,000 times
Environmental
LDPC (Low Density Parity Check)

ECC

 Operating temp. STD. 0˚C~+70˚C/IND. -40˚C~+85˚C  Physical specification
 Non-operating temp. STD. -20˚C~+80˚C/IND. -50˚C~+95˚C  Weight (Max.) 8g
 Humidity 10% ~ 95% non-condensing  Dimension (WxL) 29.85 x 50.80 (mm)
 Vibration 80 Hz to 2K Hz, 20G, 3 axes  Conformal coating Optional
 Shock 0.5ms, 1500 G, 3 axes  Warranty 3 years or within 60,000 erasing counts
SLC STD. grade
70,000 feet
Altitude


MLC  SLC IND. grade 5 years or within 60,000 erasing counts
 Part Number List
Capacity 0ºC~+70ºC Capacity -40ºC~+85ºC
8GB SBMSM008G-PKCTC-(W/T/WT) 16GB WBMSM008G-PKITI-(W/T/WT)C
8GB
SBMSM016G-PKCTC-(W/T/WT)
WBMSM016G-PKITI-(W/T/WT)C
16GB
3D-NAND  Part Number Decoder SBMSM032G-PKCTC-(W/T/WT) 32GB WBMSM032G-PKITI-(W/T/WT)C
32GB
X1
Example X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
W B M S M 0 3 2 G P K I T I W T C
DRAM Module S : Standard grade operating temp. 0ºC~+70ºC A, B, C, D…..
Controller version
Grade
X12
X1
W: Industrial grade operating temp. -40ºC~+85ºC
X13 Controller grade
X2 The material of casing
C : Commercial grade
B : Bare (without casing) I : Industrial grade
Adapter MSM : Mini SATA Module (mSATA) T : Toshiba SLC-NAND flash IC
Product category
Flash IC brand
X5
X4
X3
X14
Capacity
Flash IC grade
X8
X6
X15
X7
X9
008G : 8GB C : Commercial grade
016G : 16GB I : Industrial grade X20 Reserved for specific requirements
032G : 32GB
Card-drive P : PHANES Series Blank : Standard product w/o thermal sensor and conformal-coating
X18
X19
X17
Controller
X11
W : Write Protection Switch (optional)
T : Thermal Sensor (optional)
WT : Write Protection Switch + Thermal Sensor (optional)
C : Conformal coating (optional)
