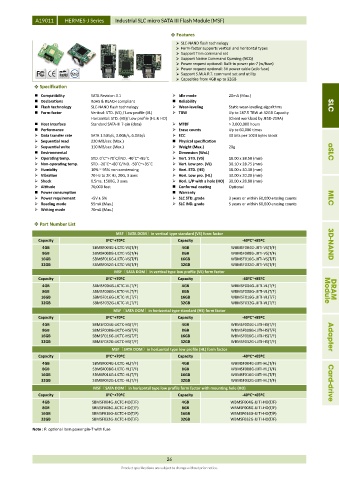

A19011 HERMES-J Series Industrial SLC micro SATA III Flash Module (MSF)

 Features
 SLC-NAND flash technology
 Form-factor supports vertical and horizontal types
 Support Trim command set
 Support Native Command Queuing (NCQ)
 Power request optional: Built-in power pin-7 (w/fuse)
 Power request optional: 5V power cable (w/o fuse)
 Support S.M.A.R.T. command set and utility
 Capacities from 4GB up to 32GB
 Specification
 Compatibility SATA Revision 3.1  Idle mode 20mA (Max.)
 Declarations RoHS & REACH compliant  Reliability
 Flash technology SLC-NAND flash technology  Wear-leveling Static wear-leveling algorithms SLC
 Form-factor Vertical: STD. (VS) / Low profile (VL)  TBW Up to 187.5 TBW at 32GB Capacity
Horizontal: STD. (HS)/ Low profile (HL & HO) (Client workload by JESD-219A)
 Host Interface Standard SATA-III 7-pin (data)  MTBF > 3,000,000 hours
 Performance  Erase counts Up to 60,000 times
 Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s  ECC 40 bits per 1024 bytes block
 Sequential read 220 MB/sec (Max.)  Physical specification
 Sequential write 110 MB/sec (Max.)  Weight (Max.) 20g
 Environmental  Dimension (WxL) aSLC
 Operating temp. STD. 0˚C~+70˚C/IND. -40˚C~+85˚C  Vert. STD. (VS) 18.00 x 38.50 (mm)
 Non-operating temp. STD. -20˚C~+80˚C/IND. -50˚C~+95˚C  Vert. Low pro. (VL) 30.10 x 28.75 (mm)
 Humidity 10% ~ 95% non-condensing  Hori. STD. (HS) 18.00 x 30.30 (mm)
 Vibration 70 Hz to 2K Hz, 20G, 3 axes  Hori. Low pro. (HL) 30.00 x 20.08 (mm)
 Shock 0.5ms, 1500G, 3 axes  Hori. L/P with a hole (HO) 30.00 x 28.80 (mm)
 Altitude 70,000 feet  Conformal coating Optional
 Power consumption  Warranty
 Power requirement +5V ± 5%  SLC STD. grade 3 years or within 60,000 erasing counts MLC
 Reading mode 55mA (Max.)  SLC IND. grade 5 years or within 60,000 erasing counts
 Writing mode 70mA (Max.)

 Part Number List

MSF€SATA DOMin vertical type standard (VS) form factor
Capacity 0ºC~+70ºC Capacity -40ºC~+85ºC
4GB SBMSF004G-JJCTC-VS(T/F) 4GB WBMSF004G-JJITI-VS(T/F) 3D-NAND
8GB SBMSF008G-JJCTC-VS(T/F) 8GB WBMSF008G-JJITI-VS(T/F)
16GB SBMSF016G-JJCTC-VS(T/F) 16GB WBMSF016G-JJITI-VS(T/F)
32GB SBMSF032G-JJCTC-VS(T/F) 32GB WBMSF032G-JJITI-VS(T/F)
MSF€SATA DOMin vertical type low profile (VL) form factor
Capacity 0ºC~+70ºC Capacity -40ºC~+85ºC
4GB SBMSF004G-JJCTC-VL(T/F) 4GB WBMSF004G-JJITI-VL(T/F)
8GB SBMSF008G-JJCTC-VL(T/F) 8GB WBMSF008G-JJITI-VL(T/F) Module DRAM
16GB SBMSF016G-JJCTC-VL(T/F) 16GB WBMSF016G-JJITI-VL(T/F)
32GB SBMSF032G-JJCTC-VL(T/F) 32GB WBMSF032G-JJITI-VL(T/F)
MSF€SATA DOMin horizontal type standard (HS) form factor
Capacity 0ºC~+70ºC Capacity -40ºC~+85ºC
4GB SBMSF004G-JJCTC-HS(T/F) 4GB WBMSF004G-JJITI-HS(T/F)
8GB SBMSF008G-JJCTC-HS(T/F) 8GB WBMSF008G-JJITI-HS(T/F)
16GB SBMSF016G-JJCTC-HS(T/F) 16GB WBMSF016G-JJITI-HS(T/F) Adapter
32GB SBMSF032G-JJCTC-HS(T/F) 32GB WBMSF032G-JJITI-HS(T/F)
MSF€SATA DOMin horizontal type low profile (HL) form factor
Capacity 0ºC~+70ºC Capacity -40ºC~+85ºC
4GB SBMSF004G-JJCTC-HL(T/F) 4GB WBMSF004G-JJITI-HL(T/F)
8GB SBMSF008G-JJCTC-HL(T/F) 8GB WBMSF008G-JJITI-HL(T/F)
16GB SBMSF016G-JJCTC-HL(T/F) 16GB WBMSF016G-JJITI-HL(T/F)
32GB SBMSF032G-JJCTC-HL(T/F) 32GB WBMSF032G-JJITI-HL(T/F) Card-drive
MSF€SATA DOMin horizontal type low profile form factor with mounting hole (HO)
Capacity 0ºC~+70ºC Capacity -40ºC~+85ºC
4GB SBMSF004G-JJCTC-HO(T/F) 4GB WBMSF004G-JJITI-HO(T/F)
8GB SBMSF008G-JJCTC-HO(T/F) 8GB WBMSF008G-JJITI-HO(T/F)
16GB SBMSF016G-JJCTC-HO(T/F) 16GB WBMSF016G-JJITI-HO(T/F)
32GB SBMSF032G-JJCTC-HO(T/F) 32GB WBMSF032G-JJITI-HO(T/F)

Note : F: optional item power pin-7 with fuse
