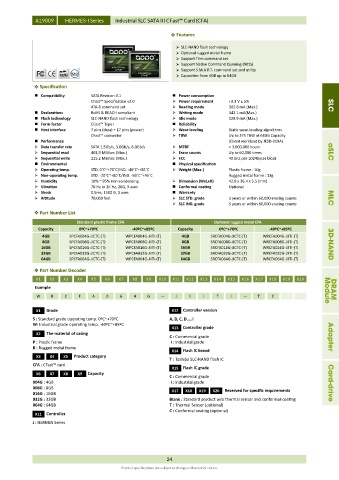

A19009 HERMES-I Series Industrial SLC SATA III CFast™ Card (CFA)

 Features

 SLC-NAND flash technology
 Optional rugged metal frame
 Support Trim command set
 Support Native Command Queuing (NCQ)
 Support S.M.A.R.T. command set and utility
 Capacities from 4GB up to 64GB
 Specification
 Compatibility SATA Revision 3.1  Power consumption
CFast™ Specification v2.0  Power requirement +3.3 V ± 5%
ATA-8 command set  Reading mode 305.8 mA (Max.) SLC
 Declarations RoHS & REACH compliant  Writing mode 342.1 mA(Max.)
 Flash technology SLC-NAND flash technology  Idle mode 128.9 mA (Max.)
 Form-factor CFast™ Type I  Reliability
 Host Interface 7 pins (data) + 17 pins (power)  Wear-leveling Static wear-leveling algorithms
CFast™ connector  TBW Up to 375 TBW at 64GB Capacity
 Performance (Client workload by JESD-219A)
 Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s  MTBF > 3,000,000 hours
 Sequential read 401.9 MB/sec (Max.)  Erase counts Up to 60,000 times aSLC
 Sequential write 215.2 MB/sec (Max.)  ECC 40 bits per 1024bytes block
 Environmental  Physical specification
 Operating temp. STD. 0˚C~+70˚C/IND. -40˚C~+85˚C  Weight (Max.) Plastic frame : 10g
 Non-operating temp. STD. -20˚C~+80˚C/IND. -50˚C~+95˚C Rugged metal frame : 13g
 Humidity 10% ~ 95% non-condensing  Dimension (WxLxH) 42.8 x 36.4 x 3.5 (mm)
 Vibration 70 Hz to 2K Hz, 20G, 3 axes  Conformal coating Optional
 Shock 0.5ms, 1500 G, 3 axes  Warranty
 Altitude 70,000 feet  SLC STD. grade 3 years or within 60,000 erasing counts MLC
 SLC IND. grade 5 years or within 60,000 erasing counts
 Part Number List
Standard plastic frame CFA Optional rugged metal CFA
Capacity 0ºC~+70ºC -40ºC~+85ºC Capacity 0ºC~+70ºC -40ºC~+85ºC
4GB SPCFA004G-JICTC-(T) WPCFA004G-JIITI-(T) 4GB SRCFA004G-JICTC-(T) WRCFA004G-JIITI-(T)
8GB SPCFA008G-JICTC-(T) WPCFA008G-JIITI-(T) 8GB SRCFA008G-JICTC-(T) WRCFA008G-JIITI-(T)
16GB SPCFA016G-JICTC-(T) WPCFA016G-JIITI-(T) 16GB SRCFA016G-JICTC-(T) WRCFA016G-JIITI-(T) 3D-NAND
32GB SPCFA032G-JICTC-(T) WPCFA032G-JIITI-(T) 32GB SRCFA032G-JICTC-(T) WRCFA032G-JIITI-(T)
64GB SPCFA064G-JICTC-(T) WPCFA064G-JIITI-(T) 64GB SRCFA064G-JICTC-(T) WRCFA064G-JIITI-(T)

 Part Number Decoder
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example Module DRAM
W R C F A 0 6 4 G J I I T I T C

X1 Grade X12 Controller version
S : Standard grade operating temp. 0ºC~+70ºC A, B, C, D…..I
W: Industrial grade operating temp. -40ºC~+85ºC
X13 Controller grade
X2 The material of casing
C : Commercial grade Adapter
P : Plastic frame I : Industrial grade
R : Rugged metal frame
X14 Flash IC brand
X3 X4 X5 Product category
T : Toshiba SLC-NAND flash IC
CFA : CFast™ card
X15 Flash IC grade
X6 X7 X8 X9 Capacity
C : Commercial grade
004G : 4GB I : Industrial grade Card-drive
008G : 8GB X17 X18 X19 X20 Reserved for specific requirements
016G : 16GB
032G : 32GB Blank : Standard product w/o thermal sensor and conformal-coating
064G : 64GB T : Thermal Sensor (optional)
C : Conformal coating (optional)
X11 Controller
J : HERMES Series
