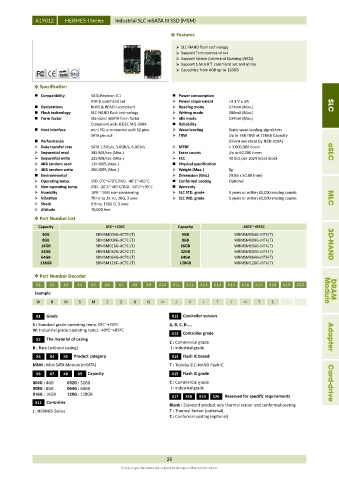

Page 35 - APRO_2019_Catalog

A19012 HERMES-I Series Industrial SLC mSATA III SSD (MSM)

 Features

 SLC-NAND flash technology
 Support Trim command set
 Support Native Command Queuing (NCQ)
 Support S.M.A.R.T. command set and utility
 Capacities from 4GB up to 128GB

 Specification
 Compatibility SATA Revision 3.1  Power consumption
ATA-8 command set  Power requirement +3.3 V ± 5%
 Declarations RoHS & REACH compliant  Reading mode 174mA (Max.) SLC
 Flash technology SLC-NAND flash technology  Writing mode 180mA (Max.)
 Form-factor Standard mSATA form factor  Idle mode 134mA (Max.)
Compliant with JEDEC MO-300A  Reliability
 Host Interface mini PCI-e connector with 52 pins  Wear-leveling Static wear-leveling algorithms
SATA pin out  TBW Up to 768 TBW at 128GB Capacity
 Performance (Client workload by JESD-219A)
 Data transfer rate SATA 1.5Gb/s, 3.0Gb/s, 6.0Gb/s  MTBF > 3,000,000 hours
 Sequential read 385 MB/sec (Max.)  Erase counts Up to 60,000 times aSLC
 Sequential write 225 MB/sec (Max.)  ECC 40 bits per 1024 bytes block
 4KB random read 12K IOPS (Max.)  Physical specification
 4KB random write 20K IOPS (Max.)  Weight (Max.) 8g
 Environmental  Dimension (WxL) 29.85 x 50.80 (mm)
 Operating temp. STD. 0˚C~+70˚C/IND. -40˚C~+85˚C  Conformal coating Optional
 Non-operating temp. STD. -20˚C~+80˚C/IND. -50˚C~+95˚C  Warranty
 Humidity 10% ~ 95% non-condensing  SLC STD. grade 3 years or within 60,000 erasing counts
 Vibration 70 Hz to 2K Hz, 20G, 3 axes  SLC IND. grade 5 years or within 60,000 erasing counts MLC
 Shock 0.5ms, 1500 G, 3 axes
 Altitude 70,000 feet
 Part Number List
Capacity 0ºC~+70ºC Capacity -40ºC~+85ºC
4GB SBMSM004G-JICTC-(T) 4GB WBMSM004G-JIITI-(T)
8GB SBMSM008G-JICTC-(T) 8GB WBMSM008G-JIITI-(T)
16GB SBMSM016G-JICTC-(T) 16GB WBMSM016G-JIITI-(T) 3D-NAND
32GB SBMSM032G-JICTC-(T) 32GB WBMSM032G-JIITI-(T)
64GB SBMSM064G-JICTC-(T) 64GB WBMSM064G-JIITI-(T)
128GB SBMSM128G-JICTC-(T) 128GB WBMSM128G-JIITI-(T)

 Part Number Decoder
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16 X17 X18 X19 X20
Example Module DRAM
W B M S M 1 2 8 G J I I T I T C

X1 Grade X12 Controller version
S : Standard grade operating temp. 0ºC~+70ºC A, B, C, D…..
W: Industrial grade operating temp. -40ºC~+85ºC
X13 Controller grade
X2 The material of casing Adapter
C : Commercial grade
B : Bare (without casing) I : Industrial grade
X3 X4 X5 Product category X14 Flash IC brand
MSM : Mini SATA Module (mSATA) T : Toshiba SLC-NAND flash IC
X6 X7 X8 X9 Capacity X15 Flash IC grade
004G : 4GB 032G : 32GB C : Commercial grade Card-drive
008G : 8GB 064G : 64GB I : Industrial grade
016G : 16GB 128G : 128GB X17 X18 X19 X20 Reserved for specific requirements
X11 Controller Blank : Standard product w/o thermal sensor and conformal-coating
J : HERMES Series T : Thermal Sensor (optional)
C : Conformal coating (optional)

28
Product specifications are subject to change without prior notice.
